Customized Wire Stripping and Waterproof Seal Insertion Crimping Machine With Computer Display

  • Model:KS-T5251C
  • Net. Weight:
  • Dimension:

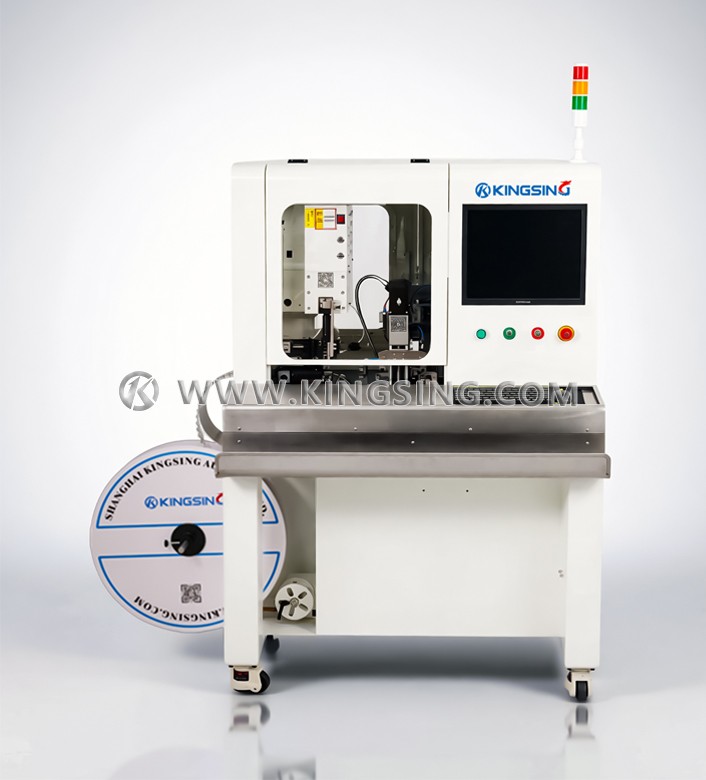

KS-T5251C is a semi-automatic wire stripping and waterproof seal crimping machine, it is able to strip the wire, insert the waterproof seal and crimp terminal automatically, the operator only needs to put the wire into the working area and step on the foot pedal switch, then it will perform the wire stripping, seal insertion and terminal crimping process automatically. Optional computer industrial control system, the stripping and crimping parameters can be adjusted and saved in the program automatically.

  • Stable performance and low failures;

  • Reasonable space design and centralized functions;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Modularized structure design and mature controlling system;

  • Built-in motor, beautiful appearance, equipped with universal casters, easy to move;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Stable work, large output, and overload protection function;

  • Low noise, low energy consumption, no pollution, and small floor space;

  • High-precision servo motor, machine control is more accurate and stable, and the service life is longer;

  • The stripping and crimping parameters can be adjusted in the program, saving the debugging time;

  • The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program, for example, the function of inserting waterproof seal can be closed;

  • When replacing wires and terminals, it is only necessary to replace the corresponding crimping applicator and corresponding penetration fixtures;

  • The whole machine has strong rigidity and stable crimping height. Optional terminal pressure monitor can be equipped to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop;

  • Optional visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality;

  • With program memory function, if the terminal and wire need to be changed, you only need to switch to the corresponding program number, no need to adjust repeatedly, increase the work efficiency;

  • Optional computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions;

  • The machine body is made of high-strength thick steel plate with precise dimensions to ensure the stability of crimping;

  • With the functions of cover opening detection, terminal crimping detection, low air pressure detection, etc.

Download: (1) (2)

Applicable Wire Diameter: AWG24~13 (0.3~2.5mm²)

Function: Wire stripping, waterproof insertion and terminal crimping

Capacity: 1200pcs/hour

Stripping Length: ≤10mm (can be customized)

Crimping Force: Standard 2T

Crimping Stroke: 30mm (40mm stroke model can be customized)

Rated Power: 3000W

Display Mode: Computer industrial control system

Control Mode: MSP430E microcontroller, 165NA/MIPS working mode, 5US standby wake-up, high-speed computing

Work Voltage: AC220V/50Hz Single Phase

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Net Weight: 350KG

Dimension (L×W×H): 1350*1110*1800mm

Detection Device: 1. Air pressure detection 2. Door opening detection 3. Terminal crimping detection 4. Material loading detection 5. Total quantity reached 6. Batch quantity reached

Optional Parts: 1.OTP applicator and blades 2. Crimping force monitor 3. Visual inspection system 4. Computer industrial control system 5. Protective cover


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
