Automatic Multi-wire Continuous Combination Crimping Machine

  • Model:KS-A299C
  • Net. Weight:
  • Dimension:

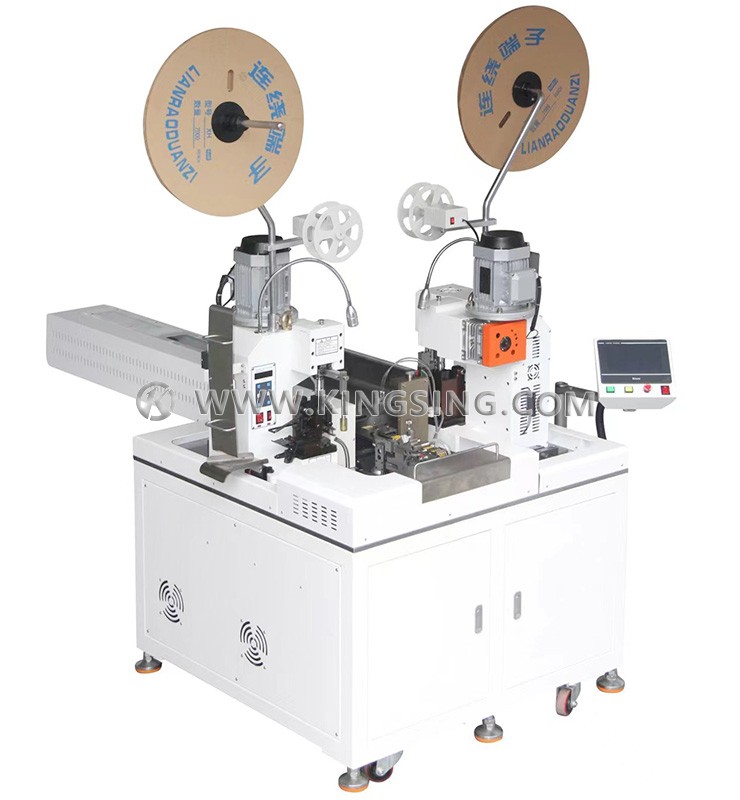

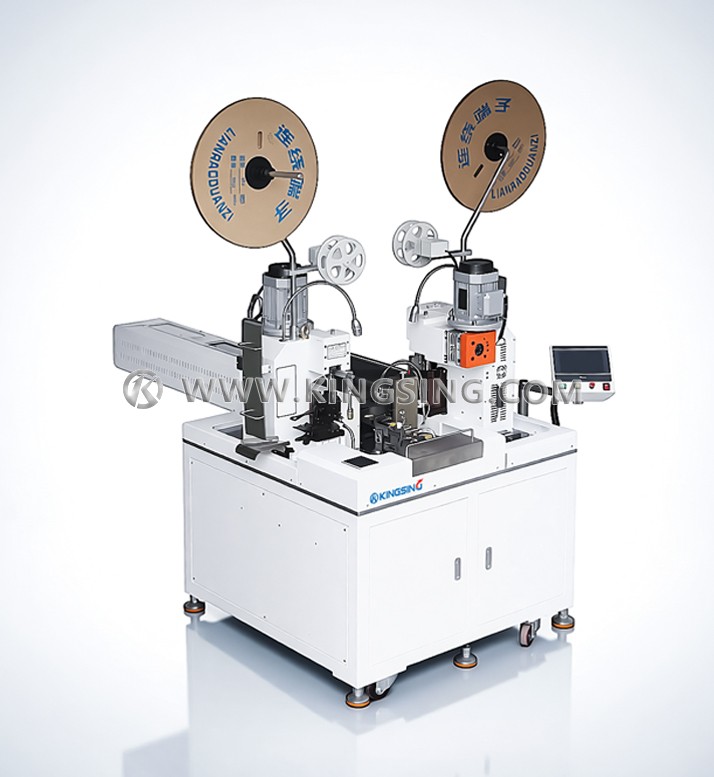

This is a fully automatic continuous double-fold combination crimping machine, which can feed more than 10 wires at the same time, can crimp every 2 wires into one terminal, and supports crimping 2 different types of terminals. This machine uses a total of 6 sets of servo motors. The wire cutting and stripping and translation mechanisms are driven by high-precision servo motors. The cutter adopts a forward and reverse screw structure with high peeling accuracy. The terminal crimping machine is integrally formed of ductile iron, with strong rigidity and stable crimping height.

Adopting the concept of modular flexible design, one machine can easily process many different products, and it can also be used as an ordinary double-head automatic terminal machine with the function of closing and opening. When replacing a terminal, only the corresponding crimping die needs to be replaced. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

KINGSING

Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time.

Download: (1) (2)

Applicable wire diameter: AWG28~16 (0.1~1.5mm2)

Cutting length: 60~1200mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: cross-feed terminals, straight-feed terminals

Operation interface: color touch screen

Air pressure: 0.5~0.8Mpa

Rated power: 2000W

Working voltage: 220V 50/60Hz (110V can be customized)

Net weight: 460kg

Dimensions: 2100*1300*1420mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
