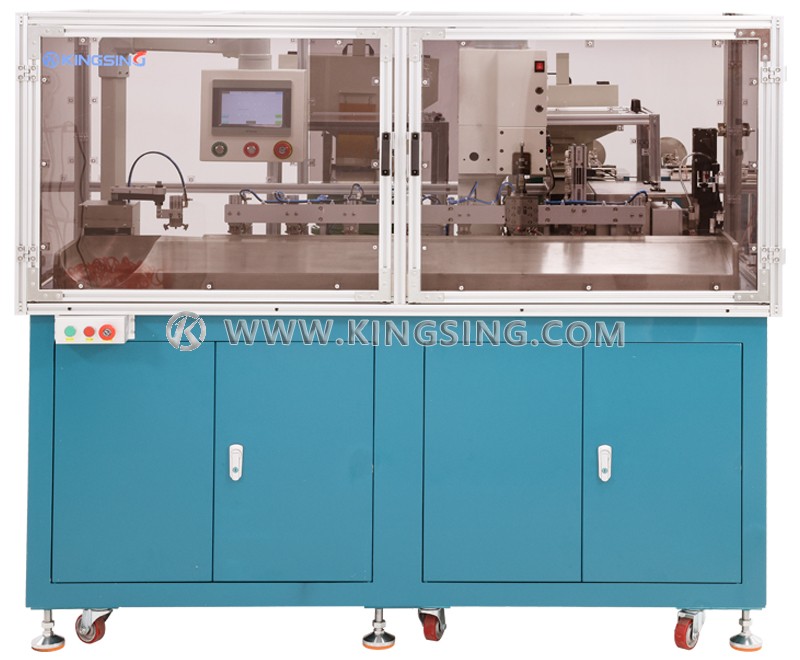

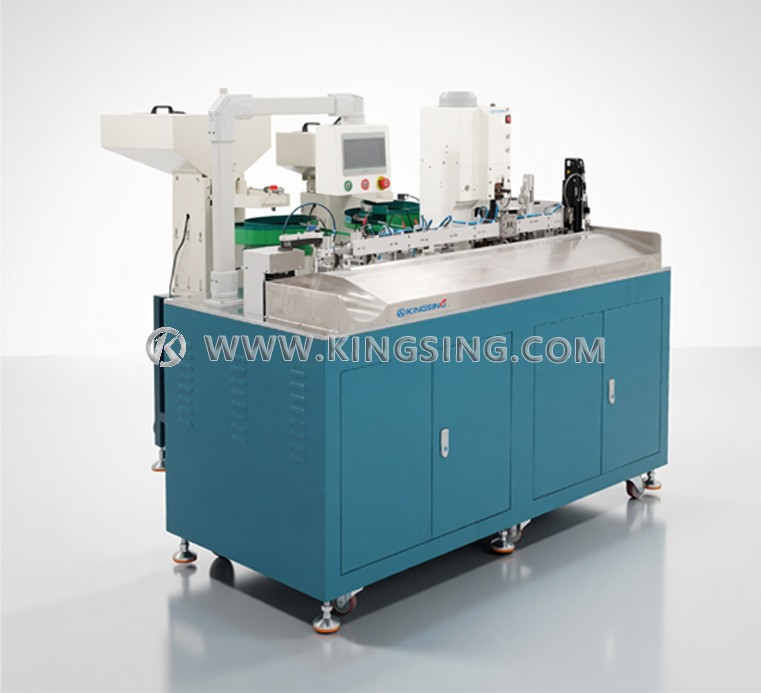

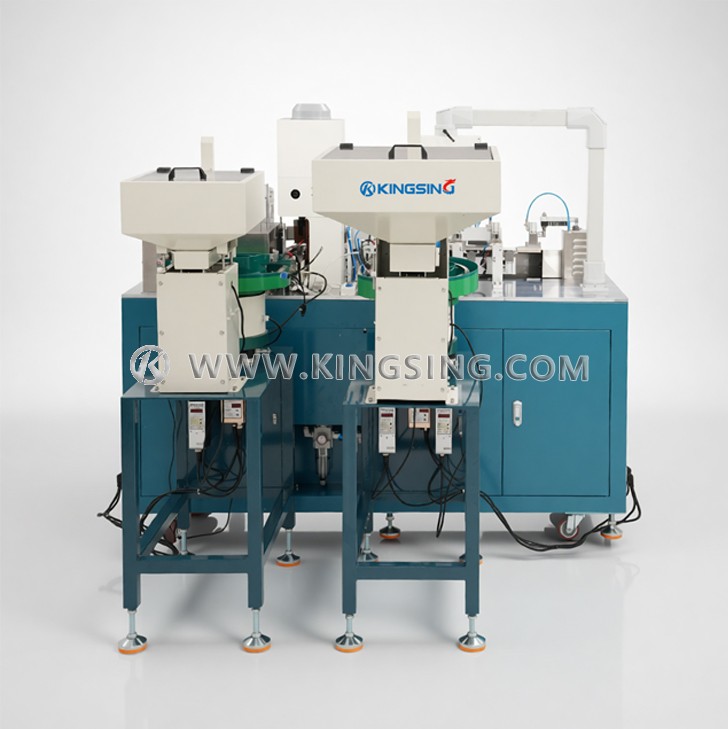

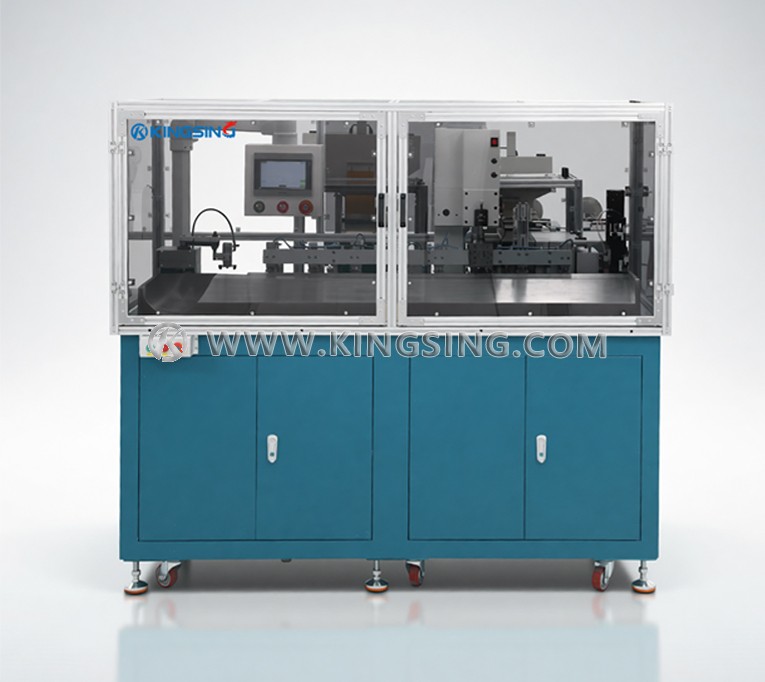

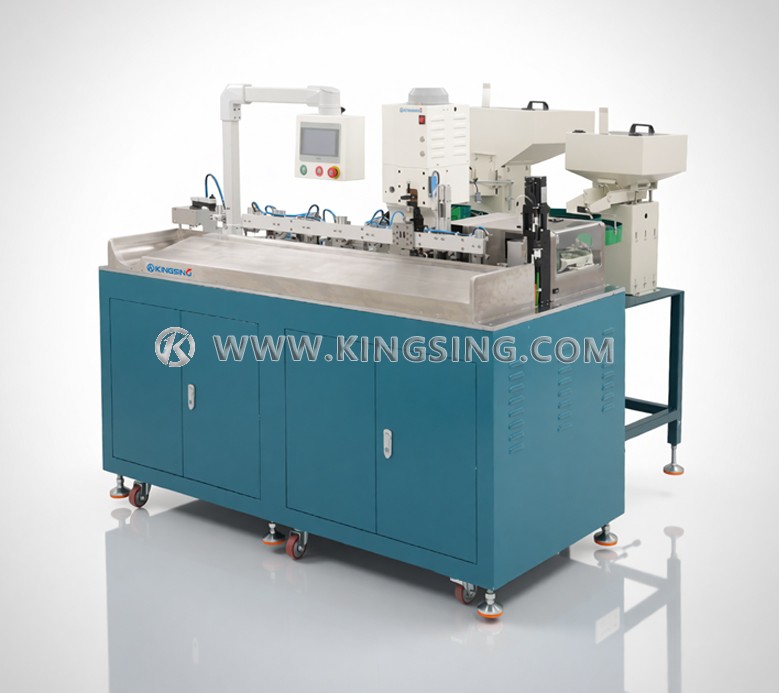

Thermal Protector Crimping and Shrink Tube Inserting Machine

  • Model:KS-T1012H
  • Net. Weight:
  • Dimension:

KS-T1012H is a fully automatic temperature controller riveting heat shrinkable tube production line, which supports simultaneous processing of 2 wires. After cutting and stripping the wires, it is automatically riveted to the pins of the temperature controller. Both the thermostat and the heat-shrinkable tube are automatically fed through the vibrating plate. After the riveting is completed, the heat-shrinkable tube is automatically inserted, and finally it is automatically heated and shrunk in place, realizing the fully automatic production of the thermostat. The workmanship of the whole machine is precise, and the moving parts such as wire feeding, stripping, and translation are all driven by high-precision servo motors, with precise positioning, and can accurately control the riveting position and the position of the heat shrinkable tube. Color touch screen operation interface, cutting line length, stripping length, riveting position and other parameters can be set freely.

  • Built-in motor, beautiful appearance, equipped with universal casters, easy to move;

  • Stable work, large output, and overload protection function;

  • Low noise, low energy consumption, no pollution, and small floor space;

  • High-precision servo motor, machine control is more accurate and stable, and the service life is longer;

  • It adopts vibration disk feeding mode to ensure the feeding stability of the loose terminals;

  • 7-inch touch screen, digital and graphical control interface, more intuitive;

  • The machine body is made of high-strength thick steel plate with precise dimensions to ensure the stability of crimping;

  • With the functions of lack of wire detection, safety door detection, low air pressure detection, etc.

Download: (1)

Function: Wire cutting, stripping, terminal crimping, heat shrink tube insertion and heat shrinking.

Number of Wires: 2 incoming wires at the same time

Wire Diameter: 0.1~2.0mm² (AWG#28~AWG#14)

Cutting Length: 50~9999mm (can be customized)

Stripping Length: ≤10mm (can be customized)

Cutting Accuracy: +-(0.5+Length×0.2%) L=cutting length

Crimping Force: Standard 2TON

Crimping Stroke: 30mm (40mm can be customized)

Capacity: Around 2500~3500 PCS/Hour

Machine Power: 3KW

Display Mode: 7-inch high-definition LCD color touch screen

Control Mode: STM32 microcontroller, 165NA/MIPS working mode, 5US standby wake-up, high-speed computing

Work Voltage Standard: AC220V/50Hz Single Phase (Other voltage can be customized)

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Net Weight: 500KG

Dimension (L×W×H): 1800×1340×1600mm

Detection Device: 1.Lack of wire 2. Terminal detection 3. Safety cover is opened 4. Machine is abnormal 5. Total quantity reached

Optional Parts: 1.Applicator and blades 2. Vertical wire pre-feeder 3. Reel type wire pre-feeder 4. Long wire conveyor belt 5. Crimping force monitor 6. Safety Cover



  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
