Dual Wire Thermal Protector Assembly Machine

  • Model：KS-A902
  • Net. Weight：
  • Dimension：
Online Inquiry

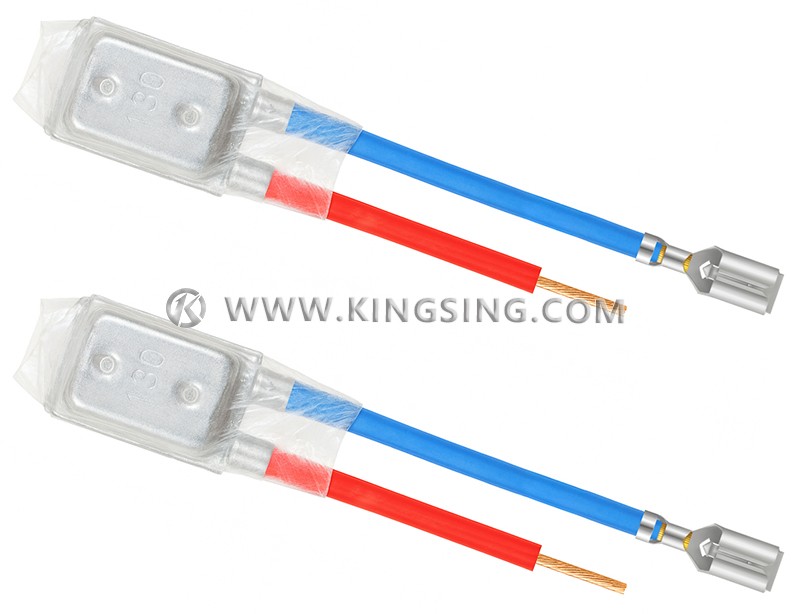

This advanced thermal protector crimping machine is specifically engineered for high-precision riveting of thermal protectors with electrical wires in industrial manufacturing environments. The machine features two independent wire feeding mechanisms that enable simultaneous processing of different wire types, with individually adjustable cutting lengths for maximum flexibility.

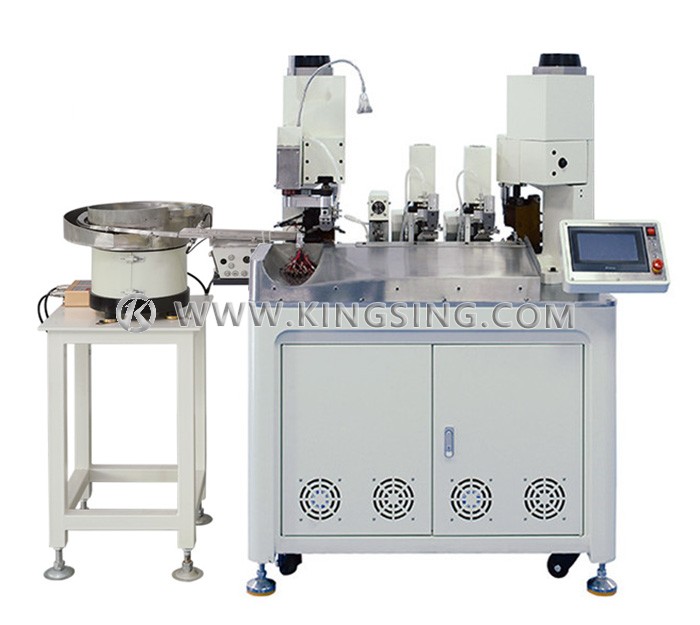

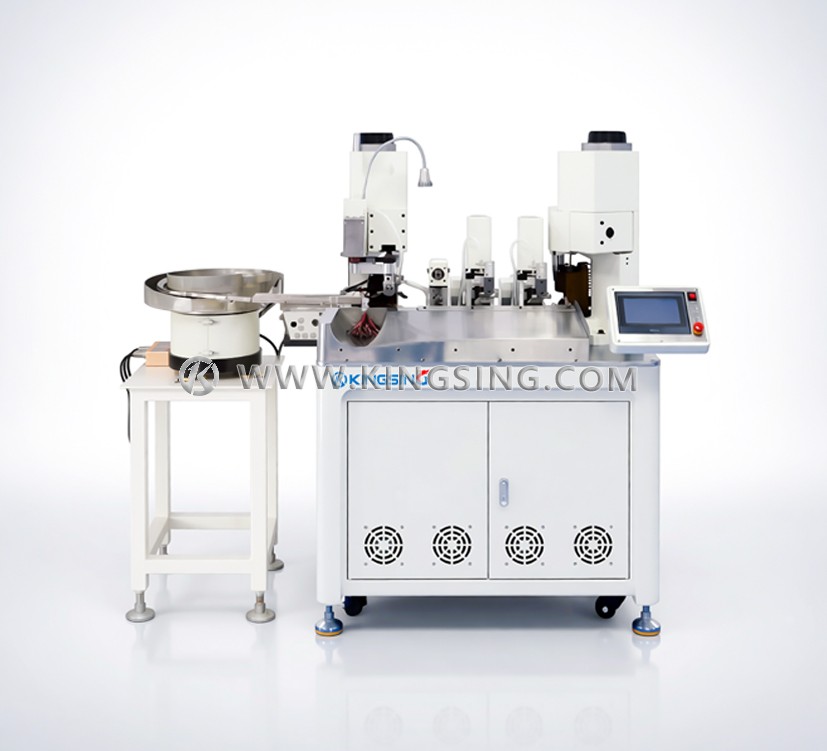

The automated system incorporates a vibrating disc feeder for consistent thermal protector supply, ensuring seamless integration into high-volume production lines. Each wire undergoes precise cutting and stripping operations before being crimped to the thermal protector, with options for full stripping or half stripping on the opposite end.

Designed for versatility, the machine supports terminal attachment on one wire while maintaining independent control over both wire processing paths. This dual-wire capability significantly enhances production efficiency and reduces manual labor requirements in electronics manufacturing and appliance assembly operations.

The intuitive color touch screen interface provides operators with easy program setup and monitoring capabilities, while the robust construction ensures reliable performance in demanding industrial environments. This machine is ideal for manufacturers requiring consistent, high-quality thermal protector assemblies with minimal operator intervention.

Download: (1)
Applicable Wire SizeAWG 28–14 (0.1–2.0 mm²)
Cutting Length50–9999 mm (customizable)
Stripping Length≤10 mm (customizable)
Cutting Accuracy±(0.5+L×2‰) L=cutting length
Crimping Force2 T
Crimping Stroke30 mm (40 mm stroke model available)
Production Efficiency2000–3000 pieces/hour
Operation InterfaceColor touch screen
Air Pressure0.5–0.8 MPa
Power Rating2300 W
Power Supply220 V 50/60 Hz (customizable)
Net Weight380 kg
Dimensions1200×800×2000 mm
Optional ConfigurationTerminal crimp force monitor, servo crimping station (programmable crimping height), conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, bulk terminal vibratory feeding system, customized solutions available upon request
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
