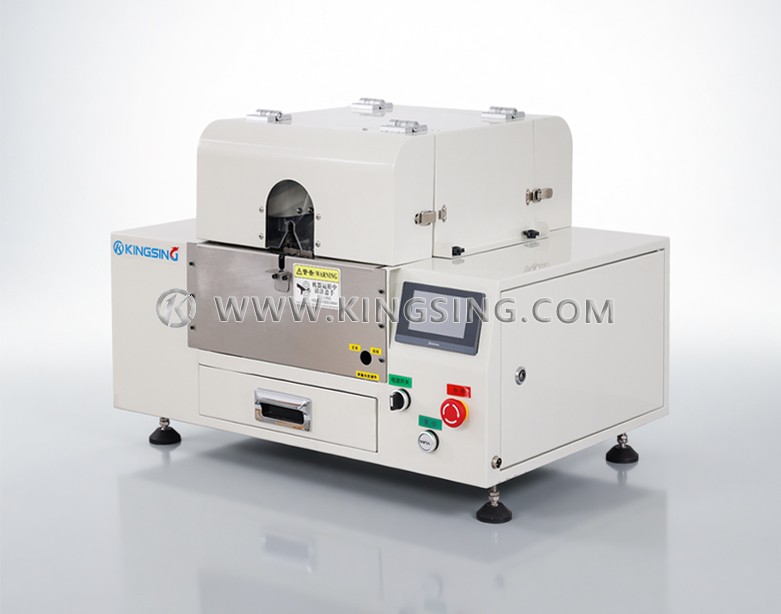

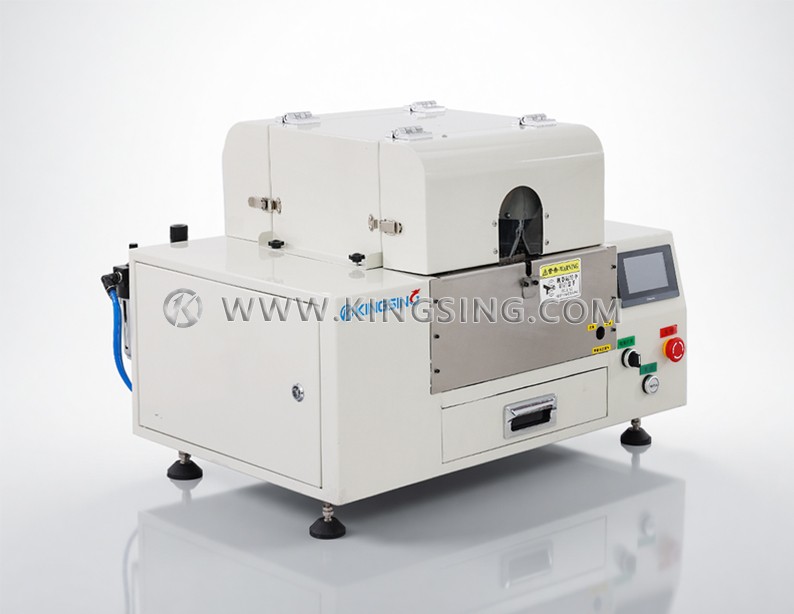

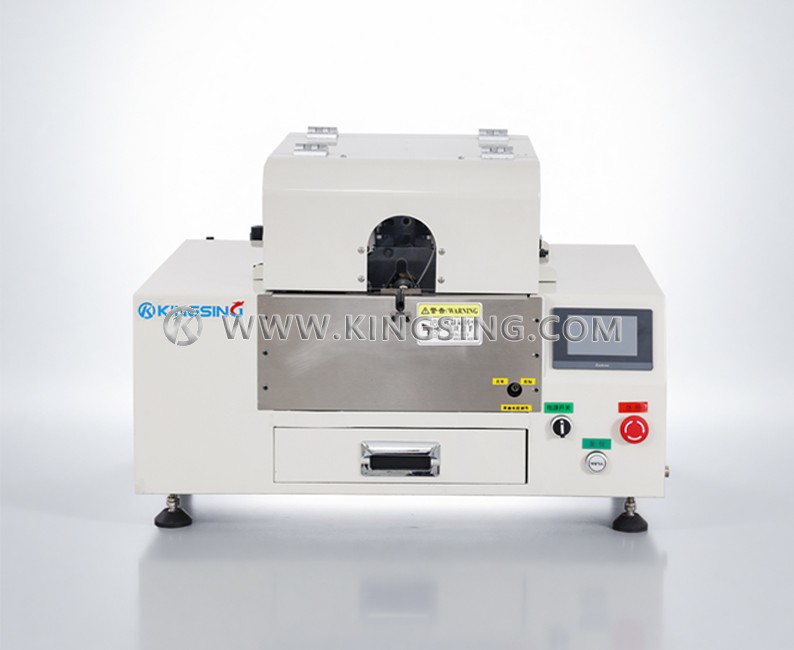

This is an automatic cable shield brushing cutting and turning over machine, the cable outside jacket needs to be stripped in advance, the operator only needs to put the cable head into the processing area, then it can automatically brush the shielding, cut it to the set length, and turn over the left shield. It's usually used for processing all kinds of data cables and power cables with braided shielding.
The braided shielding is cut off by a ring blade, and the cut surface is flat and neat. Color touch screen operation interface, the cutting length of the shield is adjustable.
| Parameter | Specification |
|---|---|
| Equipment Name | Braided Shield Brushing and Cutting Machine |
| Compatible Wire Outer Diameter (O.D.) | Φ2.5 - 8.0 mm (Customizable options available) |
| Shield Preservation (Retaining) Length | 3 - 8 mm |
| Shield Brushing (Combing) Length | 10 - 35 mm |
| Processing Capacity | Up to 800 pcs/hr (Subject to wire material and specific processing parameters) |
| Rated Power | 800 W |
| Power Supply | Standard AC 220V, 50/60 Hz (AC 110V configuration customizable upon request) |
| Pneumatic Supply | 0.5 - 0.7 MPa (Requires a clean, dry, and stable compressed air supply) |
| Operating Temperature Range | 0 - 40 °C |
| Operating Ambient Humidity | 30% - 80% RH (Non-condensing at 40 °C) |
| Physical Dimensions (L × W × H) | 750 × 520 × 516 mm |
| Net Weight | 145 kg |
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
