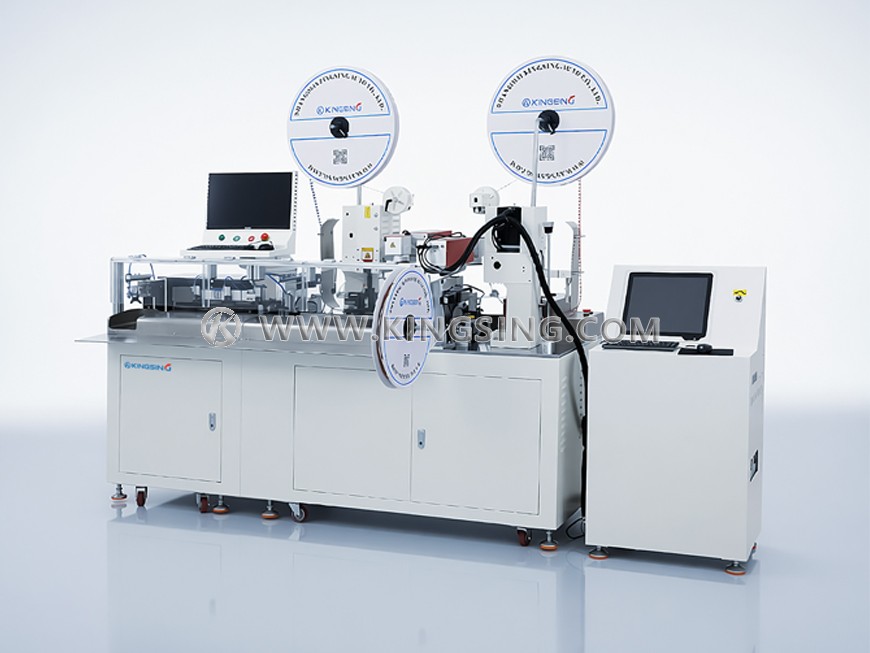

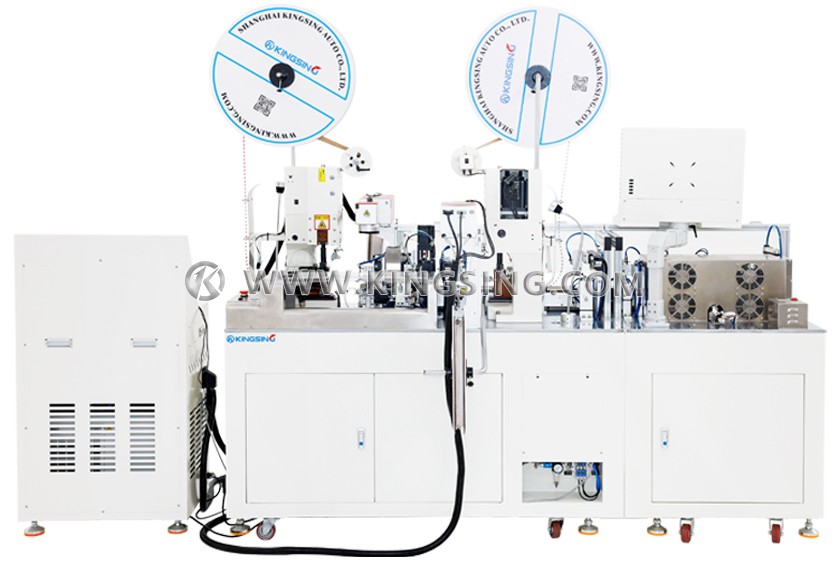

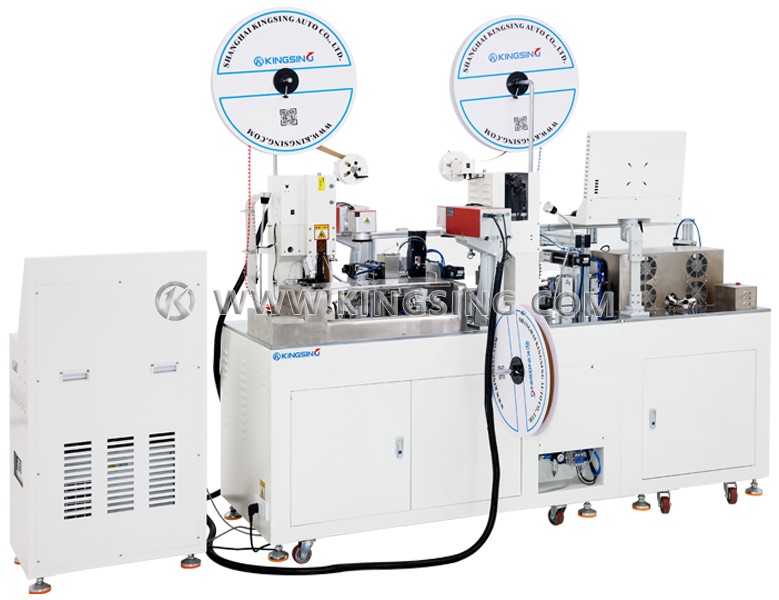

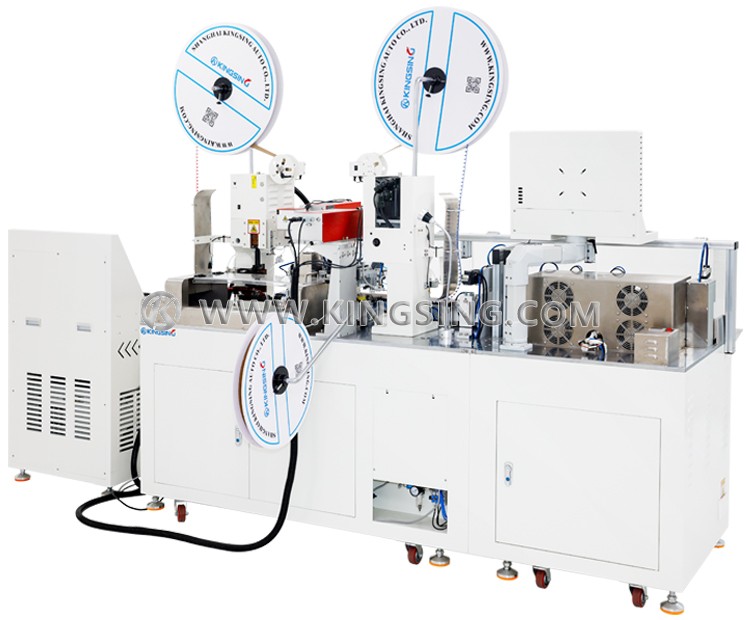

This advanced dual-head wire processing machine delivers comprehensive automation for efficient wire harness manufacturing, seamlessly integrating cutting, stripping, crimping, heat-shrink tube laser marking, tube insertion, and heat shrinking operations in a single platform. The innovative design features separate processing capabilities for wire head and tail ends, accommodating both short and long wire processing with cutting length capabilities ranging from 80 mm up to 10 meters.

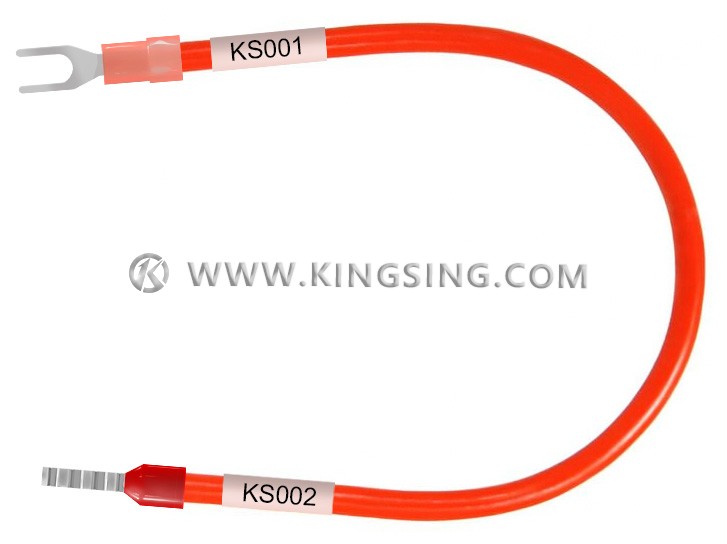

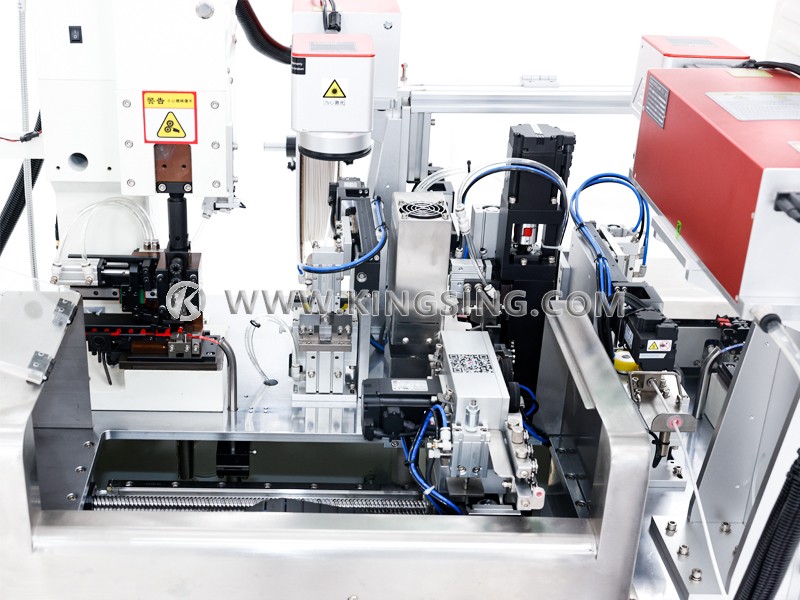

Equipped with dual laser marking systems, this machine enables precise coding on heat-shrink tubes at both ends, ensuring versatility across diverse production requirements. Operators can efficiently manage production configurations including wire cutting length, stripping length at both ends, heat shrink tube cutting length, marking content for both ends, and text direction through an intuitive Windows 11 interface with Excel import functionality.
This system supports batch processing capabilities, allowing operators to input different lengths and marking content information in Excel spreadsheets. The machine can process these wire specifications continuously without requiring mid-production stops, significantly minimizing setup time and maximizing production efficiency. Marking direction can also be defined in Excel spreadsheets, supporting both forward and reverse marking configurations for enhanced flexibility.
The advanced dual CCD vision system provides comprehensive quality assurance by inspecting tube insertions and crimp quality, while the integrated crimp force monitoring technology analyzes force curves for each crimped connection. The machine automatically rejects faulty units and halts production when discrepancies are detected, maintaining consistent quality standards throughout the manufacturing process.
| Applicable Wire Size | 0.3–6 mm² |
| Wire Cut Length | 80–9999 mm |
| Wire Strip Length | ≤14mm (customizable) |
| Tube Cut Length | 10–30 mm (customizable) |
| Cut Precision | ±0.5 mm + L × 0.2% |
| Crimping Capacity | 2.0 T |
| Operating Interface | Windows 11 industrial computer control system |
| Capacity | 800 ~ 1000 pcs/hour |
| Power Input | AC 220V 50/60Hz (customizable) |
| Air Supply | 0.6–0.8 MPa |
| Power Consumption | 3.5 kW |
| Number of Crimping Stations | 2 (customizable) |
| Crimping Station Type | Servo motor driven (crimping height programmable) |
| Laser Marking Stations | 2 laser marking machines |
| Laser Marking Limitation | Laser marking works best on white or light-colored heat shrink tubes. For black or dark-colored tubes, ribbon printing is recommended as laser marking shows poor visibility on dark surfaces. |
| Dimension | 1800 × 800 × 1860 mm |
| Optional Configuration | Terminal crimp force monitor, CCD vision inspection system, conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, bulk terminal vibratory feeding system, customized solutions available upon request |
