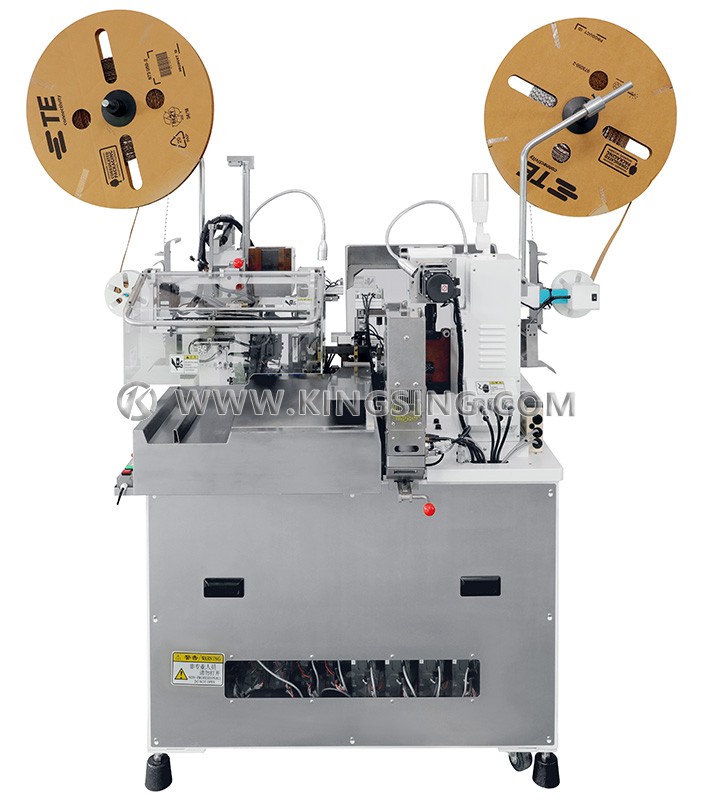

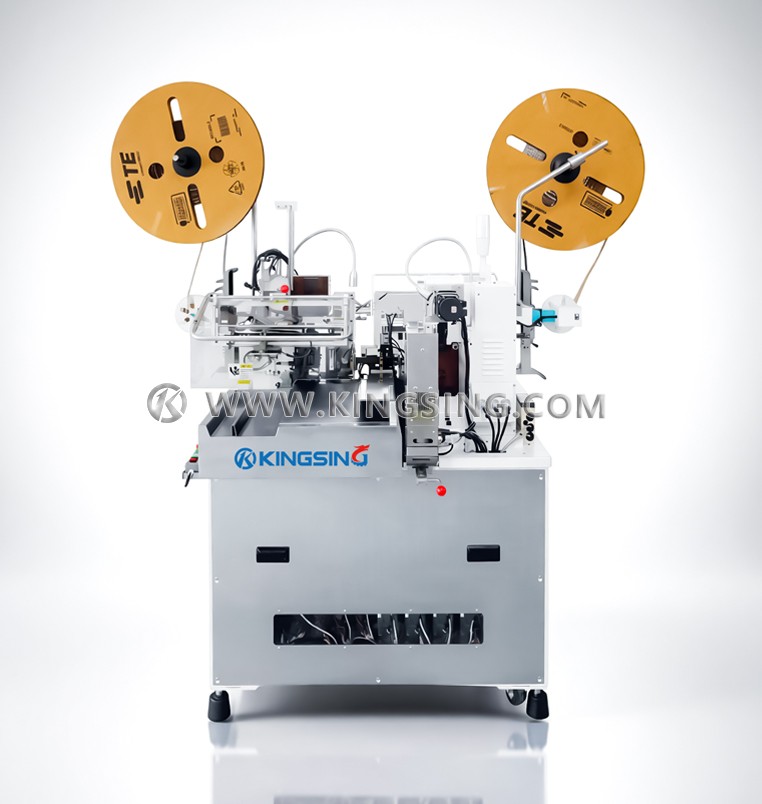

Automatic 2-sided Wire Sealing and Crimping Machine

  • Model:KS-T22
  • Net. Weight:
  • Dimension:

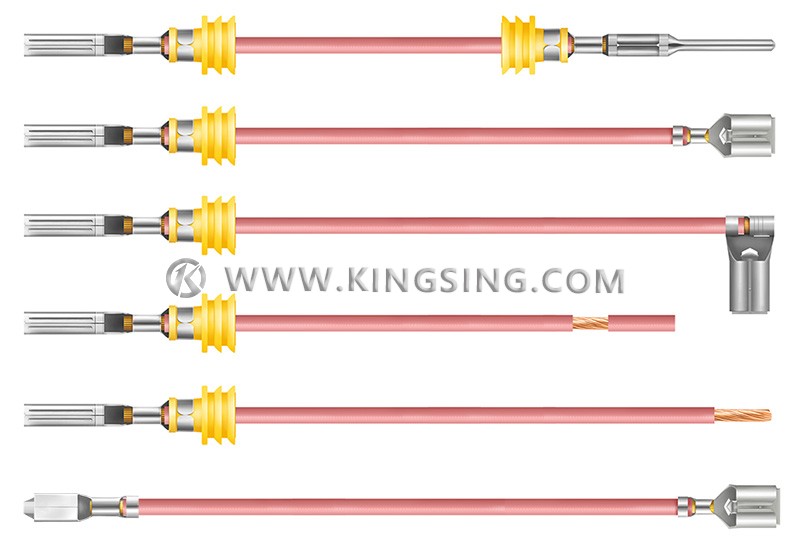

  1. This is a fully automatic double-sided waterproof seal insertion machine, which integrates functions such as wire cutting, wire stripping, waterproof seal insertion, and crimping terminals. The waterproof seal is automatically fed through the automatic feeding system. This machine adopts the method of inserting the waterproof seal first and then stripping the wire, which completely eliminates the possibility of the copper wire being overturned, and greatly improves the accuracy and stability of inserting the waterproof seal. When processing long wires, you can also choose a servo-type long wire conveyor belt, which can put the processed wires straight and neatly into the receiving tray.

  2. The workmanship of the whole machine is precise, and the wire feeding, stripping, translation and other mechanisms are all driven by servo motors, and the positioning is precise. The terminal crimping machine is also driven by a servo motor, and the body is integrally formed of ductile iron, which has strong rigidity and stable crimping height. A terminal pressure monitor can be selected to monitor the pressure curve changes of each crimping process in real time, and automatically alarm and stop when the pressure is abnormal. In addition, an OES laser profiler can also be selected to detect the stripping effect and the insertion position of the waterproof seal, and the defective products are automatically discharged.

  3. Adopting the concept of flexible design, one machine can process a variety of different products. When replacing the waterproof seal, you only need to replace the corresponding track fixture, and the product switching can be completed within a few minutes. Computer industrial control system, Windows operation interface, and program memory function can save the processing parameters of different products in the database. When switching products, the corresponding processing parameters can be called out with one key, saving debugging time.

Download: (1)

Main function: double-headed insertion waterproof seal crimping terminal

Applicable wire diameter: AWG28~16 (0.1~2.0mm2)

Stripping length: ≤15mm

Cutting length: 50~9999mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Terminal machine output: 2T

Crimp stroke: 30mm

Crimping Motor: Servo Motor

Operation interface: computer industrial control system

Production efficiency: 1500~2000 pieces/hour (double heads inserted into waterproof seals)

Air pressure: 0.5~0.8Mpa

Working voltage: 220V 50/60Hz

Rated power: 3000W

Net weight: 525kg

Dimensions: 1200*1100*2300mm

Optional functions: pressure monitor, laser profiler, long conveyor belt

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
