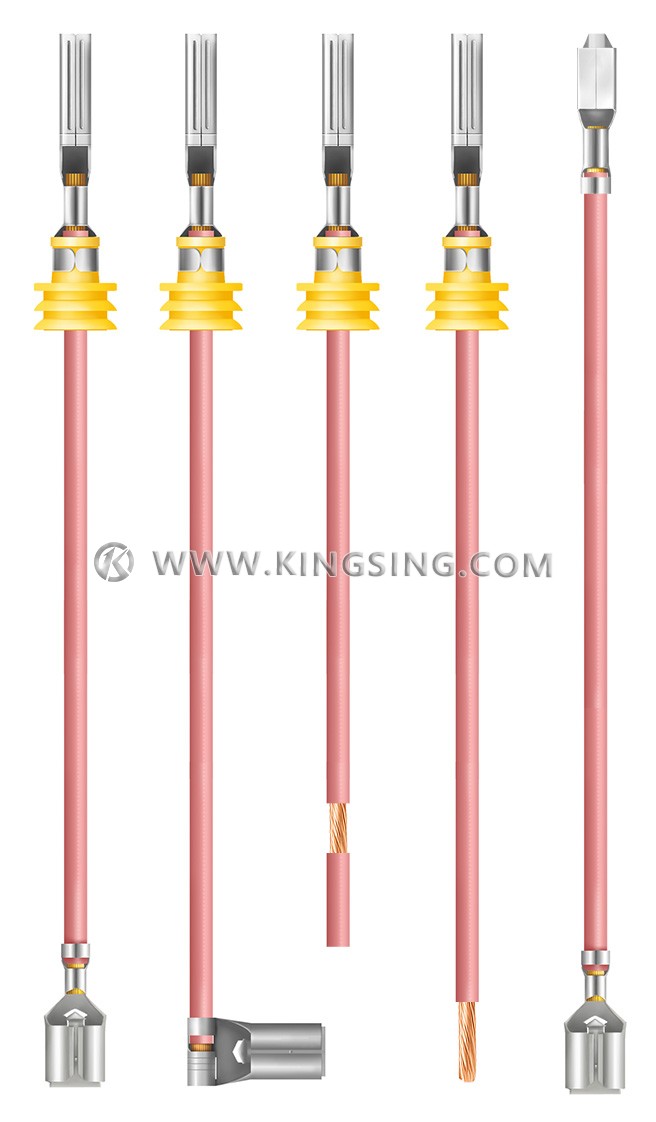

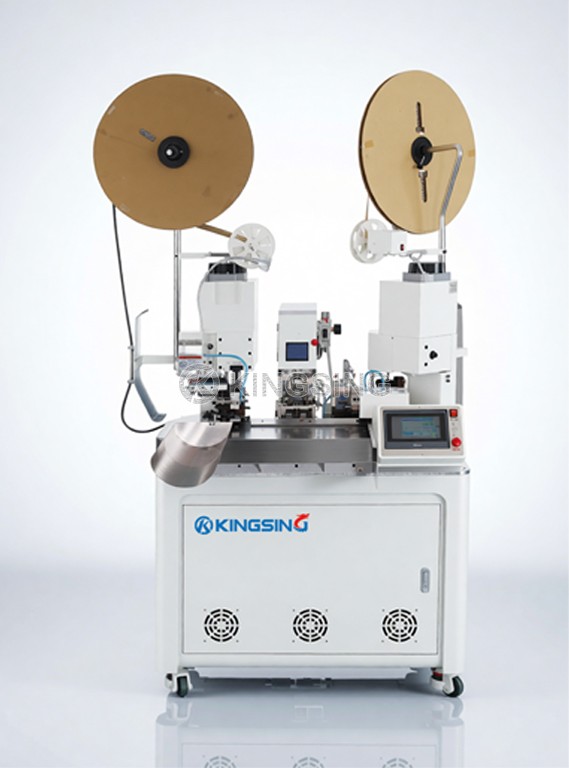

This economical double-sided crimping and single-head waterproof sealing machine integrates multiple functions including wire cutting, stripping, waterproof sealing, and terminal crimping into one efficient unit. The automatic feeding system ensures seamless waterproof plug installation, while the versatile design allows processing of various product types with quick changeover capabilities.
Built with nodular cast iron construction, this machine delivers exceptional rigidity and consistent crimping performance. The standard OTP bayonet mold system provides reliable terminal connections, with optional European applicator compatibility and crimping force monitoring for enhanced quality control and real-time process verification.
The intuitive color touch screen interface simplifies operation with easy parameter setting for cutting length, stripping length, waterproof plug positioning, and crimping parameters. Advanced program memory functionality stores processing parameters for different products, enabling one-key switching between production runs and maximizing operational efficiency.
Each functional module can be independently controlled through the program interface, offering flexibility to disable waterproof plug insertion when using the machine as a standard double-sided automatic terminal crimper. This adaptability makes it ideal for diverse wire harness manufacturing applications across automotive, electronics, and industrial sectors.
| Applicable Wire Diameter | 0.1~2mm² (AWG28~14) |
| Cutting Length | 50~9999mm |
| Stripping Length | ≤10mm |
| Cutting Tolerance | ±(0.5+L*2‰)mm (L=cutting length) |
| Crimping Force | 2T (3T model optional) |
| Crimp Stroke | 30mm (40mm stroke customizable) |
| Production Efficiency | 2000~3000 pieces/hour |
| Operation Interface | Color touch screen |
| Air Pressure | 0.5~0.7Mpa |
| Working Voltage | 220V 50/60Hz (customizable) |
| Net Weight | 440kg |
| Dimensions | 800*1000*1500mm |
| Optional Configuration | Terminal crimp force monitor, CCD vision inspection system, servo crimping station (programmable crimping height), conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, customized solutions available upon request |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
