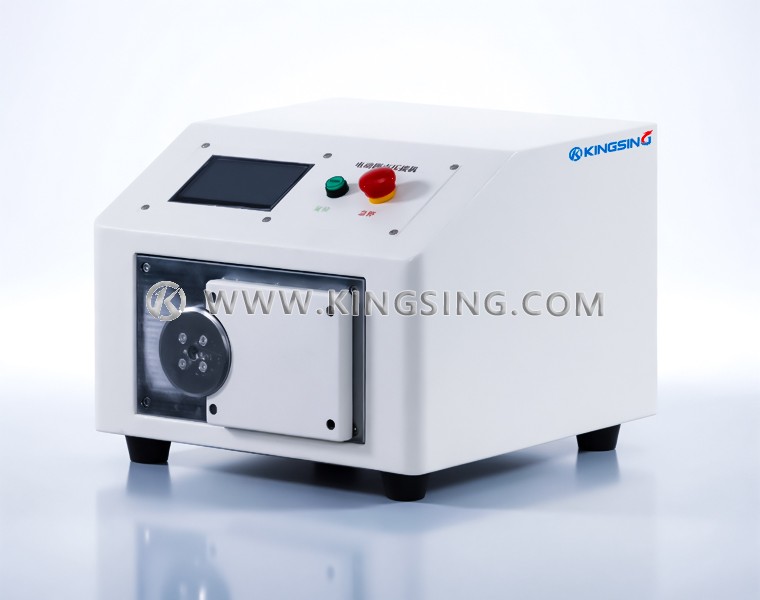

This four-point connector contact crimping machine is specifically engineered for circular connector contacts, delivering reliable connections through precise four-point circumferential compression of contact barrels. The machine ensures consistent, high-quality crimping performance for critical aerospace and industrial connector applications.
Featuring an intuitive touchscreen control system with foot switch operation, this electric crimping machine allows operators to set crimping parameters directly on the display. The integrated program storage and memory functions enable quick product changeovers by simply selecting the corresponding program number, eliminating repetitive adjustments and significantly boosting production efficiency.
Built with robust construction and reliable components, this machine offers exceptional value with its simple operation that requires minimal training. The MCU-controlled system with touchscreen interface provides precise control over the crimping process, while the program storage capability accommodates various pin and socket contact configurations.
Ideal for electronics assembly and industrial connector production where consistent, high-quality contact connections are essential. The machine's electric-only operation eliminates the need for compressed air systems, making it suitable for diverse production environments.
| Crimp Range | 0.1–4 mm² |
| Contact Length | 5–30 mm |
| Contact Size | Ф1.5–6 mm |
| Contact Thickness | < 0.7 mm |
| Crimping Force | 3.0 Ton |
| Power Supply | 220V 50Hz, 110V 60Hz |
| Power Rating | 500W |
| Operating System | Color touchscreen, English & Chinese |
| Program Storage | 10 groups |
| Crimp Blade Material | Die steel |
| Dimensions (L×W×H) | 330 × 350 × 240 mm |
| Net Weight | 24.5 kg |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
