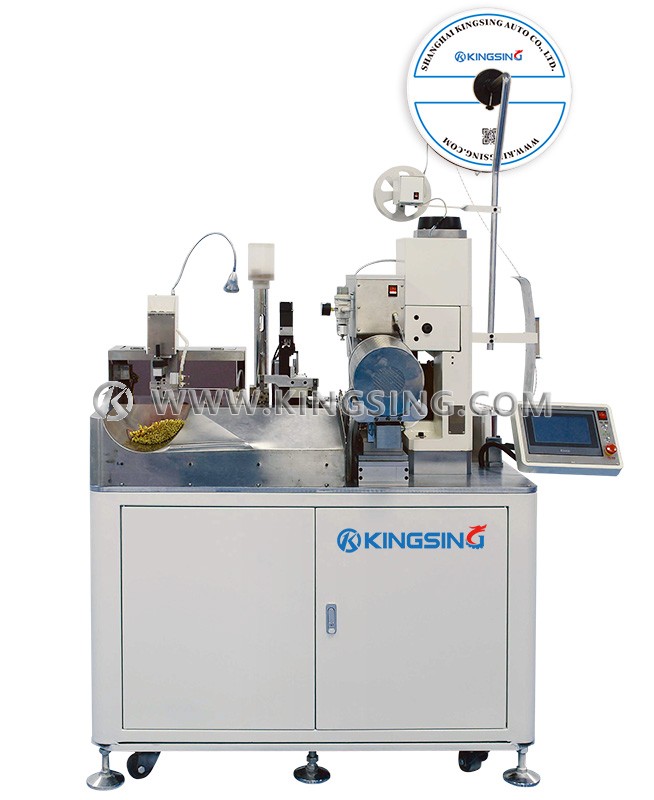

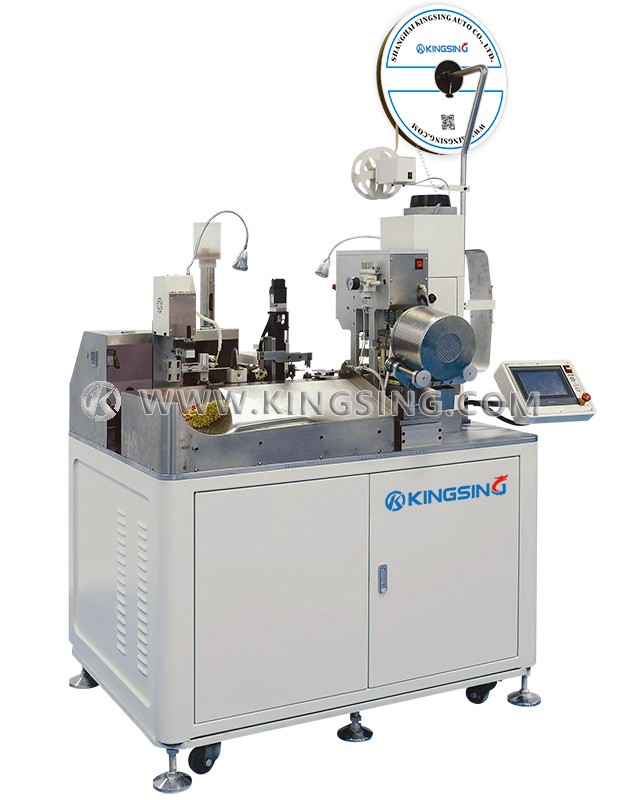

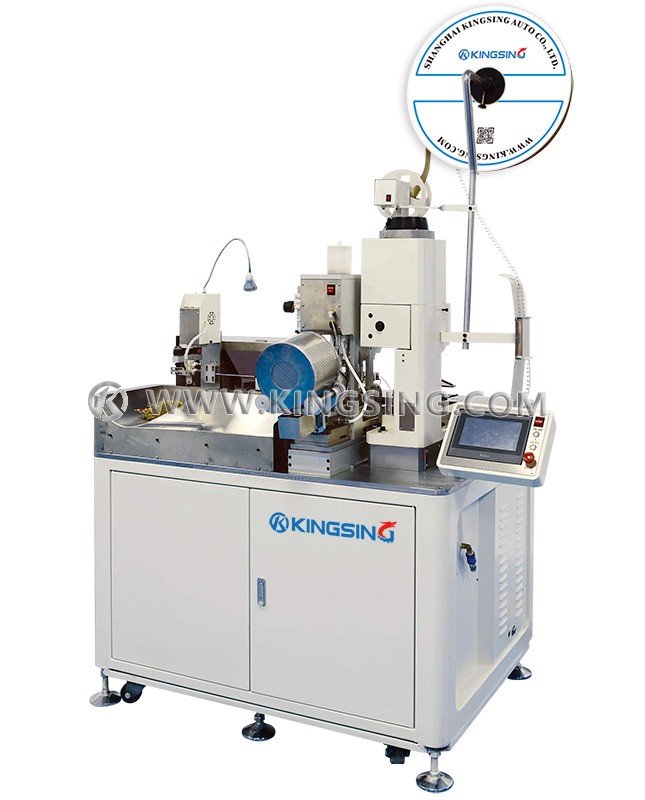

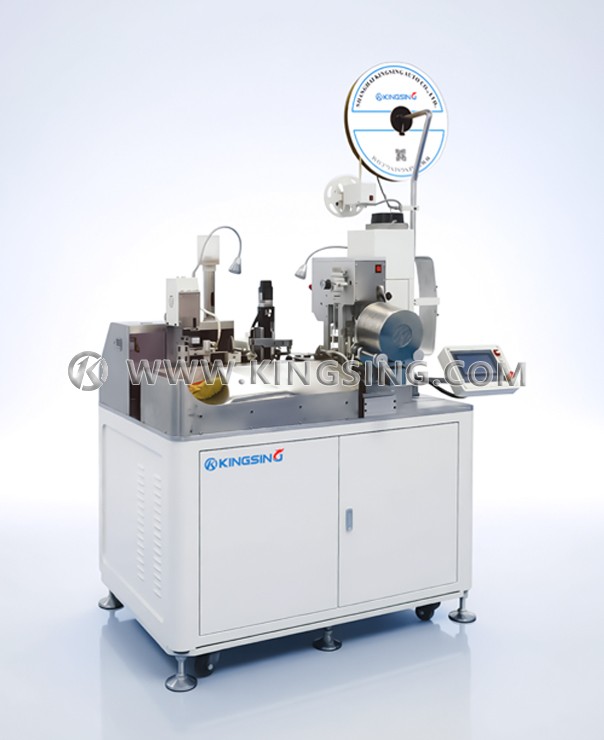

One-sided Wire Stripping Tinning & Seal-Crimping Machine

  • Model:KS-S112E
  • Net. Weight:
  • Dimension:
  1. This is a fully automatic single-side twisting, tinning and waterproof plug sealing crimping machine. One end twists the wire and tin, and the other end wears the waterproof plug to make the terminal. The waterproof plug is automatically fed by the automatic feeding system. One machine can process a variety of different products. When replacing the waterproof plug, you only need to replace the corresponding track fixture. The whole machine has compact structure, small footprint, strong versatility, and high cost performance.

  2. The terminal machine is integrally formed with nodular cast iron, the whole machine has strong rigidity, and the crimping size is stable. The default crimping stroke is 30mm, and the standard OTP bayonet mold is used. In addition, a model with a stroke of 40mm can also be customized, and various European molds can be used. .It can also be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time, and automatically alarm and stop when the pressure is abnormal.

  3. Color touch screen operation interface, parameter setting is intuitive and easy to understand, such parameters as wire cutting length, stripping length, twisting force, tinning position, waterproof plug insertion position, and crimping position can be set in the program. Each functional module can be turned on or off independently in the program, for example, the twisted wire tin function can be turned off. The program memory function can save the processing parameters of different products into different program numbers, and the corresponding crimping parameters can be called out with one key when switching products.

Applicable wire diameter: AWG28~14 (0.1~2.0mm2)

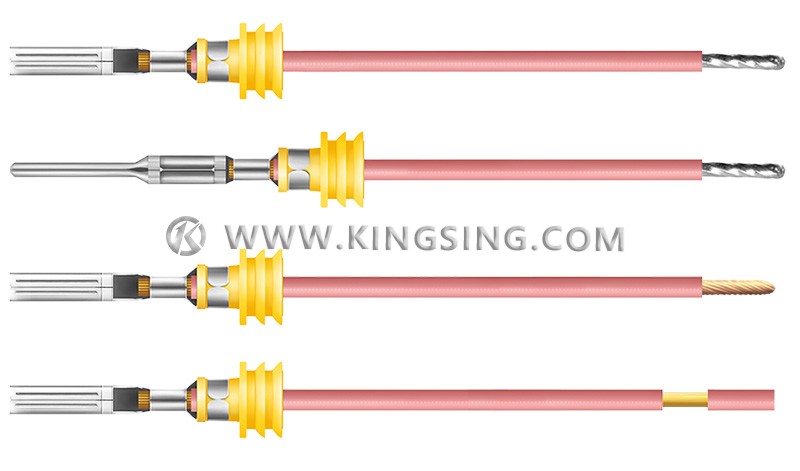

Main function: one end is inserted into the crimping terminal of the waterproof plug, and the other end is twisted and tinned

Cutting length: 50~9999mm

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Diameter of waterproof plug: ≤Φ16mm

Terminal machine output: 2T (3T model is optional)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: horizontal feed terminals, direct feed terminals, etc.

Production efficiency: 2000~2500 pieces/hour

Operation interface: color touch screen

Optional functions: terminal pressure monitor, long-wire conveyor belt, safety shield

Air pressure: 0.4~0.6Mpa

Working voltage: 220V 50/60Hz

Net weight: 350kg

Dimensions: 700*800*1500mm

Note:

  • In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
