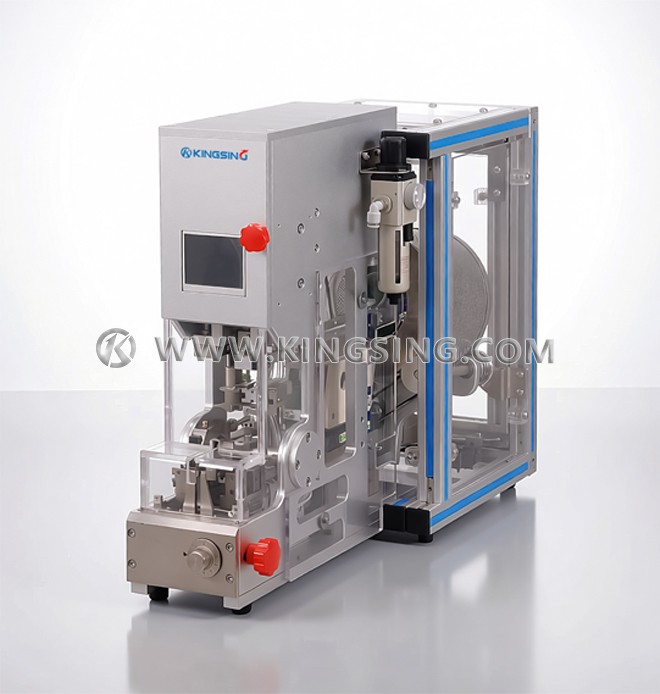

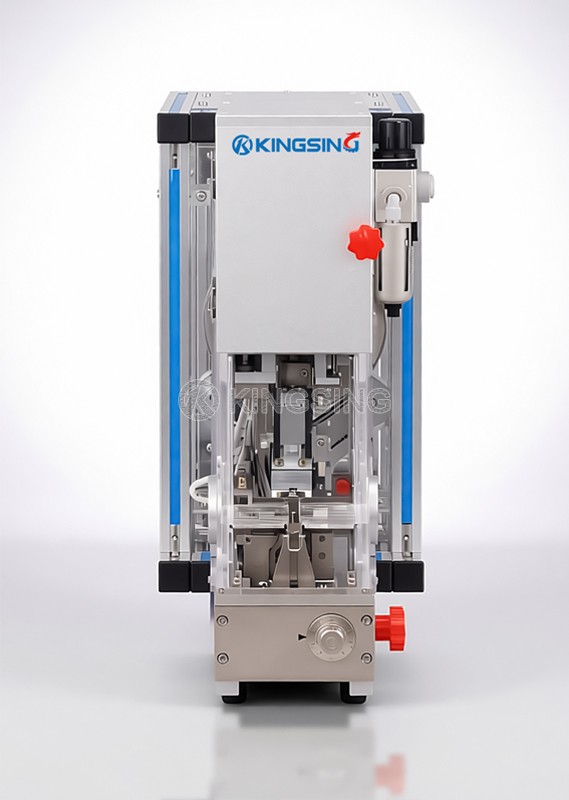

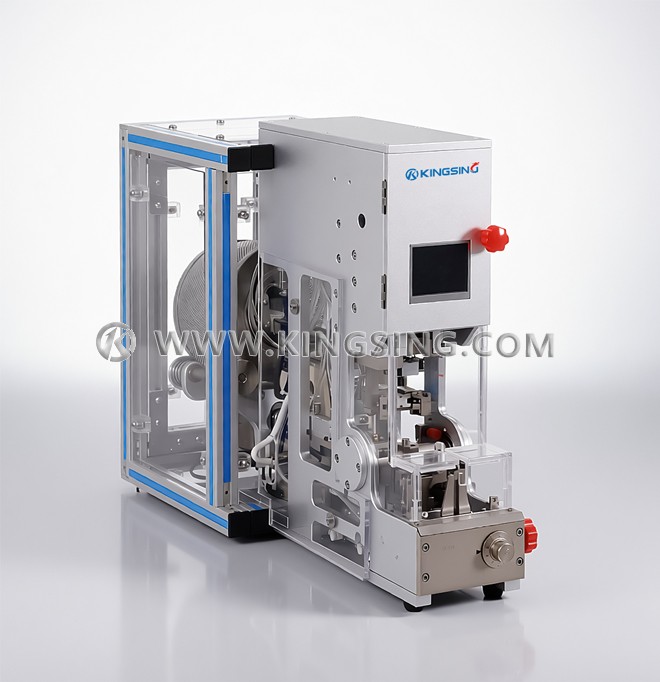

Waterproof Seal Insertion Machine

  • Model:KS-T525
  • Net. Weight:
  • Dimension:

This is a semi-automatic waterproof plug insertion machine for threading waterproof plugs on stripped wires. The operator only needs to put the wire head into the processing position, and the machine can automatically insert the waterproof plug into the wire. The waterproof plug is automatically fed through the feeding system, and the insertion depth of the waterproof plug can be adjusted. One machine can process a variety of different products. When replacing the waterproof plug, you only need to replace the corresponding track fixture.

Download: (1) (2)

Applicable wire diameter: Φ1~4mm

Outer diameter of waterproof plug: Φ3~16mm

Waterproof plug length: 6~15mm

Insertion speed: 1500~2000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.4~0.6Mpa

Working voltage: 220V 50/60Hz

Net weight: 35kg

Dimensions: 260*600*600mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
