Semi-automatic Wire Sealing Machine

  • Model：KS-T5250
  • Net. Weight：
  • Dimension：
Online Inquiry

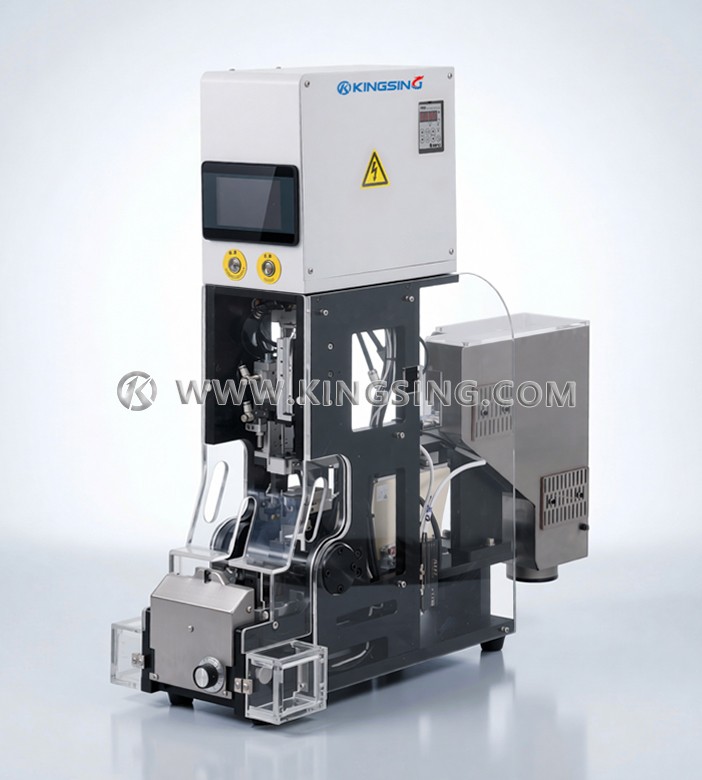

This semi-automatic waterproof seal insertion machine is designed for efficient and precise installation of waterproof seals onto stripped wire ends. The operator simply positions the wire end into the designated fixture, and the machine automatically inserts the waterproof seal with consistent penetration depth and reliable positioning.

The waterproof seal feeding system operates automatically through a track-based mechanism, eliminating manual handling and ensuring continuous operation. The penetration depth is fully adjustable to accommodate different seal specifications and wire requirements, providing flexibility for various applications.

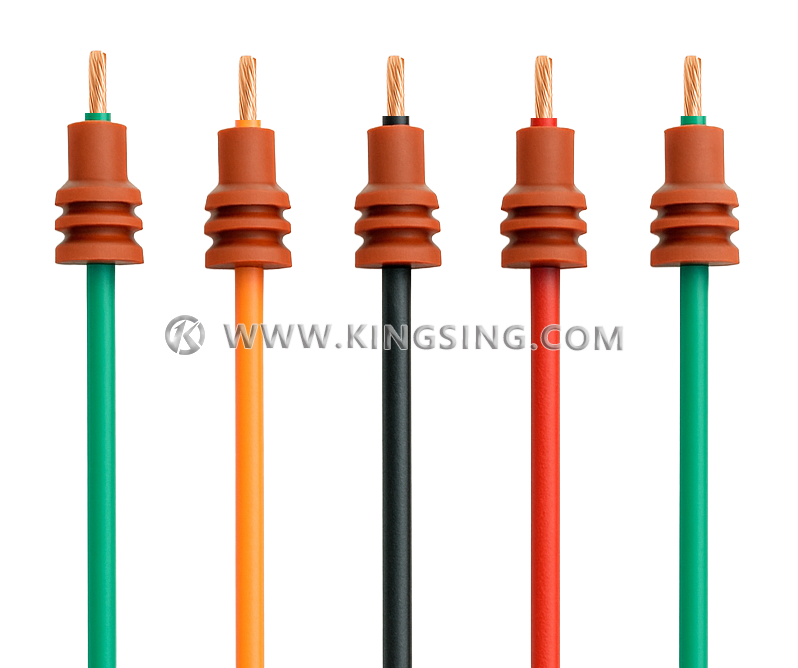

wire seal insertion

This versatile machine can process multiple product types by simply replacing the corresponding track fixture when switching between different waterproof seal sizes. The color touch screen interface provides intuitive operation control, while the pneumatic system ensures smooth and reliable seal insertion performance.

Ideal for automotive wire harness manufacturing, electronic assembly lines, and industrial cable processing applications where waterproof protection is essential. The machine significantly improves production efficiency while maintaining consistent quality standards compared to manual seal insertion methods.

Download: (1) (2)
Applicable Wire DiameterΦ1~4mm
Waterproof Seal Outer DiameterΦ3~10mm
Waterproof Seal Length6~10mm
Insertion Speed1500~2000 pieces/hour
Operation InterfaceColor touch screen
Air Pressure0.4~0.6Mpa
Working Voltage220V 50/60Hz (customizable)
Net Weight30kg
Dimensions120×850×560mm
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
