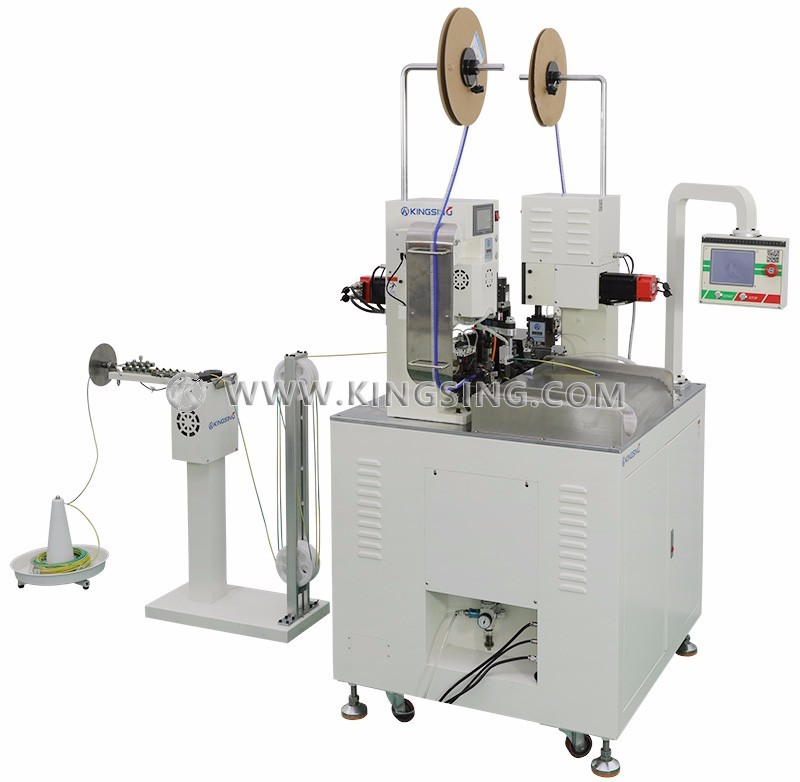

Automatic Insulated Terminal Crimping Machine

  • Model：KS-T334
  • Net. Weight：
  • Dimension：
Online Inquiry

This is a fully automatic terminal crimping machine driven by servo motors, it's especially designed for crimping tublar terminals and insulated terminals,

thanks to the rotary wire twister, the both ends can be twisted before inserting in o terminal hole, the twisting function helps to improve the precision of insertion. It's also suitable for crimping normal side-feed and straight-feed terminals.

The both crimping machines are also driven by servo motors, therefore the crimping stroke can be set in program freely, there is no need to adjust any screws to modify the crimping stroke.

The wire feeding unit is driven by four wheels, it helps to reduce the damage to wire outside insulation and improve feeding precision.


Download: (1) (2)

Available Wire Size: AWG9 - AWG30（0.05~6.6mm²)
Cutting Length: 65mm ~ 5000mm
Max. Stripping Length: 15mm
Tolerance: ±(0.5 + L*0.002)mm
Crimping Force: 3.0Ton
Applicator Stroke: 30mm/40mm
Capacity: 1500-3000pcs/hour
Power Supply: 220V 50Hz
Air Pressure: 0.5MPa - 0.8MPa
Net. Weight: 350Kg
Dimension: 960 × 900 × 1600mm

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
