Fully Automatic FRC Cable Crimping Machine

  • Model:KS-TC006
  • Net. Weight:
  • Dimension:

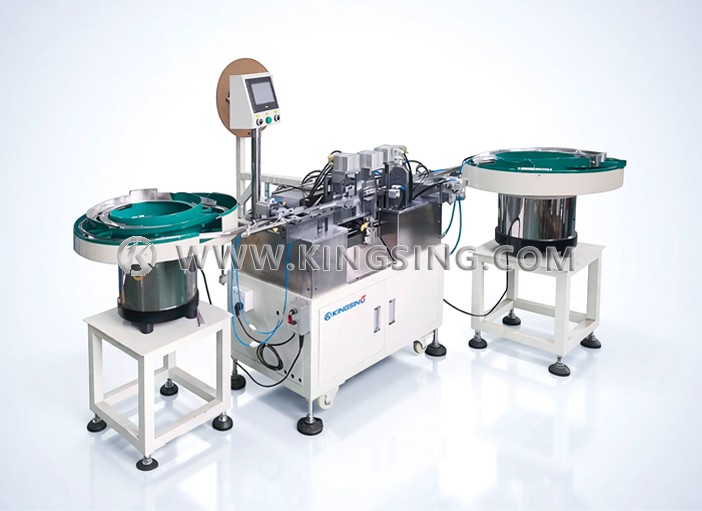

This fully automatic FRC crimping machine is specifically engineered for processing FRC (Flat Ribbon Cable) assemblies with IDC (Insulation Displacement Connection) connectors. The machine features a vibrator tray for automatic connector feeding and supports multiple crimping modes including single-head, double-head, front, and back crimping—selectable via intuitive program settings.

Designed for flat ribbon cables ranging from 8Pin to 40Pin configurations, the machine accommodates both 2.0mm and 2.54mm terminal pitches. This versatility makes it ideal for manufacturing computer data cables, LCD display connections, internal device interconnects, and various electronic harness assemblies where flat ribbon cables with black IDC connectors are required.

The machine processes standard gray flat ribbon cables with precise conductor spacing, ensuring reliable electrical connections through the IDC crimping process. Each conductor is individually displaced into the connector's contact slots, creating secure mechanical and electrical bonds without requiring wire stripping.

For applications requiring cable folding and cover installation, a separate semi-automatic cover assembly machine is available as an independent solution. This additional equipment requires manual cable placement and automatically completes the 180-degree folding and protective cover installation process, providing flexibility for complex FRC assembly requirements.

Equipped with a color touch screen interface, the machine enables easy operation and real-time monitoring. The control system ensures precision and repeatability, significantly reducing manual labor and enhancing workflow consistency across high-volume manufacturing lines in electronics, telecommunications, and computer hardware industries.

Download: (1) (2)
Applicable Wire8–40Pin flat wire (40–64Pin available on request)
Terminal Pitch2.0mm and 2.54mm
Cutting Length50–10,000 mm
Crimping ModesSingle-head, double-head, front and back crimping
Connector FeedingAutomatic vibrator tray feeding system
Operation InterfaceColor touch screen
Air Pressure0.6–0.8 Mpa
Working VoltageAC 220V 50/60Hz (customizable)
Optional EquipmentCover assembly machine (independent unit)
Net Weight220 kg
Dimensions3500 × 2300 × 2000 mm
Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
