Enameled Wire Stripping Machine

  • Model：KS-E504
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

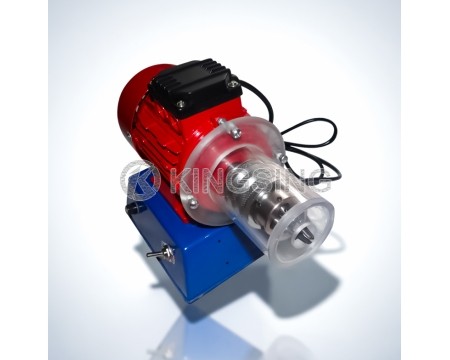

The enamelled wire stripper is designed for stripping miniature coils and fine magnet/enamel wire, the enamelled wire is introduced from above or from the front between the rotary conical glass fibre wheels, the enamel is then removed from the wire. The design of the wheels allows a visible method for making close stripping easier. With a knurled thumb screw the distance of the conical wheels can be stopped to suit the respective wire size.

Download: (1)

Machine Size: 330*230*230mm

Available Wire Size: Φ0.04- 0.45mm (AWG24-45)

Stripping length: 2mm- ∞

Power Supply: 220V / 50Hz

Power Rating: 90W

Net Weight: 10KG

Operation way: Desk type, Electric

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
