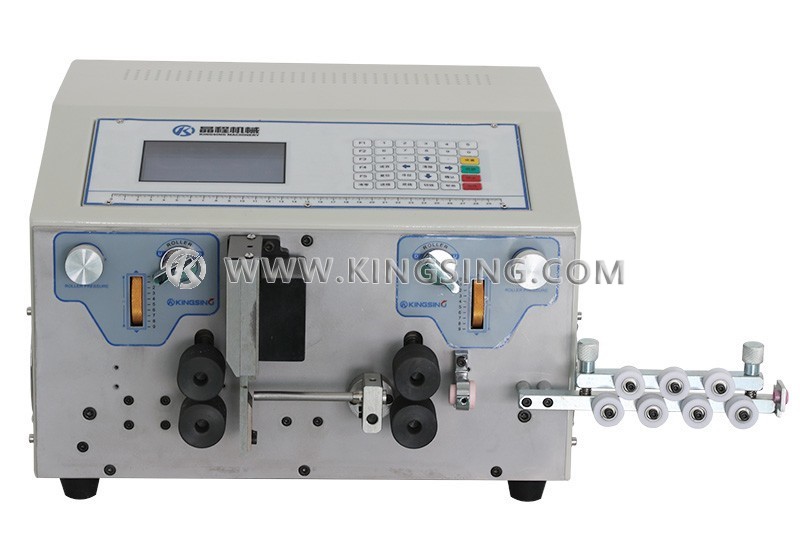

Cable Stripping Cutting Machine

  • Model:KS-09L
  • Net. Weight:
  • Dimension:

Reliability and top production performance coupled with the user friendly LCD touch screen interface are the features that make this automatic Cutting and Stripping Machine KS-09L such a compelling product. This machine covers a wide range of processing materials, such as shrinkable tube, flat cable, coaxial cable, electronic wire, jacket cable, etc. KS-09L is designed for ultra-long wire cutting and stripping, its conduit jumping structure allow the stripping length to reach 80mm. Excellent mechanical design and superior tungsten steel blade guaranteed zero damage of wire/cable conductor. Support 3 layers stripping function, such as coaxial cable and flat cable, KS-09L strips 3 layers fast and precisely, both of the 3 layers’ stripping length can be set freely. With 99 sets of program storage function, the device can be set up without mechanical adjustment. All the setting can be done through LCD touch screen in seconds. Moreover, it is a reasonably priced high-speed stripping machine. Moreover, KS-09L has the advantage of a very affordable price, it considerably saves both labor and money costs for its owners.

Download: (1) (2)

Available Wire Gauge: 0.1 ~ 10.0mm²
Max. Conduit Diameter: Φ10mm
Cutting Length: 0 ~ 99999mm
Stripping Length: Wire Head 0 ~ 200mm, Wire Tail 0 ~ 80mm
Middle Stripping: Max. 16 sections
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Speed: 3000 ~ 7000pcs/hour
Memory Function: Max. 99 group of programs
Special Function: Can strip Max. 3 layers with different length at one time
Drive Method: 4-wheel drive
Display: LCD display with English menu
Blade Material: Tungsten Steel
Power Rating: 220W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 36Kg
Dimension: 390 × 350 × 255mm
