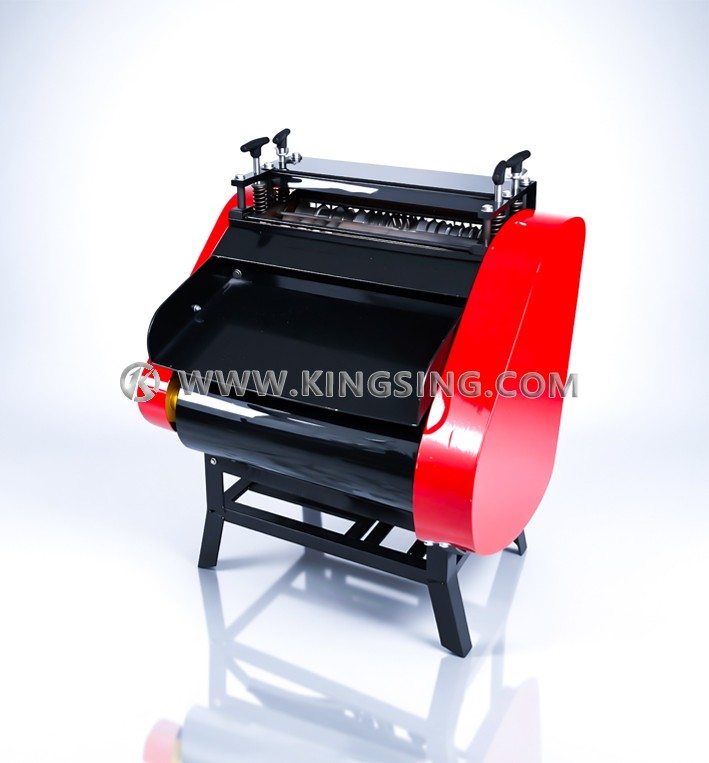

Used Wire Stripping Machine

  • Model:KS-S306
  • Wire Size:
  • Net. Weight:
  • Dimension:

Features:

  • Several feeding holes at the front end can be processed in 3 steps. The first step is to cut a hole, and the second and third steps are for extrusion to separate the copper wire directly!

  • The first of the multiple feed holes in the middle is a double blade, which can cut two openings above the cable, and the second one is squeezed by a roller.

  • The multiple feeding holes at the end are double-track double-blade wire strippers, which can make a hole on the top and bottom of the cable, and it is very easy to take out the copper core.

  • It can process cables of various specifications such as cable TV cables, sheathed cables, monofilament copper wires, and multi-strand copper wires, and can automatically separate the core and the sheath.


Download: (1)

Available Cable Size: Φ1-40mm
Power: 220V/2.2KW  380V/2.2KW
Daily Output: 200-1000Kg
Net Weight: 110Kg
Measurement: 700 × 550 × 840mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
