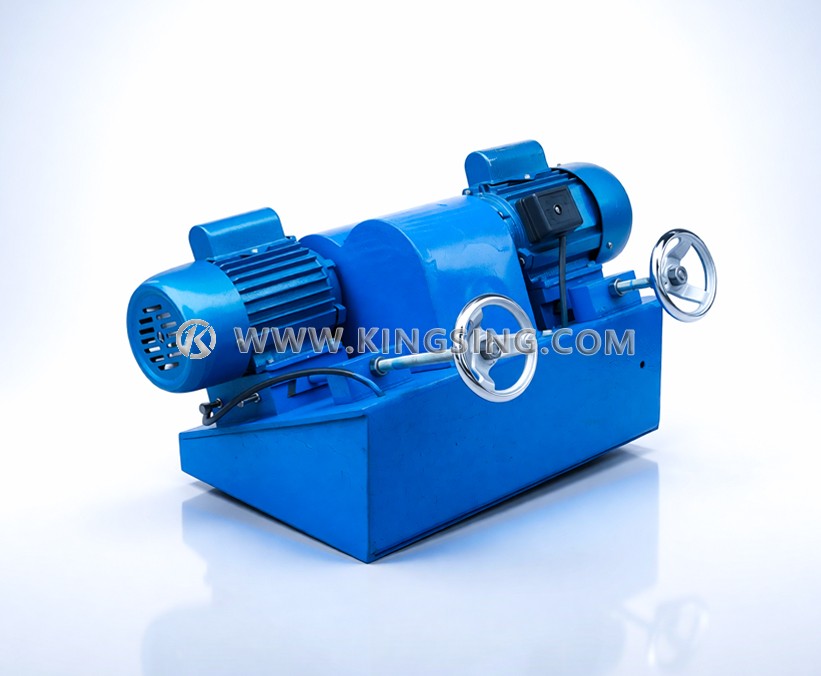

The enamel wire stripping machine is designed for heavy duty processing of enamel coated wires, it has very strong power thanks to twin motor drive, its design enables the processing of many enamel wire types including round, square, rectangular and oval shaped magnet wire, it has a very high output rate due to the capability of stripping dozens of enamel wires at one time. The abrasive method of stripping wire utilizes either wire or fiberglass brushes to abrade the insulation off the conductor, this type of stripping is both quicker and less damaging to the wire than scrapping processes.
Available Wire Size: Round wire Φ0.2mm ~ 10mm, Flat Wire Max. Width: 80mm
Stripping Length: 3mm ~ 100mm
Power Rating: 1000W
Power Supply: 220V/50Hz
Net. Weight: 45Kg
Dimension: 560 × 400 × 330mm
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
