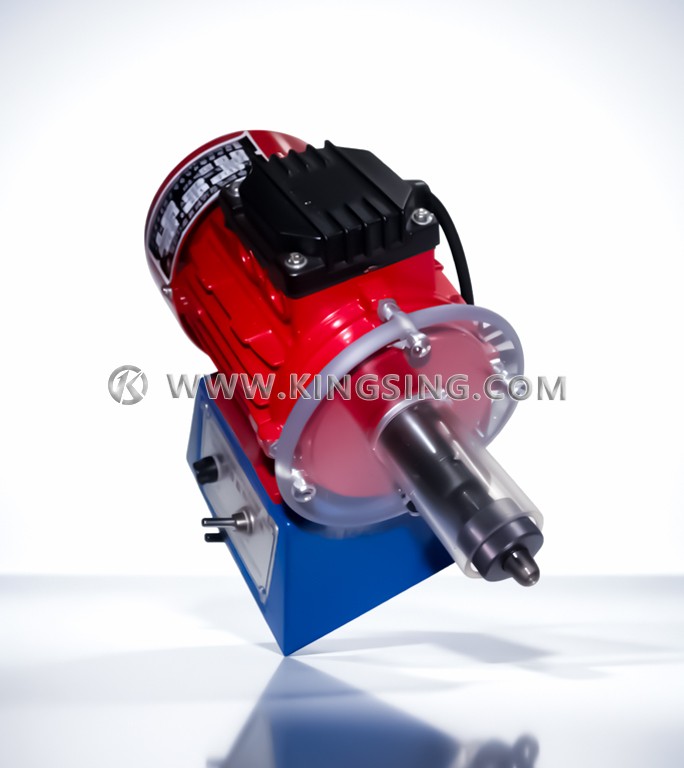

Enameled Wire Stripper

  • Model:KS-E518
  • Wire Size:
  • Net. Weight:
  • Dimension:
  • Stripping head: Made of hard alloy material, composed of  4 blades.

  • Can strip any kind of hard insulating varnish, ML, etc. without damaging the copper wire.

Download: (1)

Suitable Wire Diameter: 0.3 ~ 4.5mm

Stripping Length: 2 ~ 90mm

Power Rating: 120W

Motor Rotate Speed: 2800r/min

Power Supply: 220V/50Hz

Net Weight: 6.8Kg

Dimension: 280 x 200 x 150mm

This machine offers six different blade sizes to choose from. Please select the appropriate blade size based on the diameter range of your wires. We provide one set of blades with the machine. Additional blades need to be purchased separately.     (1) 0.3~1.0mm;    (2) 1.0~1.8mm;    (3) 1.8~2.5mm;    (4) 2.5~3.2mm;    (5) 3.2~3.8mm;     (6)3.8~4.5mm;


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
