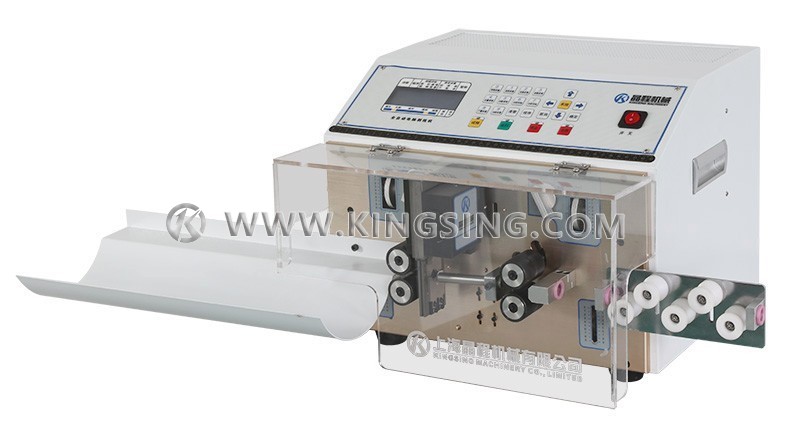

Multi Function Wire Cutting and Stripping Machine

  • Model:KS-W105
  • Net. Weight:
  • Dimension:

KS-W105 is designed for large wire/cable cutting and stripping up to 16mm2. With 99 sets of program storage function, the device can be set up without mechanical adjustment. KS-W105 adopted advanced high efficiency step motors, and adjustable pulse value designing, which guaranteed extremely high level of cutting accuracy. This stripping machine is suitable for different kinds of power cords, thick cables and other electronic wires. Full-strip, semi-strip and middle strip both available on this machine, in addition, the striping function can be turned off while the cutting function is the only requirement. Made of superior imported tungsten steel, the cutting part is very strong and durable. The changeover between different size of wires is very convenient, especially timesaving for those customers who have multiple specification of wires.

Download: (1) (2) (3) (4) (5) (6)

Available Wire Size: 0.1 ~ 16mm²
Max. Conduit Diameter: Φ10mm
Cutting Length: 0.1 ~ 999999mm
Stripping Length: Head 0~99mm, End 0~70mm
Max. Middle Stripping Section: 13 places (2 places stripping length can be set independently)
Memory Function: Max. 99 group of programs
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Speed: 2000pcs/hour
Drive Mode: 4-wheel drives
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Power Rating: 450W
Power Supply: 220V/50Hz 110V/D0Hz
Net Weight: 42Kg
Dimension: 500 × 475 × 335mm
