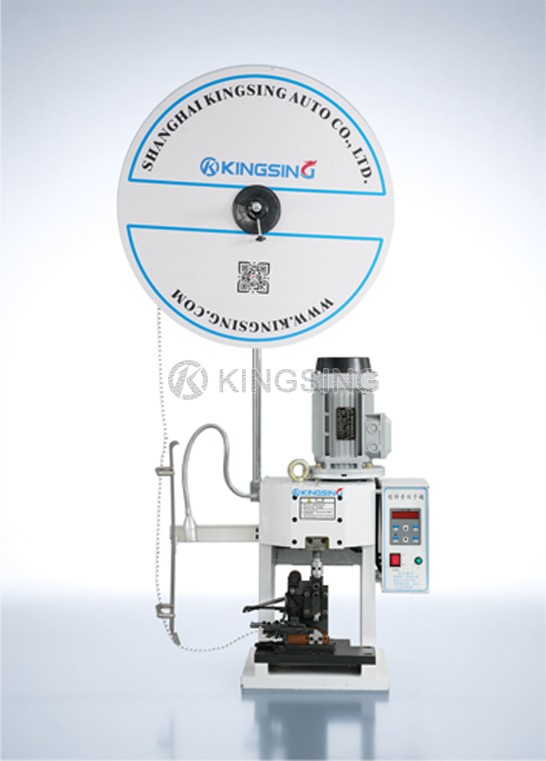

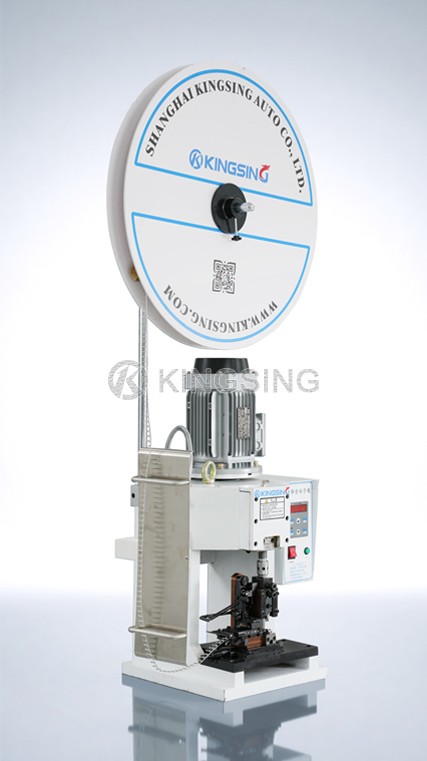

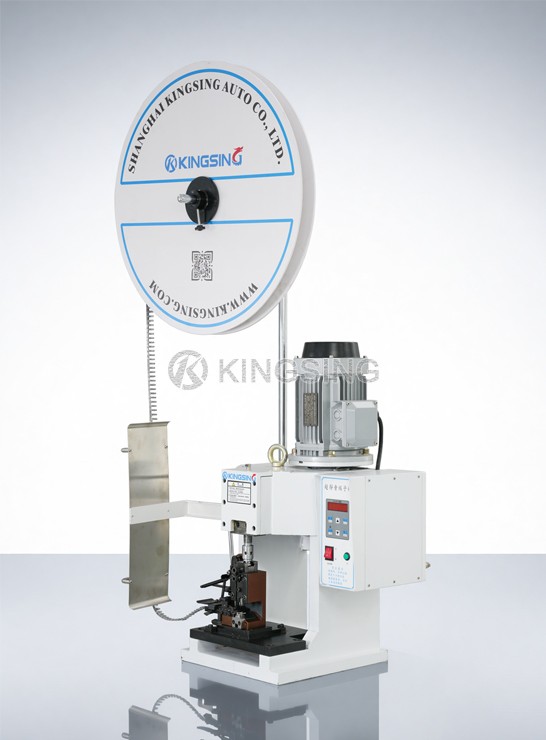

Semi-automatic Wire Terminating Machine

  • Model:KS-TH20 Series
  • Net. Weight:
  • Dimension:
  1. This series is a high-precision silent crimping machine, with a total of 6 sub-models (see technical parameters for details). The body is integrally formed of ductile iron, with solid materials, strong rigidity, stable crimping size, and large mold station space, which can better adapt to #2000 large molds. Good rigidity enables it to well support the crimping force monitor, and the optional crimping force monitor can automatically alarm and stop when the crimping force is abnormal.

  2. Strong versatility, it can crimp all kinds of cross-feed terminals, direct-feed terminals, U-shaped terminals, flag-shaped terminals, double-tape terminals, tubular insulated terminals, aviation terminals, bulk terminals, etc. When crimping different terminals, only the corresponding crimping dies need to be replaced. The default crimping stroke is 30mm, and the standard OTP bayonet applicator is used to support quick applicator replacement. In addition, models with a stroke of 40mm can also be customized to support the use of European applicators and other special molds.

  3. The crimping machine is driven by a variable frequency motor, and the motor starts to work only when crimping. The noise is smaller than that of the traditional crimping machine, and it saves more power. There is a counter on the control panel, and the crimping speed and crimping force can also be set. The whole machine is compact in structure and beautiful in appearance, which can meet various high-quality crimping needs.

Download: (1)
ModelMax PressureMotor PowerNet WeightDimension
KS-TH20022T750W85kg300*380*650mm
KS-TH20033T1100W90kg300*380*650mm
KS-TH20044T1500W122kg350*450*750mm
KS-TH20066T2200W210kg350*450*750mm
KS-TH20088T3000W235kg370*530*850mm
KS-TH201010T4000W252kg400*530*870mm

Crimp stroke: 30mm (40mm can be customized)

Voltage: 220V 50/60Hz

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
