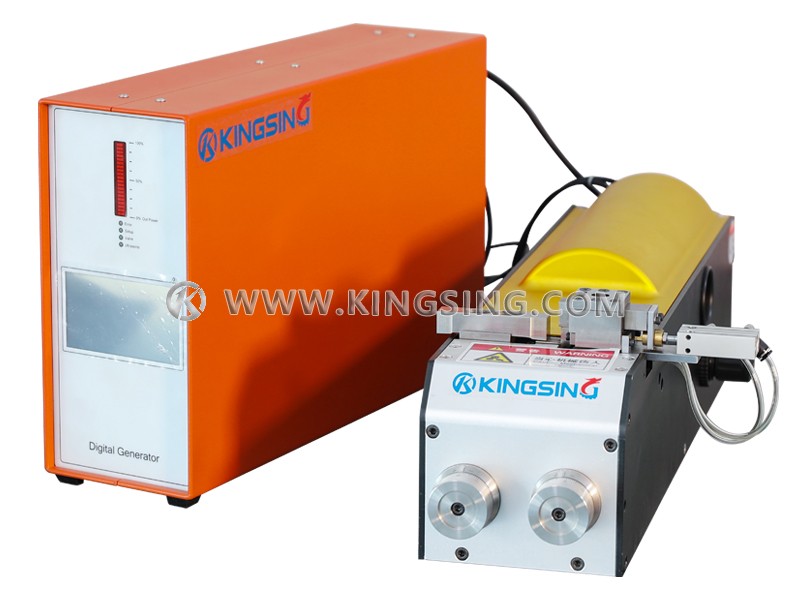

This ultrasonic wire welding machine delivers precise, clean, and consistent ultrasonic bonding for insulated wires, streamlining cable harness assembly with seamless integration into automated production lines.
By eliminating mechanical pressure and leveraging high-frequency ultrasonic energy, it ensures secure connections with minimal deformation and exceptional electrical integrity—ideal for high-density and delicate wiring applications.
The intuitive touchscreen interface supports multiple welding modes and stores programmable welding profiles, enabling instant recall of optimized settings for varying wire types and production requirements. Upgrade to this ultrasonic wire welder to enhance throughput, uphold quality standards, and simplify training with its efficient, operator-friendly design.
4*4mm² 2:2 splice
3*1.5mm² 1:2 splice
2*4mm² 1:1 splice
3*5mm² 1:2 splice
2*2mm² 1:1 splice
3*2mm² 1:2 splice
2*8mm² 1:1 splice
2*4mm² 2 wires
| Attribute | Specification |
|---|---|
| Welding Range | 2 ~ 25mm2 |
| Air Supply | 0.2-0.7 Mpa |
| Power Supply | 220 V / 50 Hz (customizable) |
| Frequency | 20 kHz |
| Power Rating | 4000 W |
| Weight | 55 kg |
| Dimension | 490 x 460 x 450 mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
