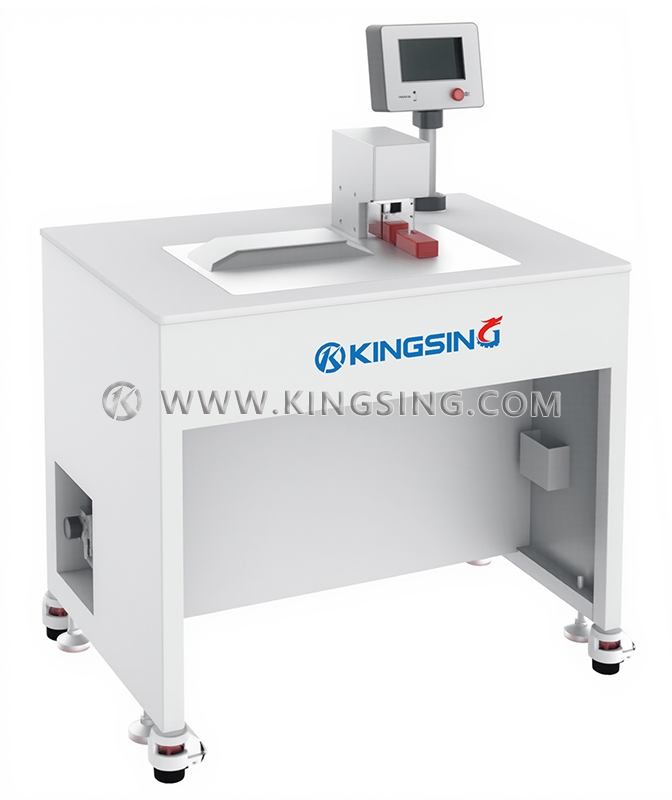

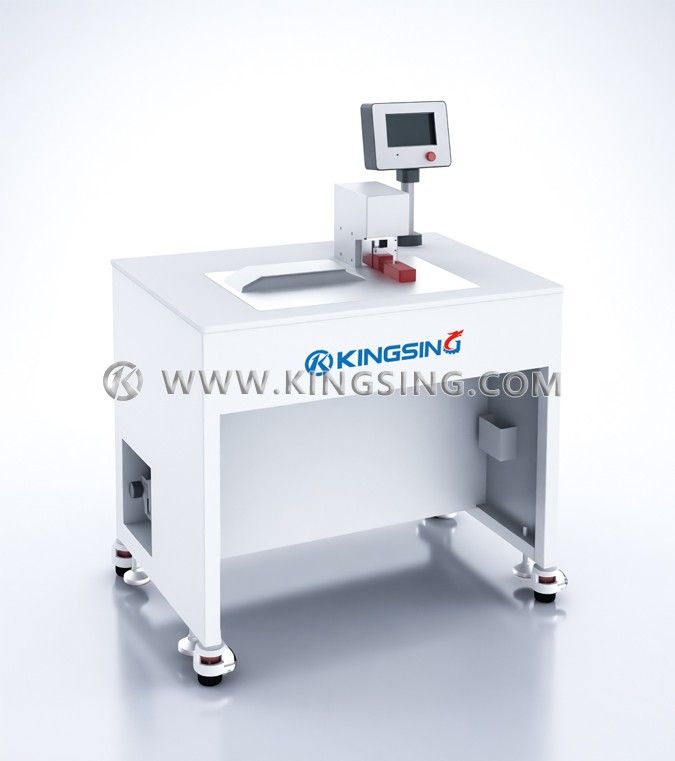

This ultrasonic wire welding machine is specifically designed for welding large-cross-section wire harnesses, featuring a 6KW ultrasonic power system that can handle wire cross-sections ranging from 5~35 mm². With its advanced motion control system, the machine ensures precise and stable performance, making it ideal for high-reliability welding tasks in demanding applications.
Equipped with a movable roller base, the machine offers easy relocation and seamless integration into various workspaces. The intuitive touch-screen interface and menu-based parameter settings simplify operation and enable quick adjustments for different welding scenarios.
This machine is perfect for applications in automotive high-voltage wire harnesses, energy storage cable assemblies, and other sectors requiring robust, conductive, and vibration-resistant ultrasonic joints.
3*5mm² 1:2 splice
16+6mm² 1:1 splice
3*5mm² 1:2 splice
2*8mm² 1:1 splice
Welding Range: 5~35 mm²
Power Output: 6000 W
Ultrasonic Frequency: 20 KHz
Welding Speed: 0.6~2s/pc
Power Supply: 220V 50/60Hz
Net Weight: 118 KG
Dimension: 990*600*1260mm
Note: The welding range of wire cross-sectional area is for reference only. It does not guarantee weldability for all conductors within this range. Customization is available for requirements beyond this range. Please contact us for detailed information.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
