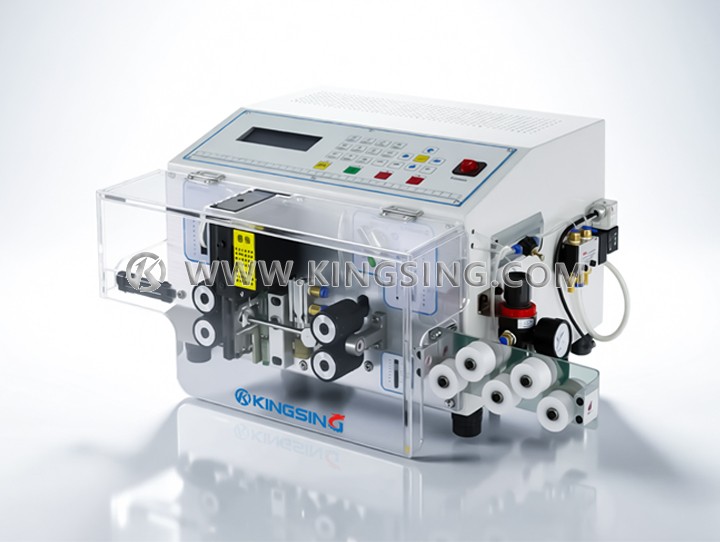

Multi-core Round Cable Stripping Machine

  • Model:KS-W611
  • Voltage:
  • Wire Size:
  • Dimension:
  1. KS-W611 is designed for round jacket cable cutting and stripping. Suitable for 2-core and 3-core round jacket cables. Outer jacket and inner core can be stripped simultaneously, special mode will press down to make the core wires parallel aligned and then strip them together.

  2. This machine is equipped with two sets of blades which are respectively applied to strip outer jacket and inner core. Outlet roller automatic lifting function allow longer wire head stripping than normal ones.

  3. Except processing round jacket cables, KS-W611 also can be used as general type wire stripping machine, suitable for Max. 10mm2 BVR wires, support full stripping, half stripping, middle striping, etc. This machine is able to handle flat cable with different core wire lengths.

  4. Conveyor belt can be matched with this stripping machine to guarantee wire harness to be collected straightly and orderly.

Available Wire Size: 0.1 ~ 10.0mm²(AWG30 ~ AWG7)
Max. Conduit Diameter: Φ6.0mm
Cutting Length: 0.1 ~ 100000mm
Stripping Length: Head 0~120mm, End 0~30mm
Max. Middle Stripping Section: 15 places
Memory Function: Max. 100 group of programs
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Speed: 1500~4500pcs/hour
Drive Mode: 4-wheel drive
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Power Rating: 430W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 35Kg
Dimension: 400 x 410 x280mm
