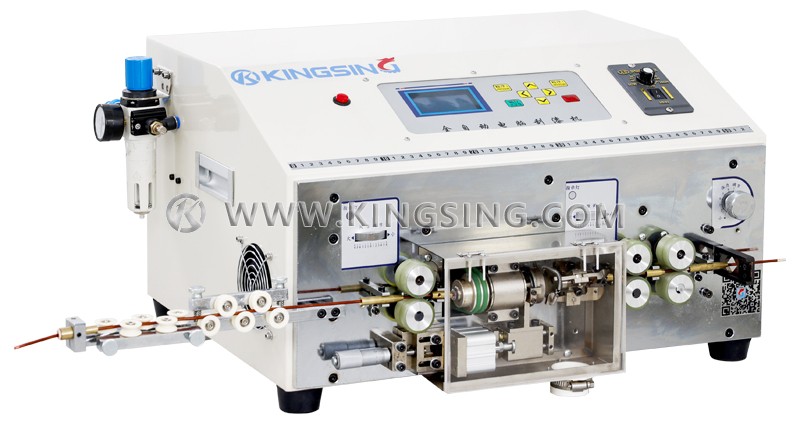

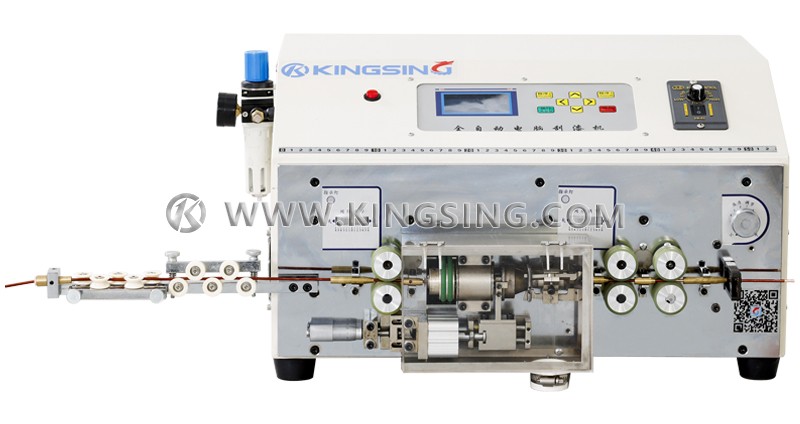

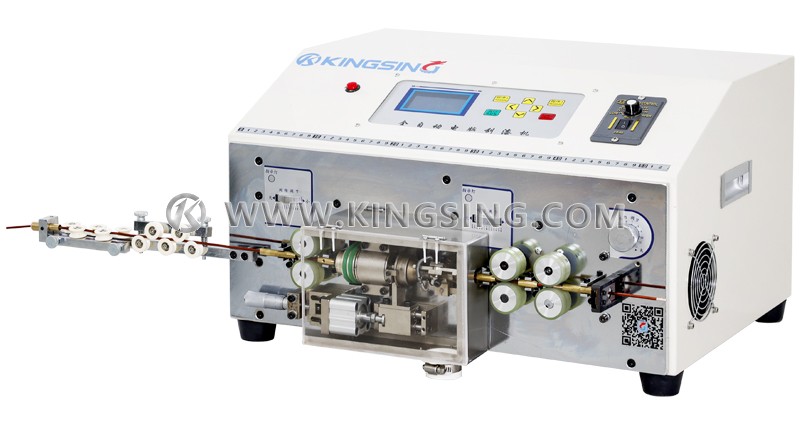

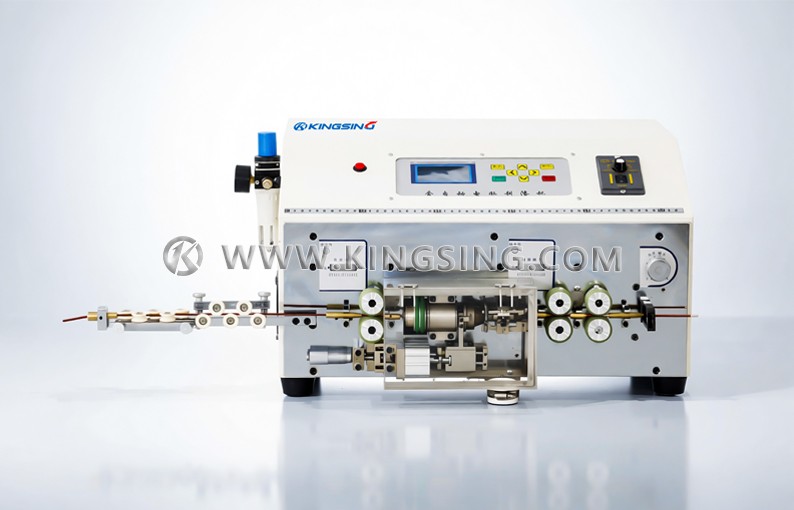

High precision and high quality: The machine can precisely control the cutting length and the scraping depth.
High Efficiency: The machine can produce hundreds of products per hour and has a very low defect rate.
Easy to operate: The structure of the machine is clear and easy to operate.
Even if the user has not received professional training, they can still get started quickly.
Protection Cover: In order to prevent operator from being injured, the machine is equipped with an acrylic protection cover which also can enable the operator to clearly observe the processing of the machine.
Control Panel: Many production parameters can be modified through the control panel which provides great convenience to the operator.
Reasonable size: The design of the machine is excellent, with a moderate dimension which do not need too much space.
Dimensions: 67 × 53 × 34 cm
Weight: 45 kg
Power Supply: AC 220V (110V is customized) / 50Hz
Maximum Power: 500 W
Cutting Length: 0 mm~9999 mm (min is 1 mm)
Head Stripping Length: 0 mm~99.9 mm (min is 0.1 mm)
Tail Stripping Length: 0 mm~99.9 mm (min is 0.1 mm)
Stripping Depth: 0.8 mm~2.5 mm (min is 0.1 mm)
Cutting Tool Material: Imported high-speed steel blade
Stripping Blade: Tungsten steel blade
Cutting Blade Speed Range: 0 ~ 9
Scrape Blade Speed Range: 0 ~ 9
Air Pressure: ≥ 0.55 MPa
Efficiency: 300 ~ 1200 Pcs/hour (depends on the cutting length)
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
