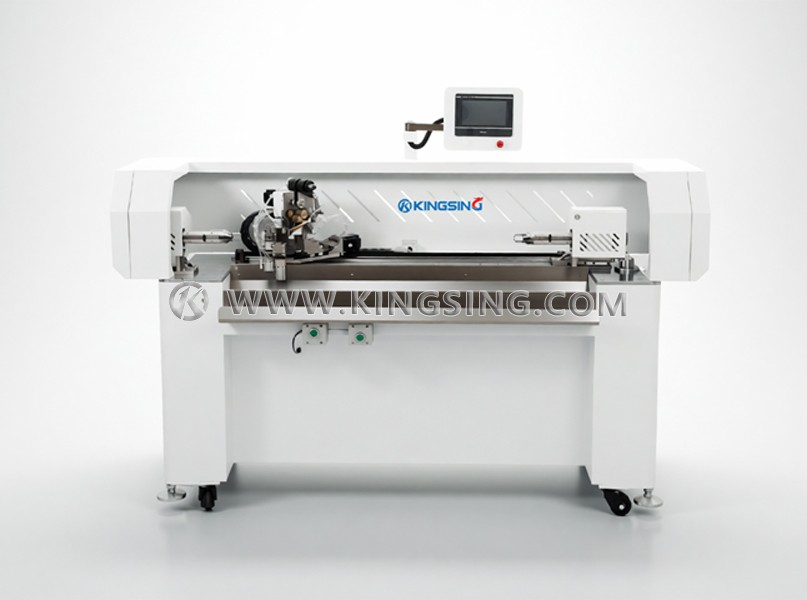

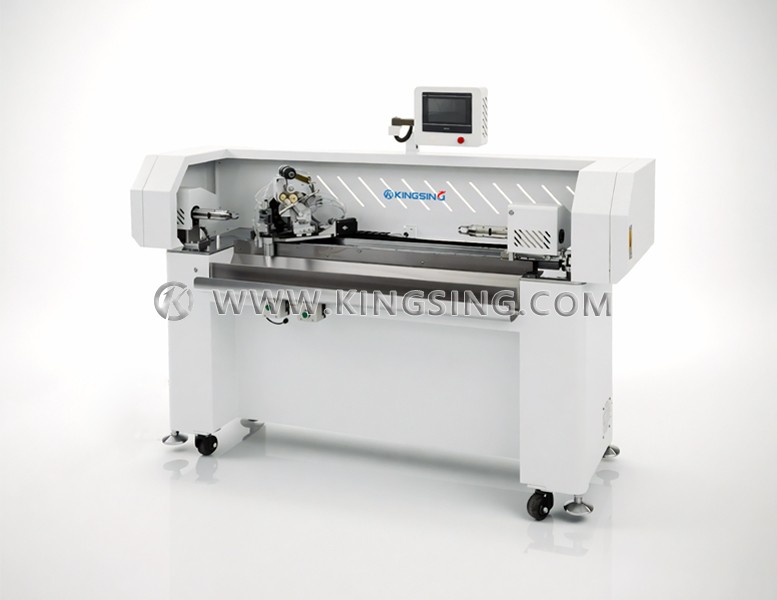

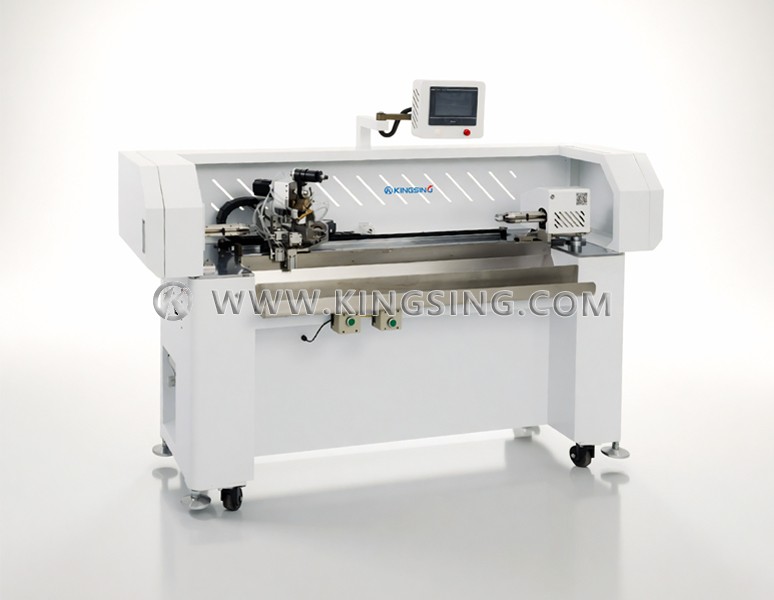

The whole machine uses servo and closed-loop motors, rollers to precisely transport the tape, and a screw guide motor to precisely push the tape, with a compact structure. The design adopts high-precision and humanized rotating air clamp with stable performance. It is suitable for high-precision fields in new industries such as high-demand tape winding processing, automotive wiring harnesses, and electric vehicle wiring harnesses.
Applicable wires: soft and thin wires
Applicable wire diameter: 1-10mm (depending on the situation)
Function: automatic winding and cutting, segmented winding
Types of tape: PVC, flannel, acetate cloth (if with release paper, additional auxiliary devices are required)
Feeding method: Guide wheel feeding screw push
Tape width: 10-25mm
Winding length: standard machine 30-1000mm (longer can be customized)
Display mode: touch screen LCD display
Production capacity: 6~30s/piece (depending on the wrapping length)
Length without tape: 25mm at the left end, 35mm at the right end (shorter lengths can be customized)
Translation mode: servo guide
Transmission: precision screw, guide rail, synchronous wheel belt
Auxiliary device: In addition, paper tape and tape can be equipped with an optional paper collection mechanism.
Power supply: AC220/50Hz
Power: 2000W
Air pressure: 0.4~0.8Mpa
Weight: 250kg
Dimension(LxWxH): 1500x 500x1250mm
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
