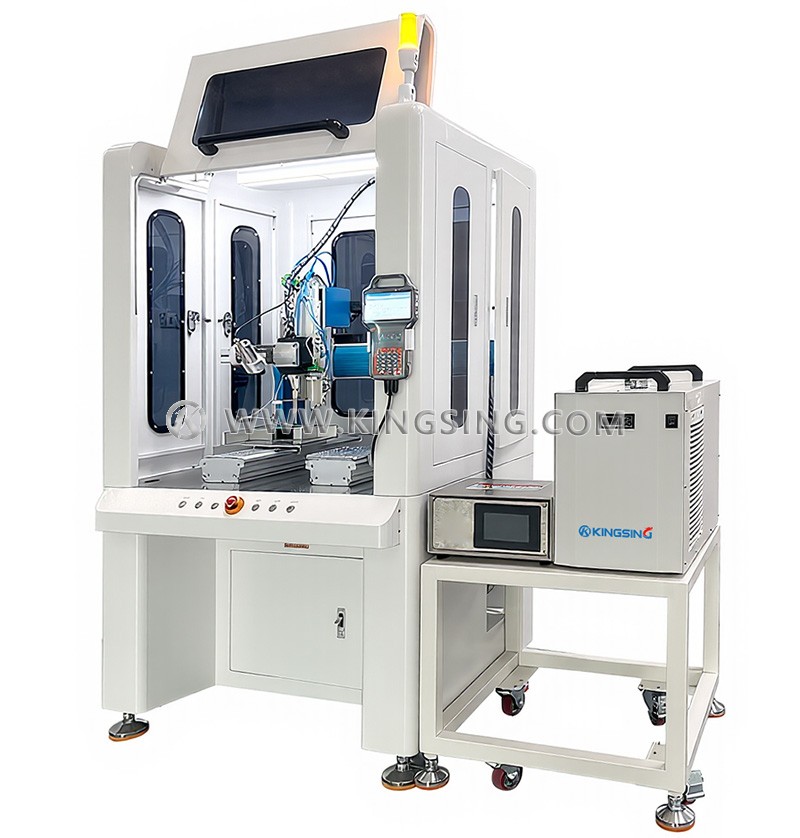

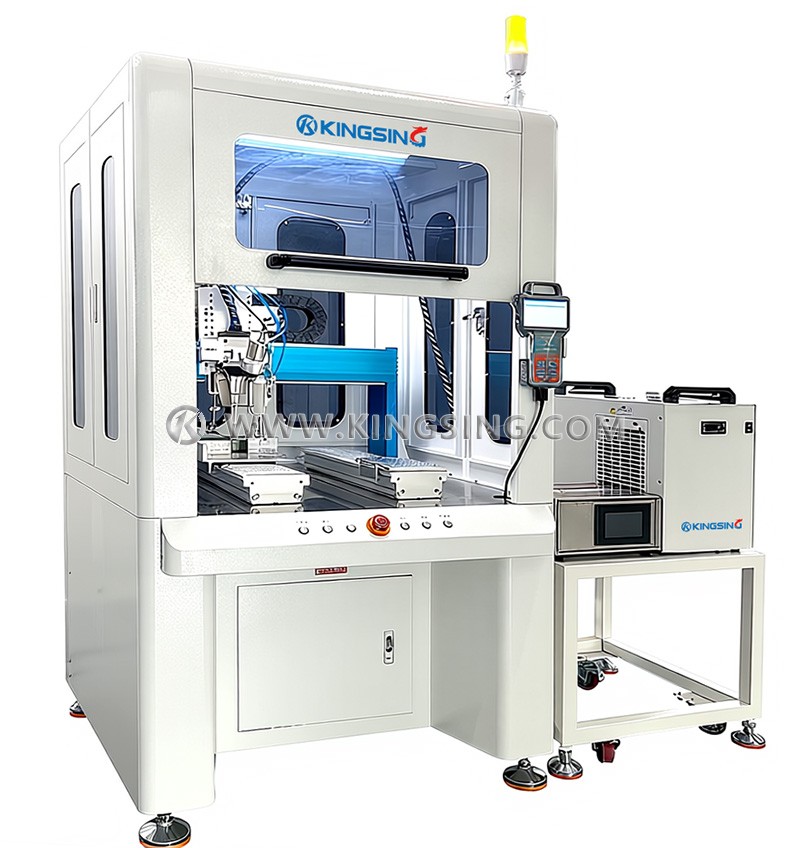

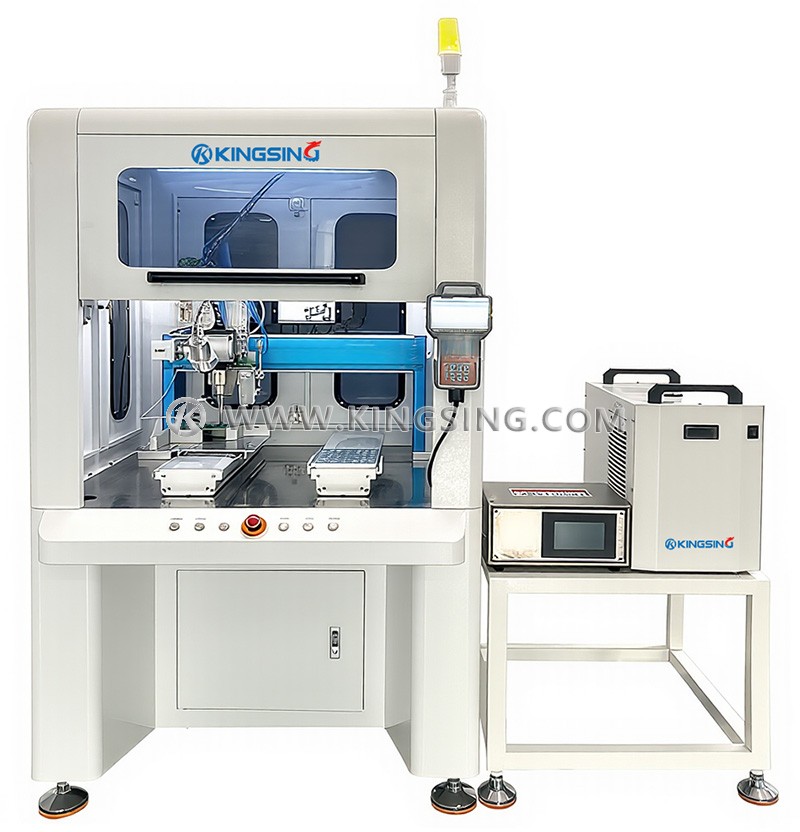

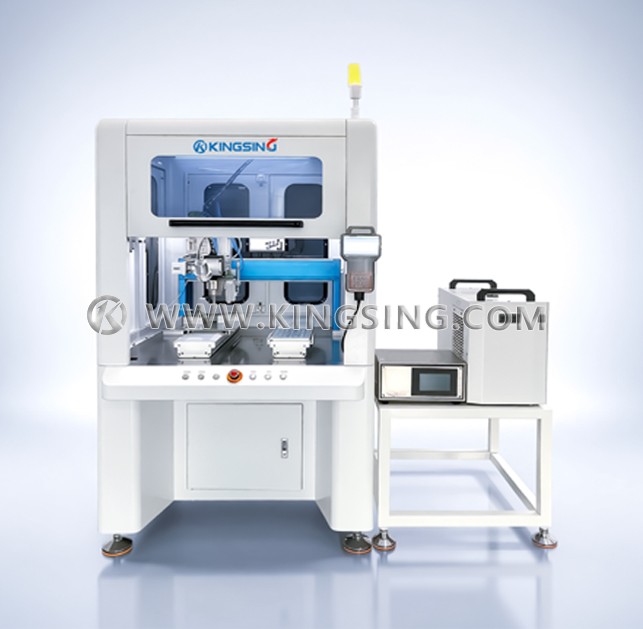

This non-contact induction soldering machine utilizes advanced high-frequency induction heating technology to deliver efficient, precise, and stable soldering operations. The system features active heating at the soldering point with infrared closed-loop temperature monitoring, ensuring consistent quality without direct contact with components.
Designed for superior performance, the equipment eliminates cold solder joints and false soldering while avoiding thermal damage associated with traditional methods. The system requires no consumable tips or auxiliary soldering materials, providing long service life and minimal maintenance requirements.
Ideal for industries with stringent reliability requirements such as aerospace, military electronics, automotive, and advanced communications, this machine delivers rapid soldering cycles with excellent heat dissipation characteristics. The user-friendly operation allows operators to set appropriate heating parameters for automatic soldering with consistent results.
With customizable soldering points and the ability to process multiple joints simultaneously, this induction soldering system significantly enhances production efficiency in complex manufacturing environments while maintaining clean operation without flux or solder paste requirements.
| XYZ Travel Range | 500 × 400 × 100 mm (customizable) |
| R-Axis Travel | ±360° (optional) |
| Minimum Resolution | 0.01 mm |
| Repeat Accuracy | ±0.02 mm |
| Applicable Solder Wire | Ø0.6 mm, Ø0.8 mm, Ø1.0 mm |
| Temperature Control | High-frequency soldering system |
| Memory Capacity | 999 programs, up to 9999 points per program |
| Air Pressure | 0.4 – 0.6 MPa |
| Power Consumption | 200 W |
| Power Supply | AC 220V 50/60Hz |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
