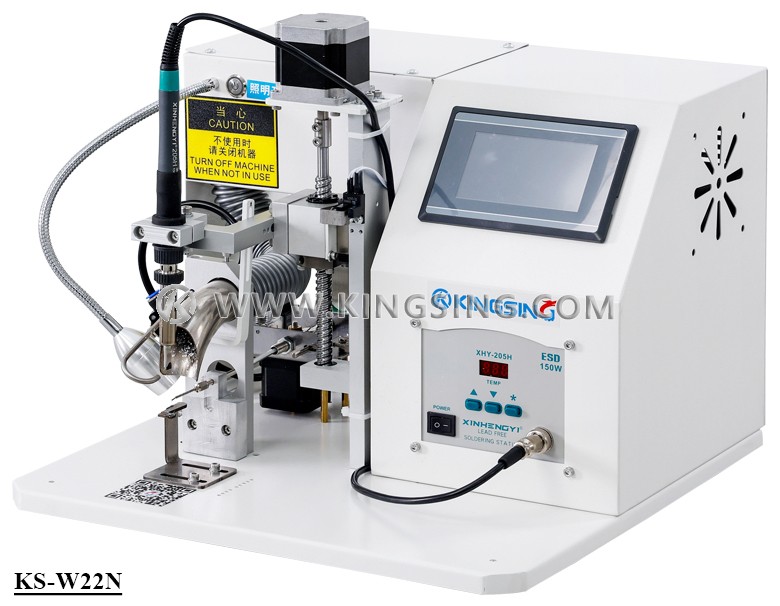

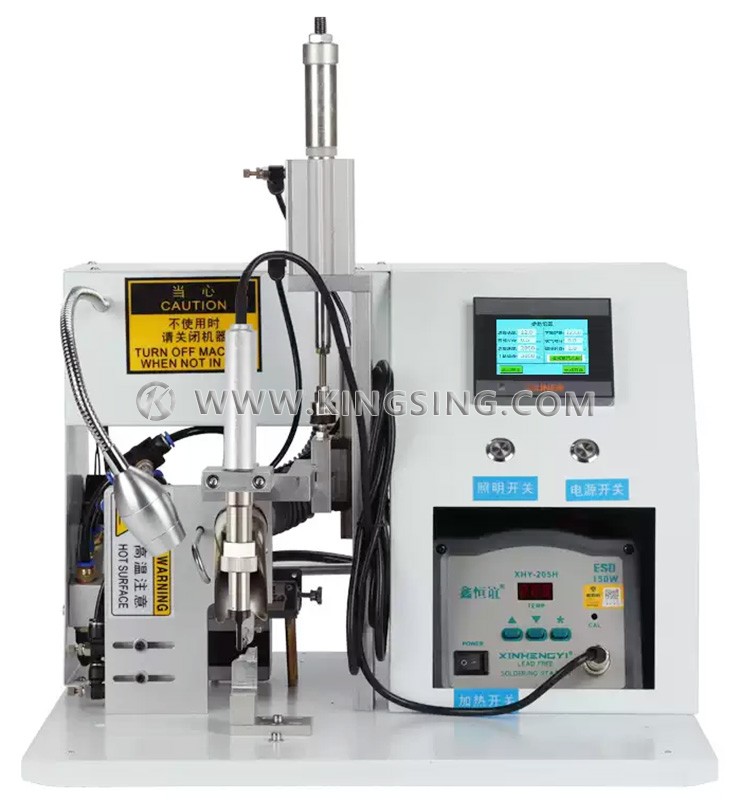

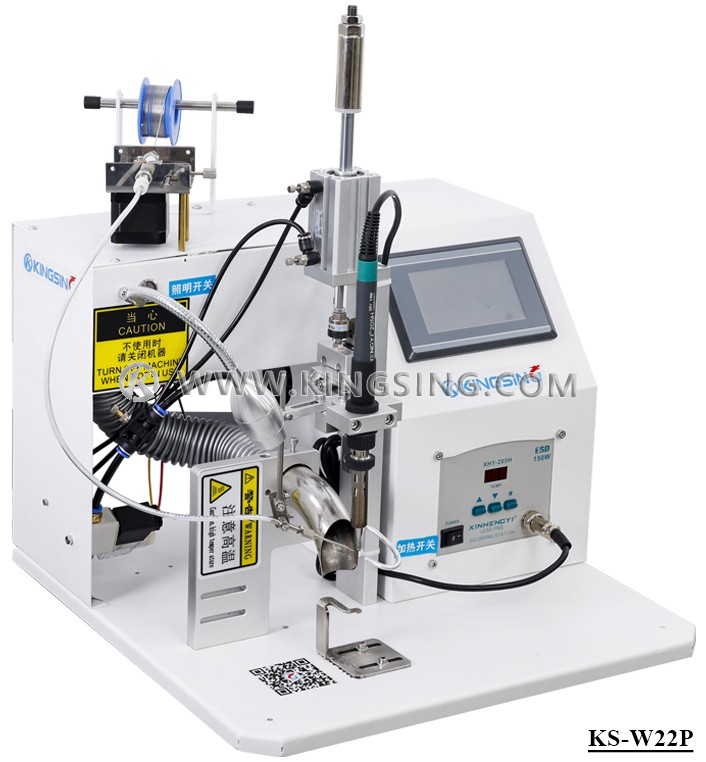

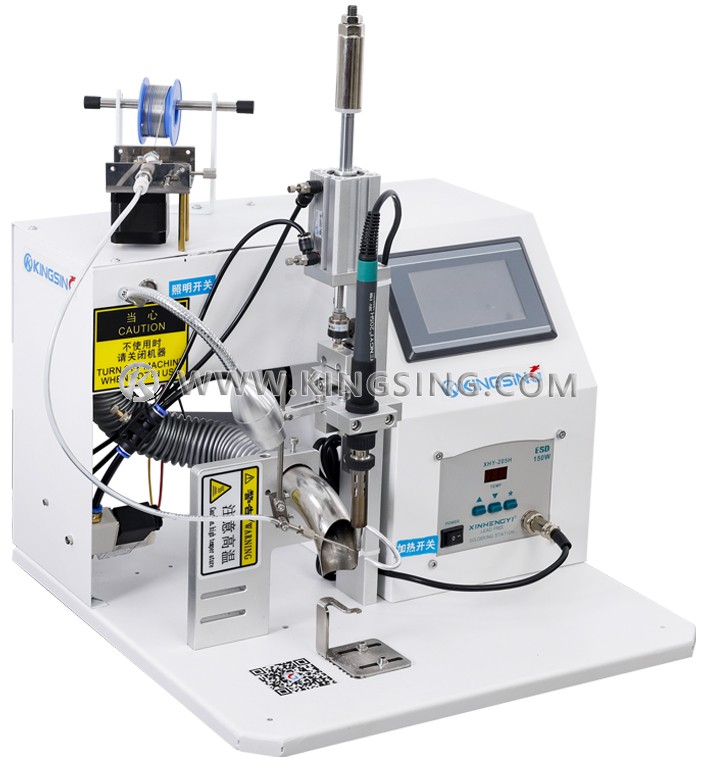

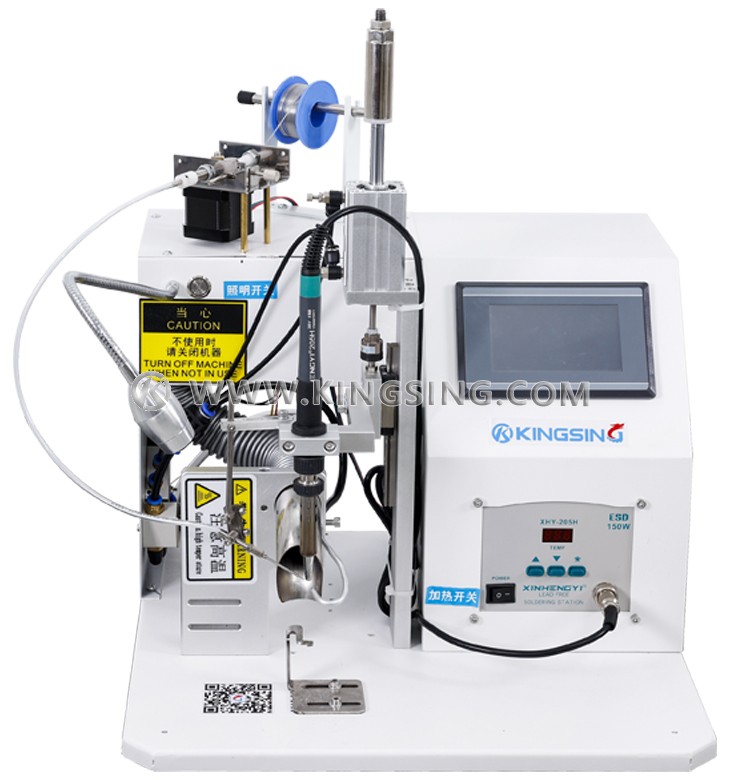

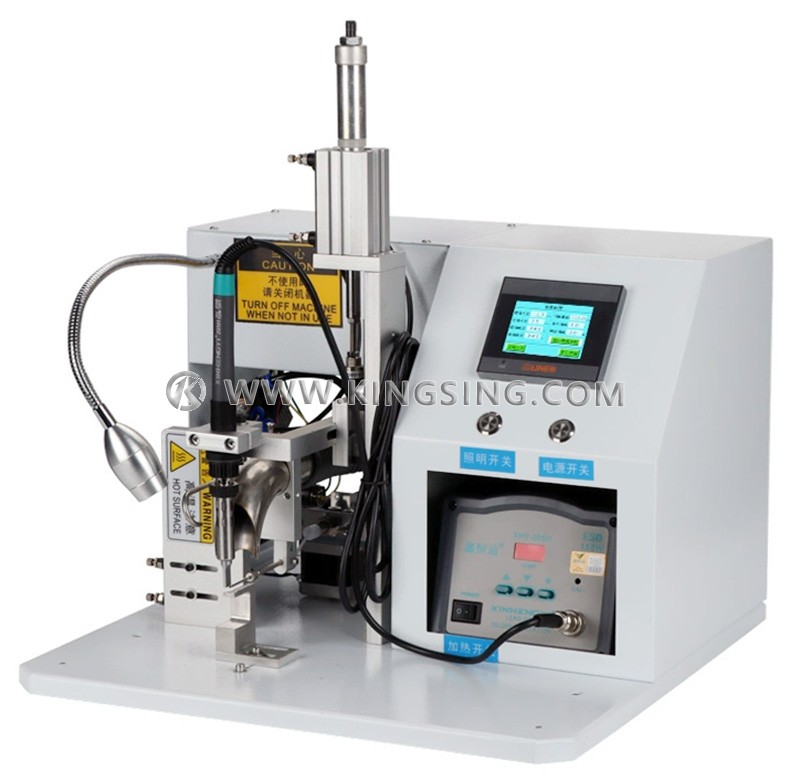

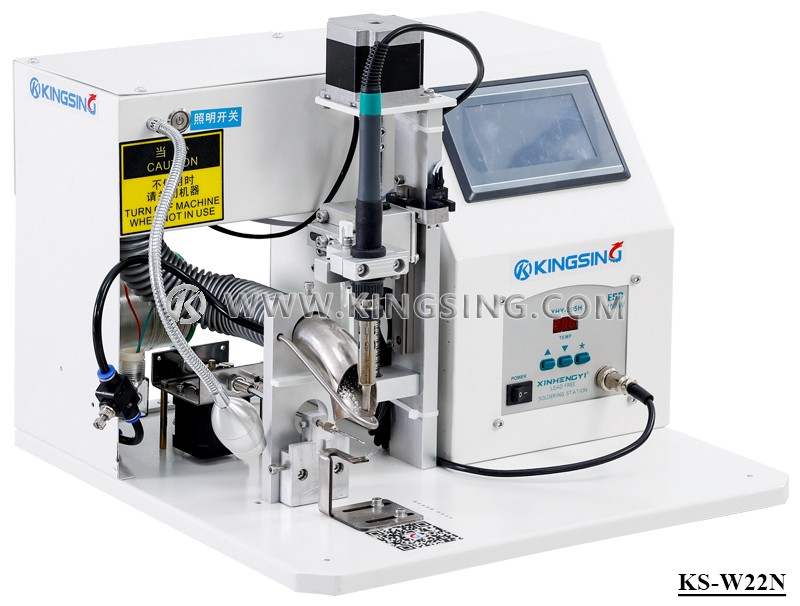

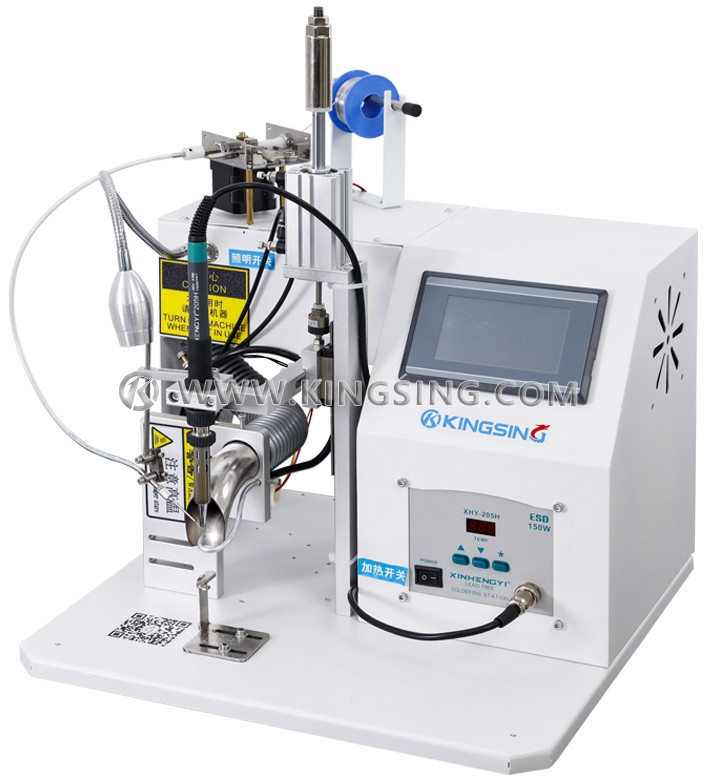

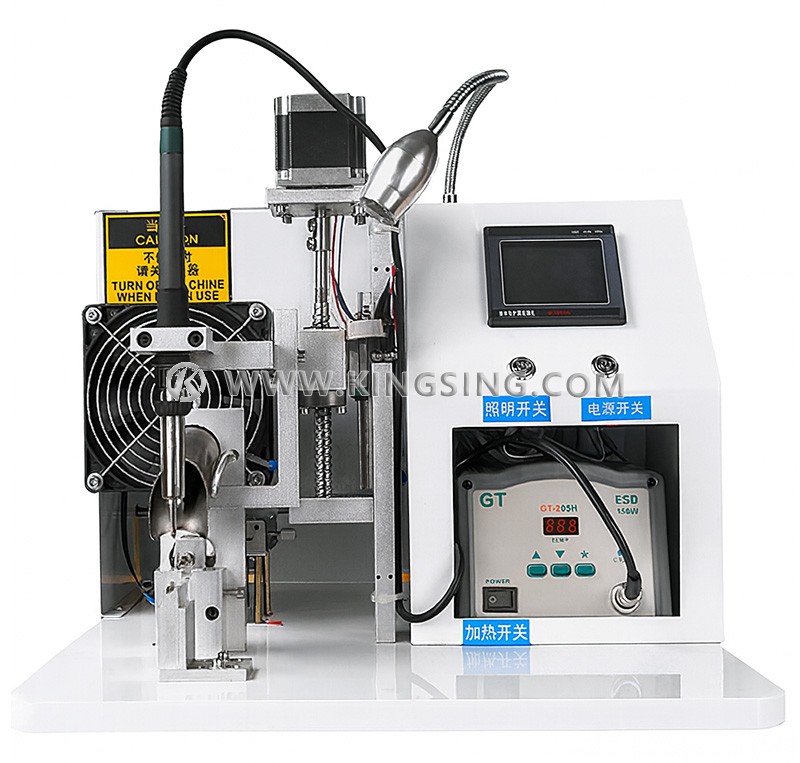

The KS-W22M is a fully automated connector and wire spot soldering machine designed to replace traditional manual soldering processes. It delivers reliable, high-efficiency soldering through fully automated wire feeding, stripping, tinning, and welding—significantly improving production speed and consistency.
✅ Key Features & Benefits
Automated Full Process
Seamlessly handles wire feeding, stripping, tinning, and soldering in one compact system—reducing labor dependency and human error.
Intuitive Touchscreen Interface
Equipped with a modern MCU-based control system and color touch screen, enabling easy parameter setup and real-time monitoring. Operators can start working immediately, even without prior training.
Highly Adjustable Parameters
Customizable settings for stripping length, welding time, temperature, and pressure—ideal for various wire types and connector specifications.
Flexible & Scalable

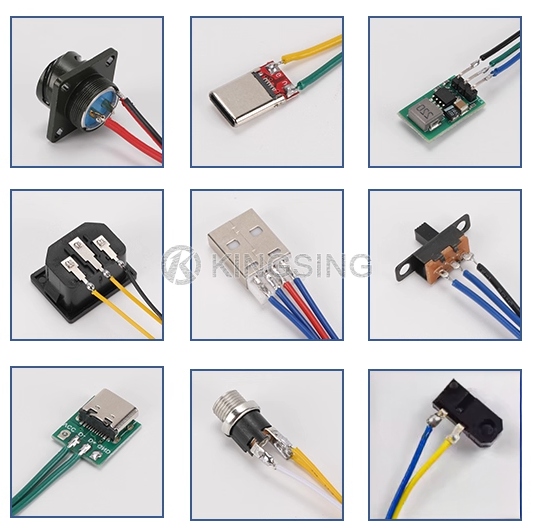

Wide application range: Simply replace the dedicated fixture to switch between different products—perfect for multi-model or small-batch production.
Safe & Clean Operation Environment
Integrated exhaust system effectively removes harmful fumes generated during soldering, ensuring a safe, healthy, and compliant working environment.
Excellent Cost-Performance Ratio
Combines industrial-grade reliability with affordable pricing, making it a smart investment for workshops, R&D labs, and manufacturing lines.
Main Function:Wire cutting, stripping, tin soldering
Speed:3~4s/pcs(Excluding the manual loading time)
Humidity:30%~80%RH(no condensation at 40℃)
Power Supply:220V/50HZ
Power Reating:280W
Air Pressure:0.5~0.7Mpa
Heating Temperature:0~550℃
Work Temperature:0~40℃
Net Weight:20KG
Dimension(L×W×H):470*430*480mm
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
