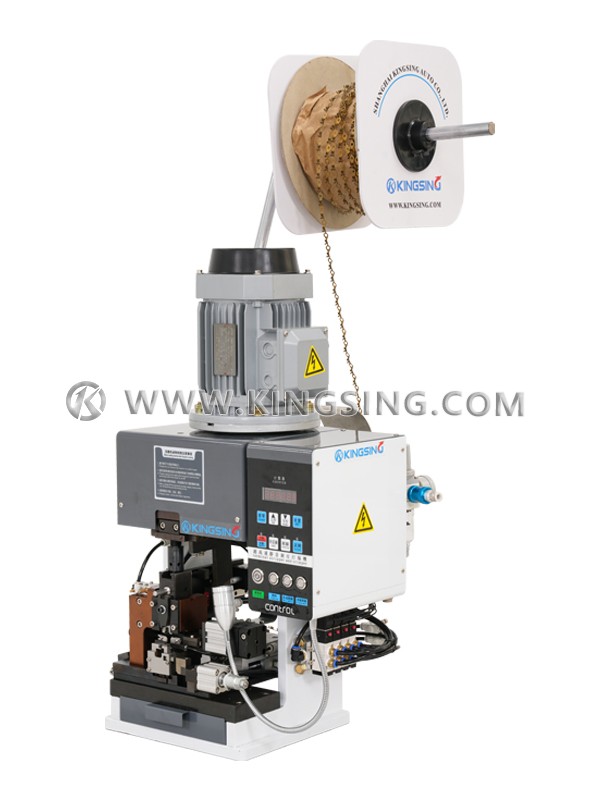

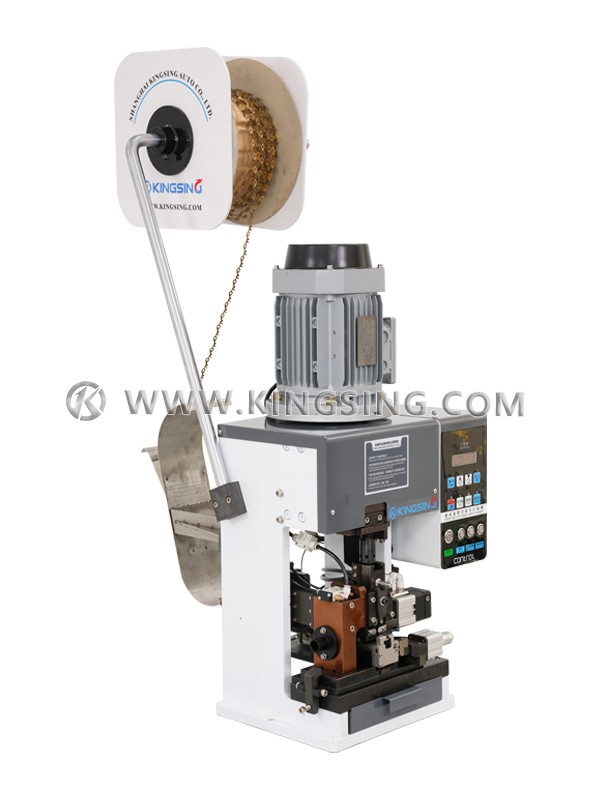

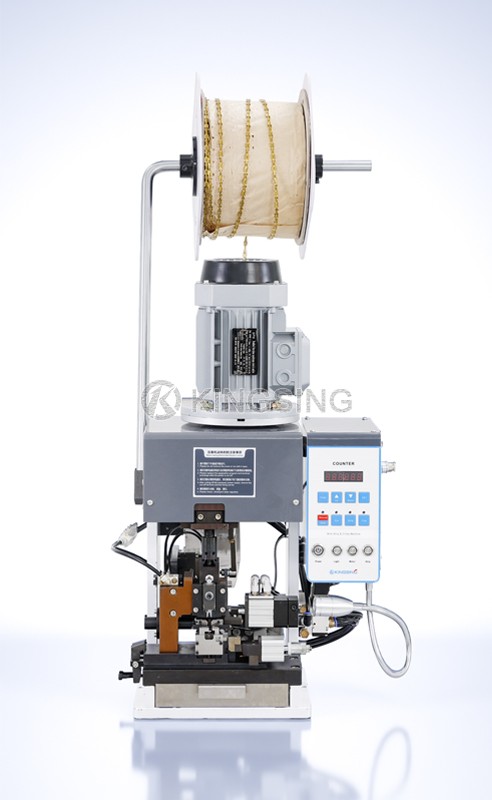

Straight-feed Terminal Stripping and Crimping Machine

  • Model：KS-T300R
  • Net. Weight：
  • Dimension：
Online Inquiry

  1. This is a multi-functional straight-feed terminal stripping and crimping all-in-one machine. The crimping force can reach 3T. It can crimp various large straight-feed terminals. One machine can crimp a variety of different terminals, just change the corresponding mold. . The wire does not need to be pre-stripped, just put the wire end into the crimping position, and the machine will automatically strip the wire first and then crimp the terminal. Combining the processes of stripping and crimping terminals can effectively reduce labor costs and improve product consistency, especially for stripping and crimping terminal sheathed wires.

  2. This machine adopts frequency conversion motor for precise control, and has the characteristics of low noise, low power consumption, fast speed and high precision. The pressure can reach 3T, and the wire rod can be processed up to 1.5mm2. The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically discharged through the pipeline by vacuum suction, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG16~32

Stripping length: 1~10mm

Tolerance: 0.05~0.1mm

Terminal machine output: 3.0T

Mold stroke: 35mm

Applicable terminal: straight-feed terminal

Production efficiency: 1000~2000 pieces/hour

Air pressure requirement: 0.4~0.6Mpa

Working voltage: 200~240V 50/60Hz

Rated power: 1100W

Net weight: 85kg

Dimensions: 500*420*700mm


Optional features:

1.Wire end cutting: Automatically cut the wire ends, the stripping length is more accurate, and the error of manual unwinding is eliminated.

2.Inductive start: Inductive start is used instead of foot switch start, and it starts automatically after the wire is put in place.

3.Pressure monitoring: monitor the pressure curve of each crimping process in real time, and automatically alarm when the pressure is abnormal.


Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
