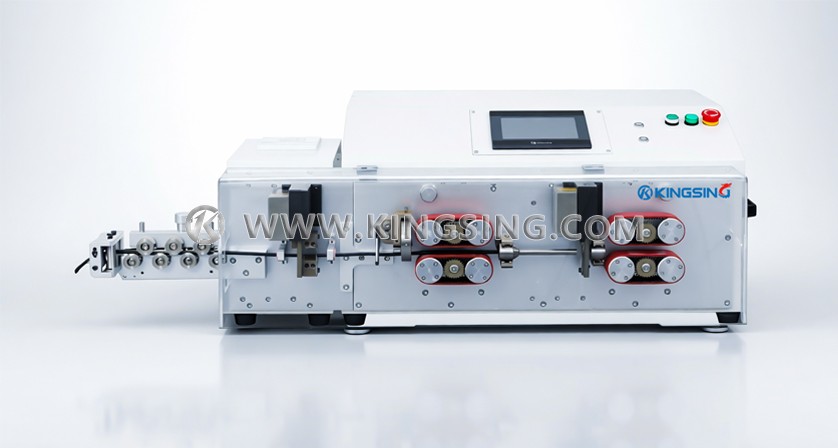

Automatic Cable Middle Stripping Machine

  • Model:KS-W6081
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This is a fully automatic middle stripping and scribing wire stripping machine. In addition to stripping at both ends, it can also open a window in the middle of the wire and strip the wire. The middle stripping position can be set in the program. This machine has an independent middle stripping mechanism, which can cut both sides of the insulation of the wire and cut both ends. The jig for intermediate stripping needs to be customized according to the wire diameter and the length of intermediate stripping, and the corresponding jig can be replaced when processing wires with different outer diameters. The middle stripping function can be turned off in the program, so this machine can also be used as an ordinary wire stripping machine. One machine can complete the processing of various wires, and it has strong versatility.

  2. This machine adopts belt feeding to replace the traditional roller feeding, which greatly increases the contact area between the wire feeding wheel and the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. This machine also has the function of automatic lifting wheel and jump guide. The automatic lifting wheel means that the outlet wheel can be automatically opened for avoidance when stripping the wire head, and the jump guide function means that the wire inlet guide is automatically lifted for avoidance when the end of the wire is stripped, which greatly increases the stripping length range.

Download: (1)

Applicable wire core area: 2 ~ 25.0mm2(AWG14~3)

Stripping length range: wire head 0~280mm, wire tail 0~130mm

Maximum cutting length: 100m

Cutting length accuracy: ±0.002×L (L means cutting length)

Minimum glue length: 50mm

The maximum number of stripping segments: 30 segments

Multi-layer stripping function: up to 3 layers of stripping

Program memory function: up to 100 groups of programs can be saved

Air pressure: 0.4~0.6Mpa

Working voltage: 220V/50Hz


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
