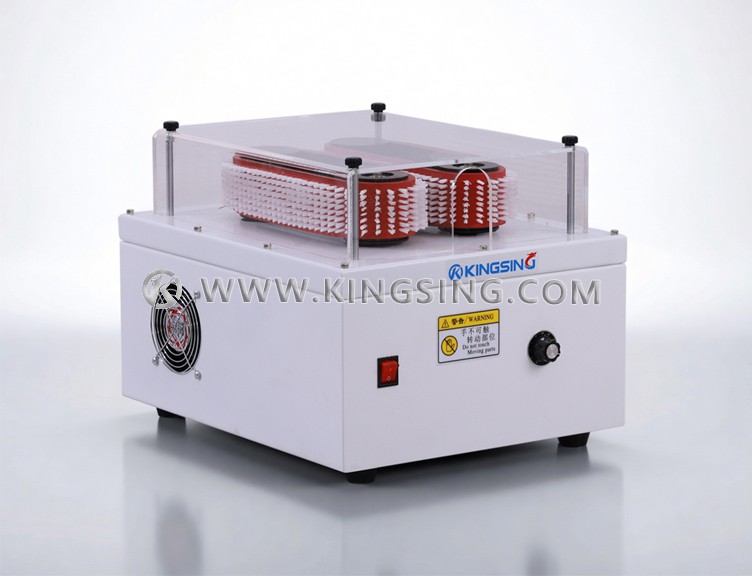

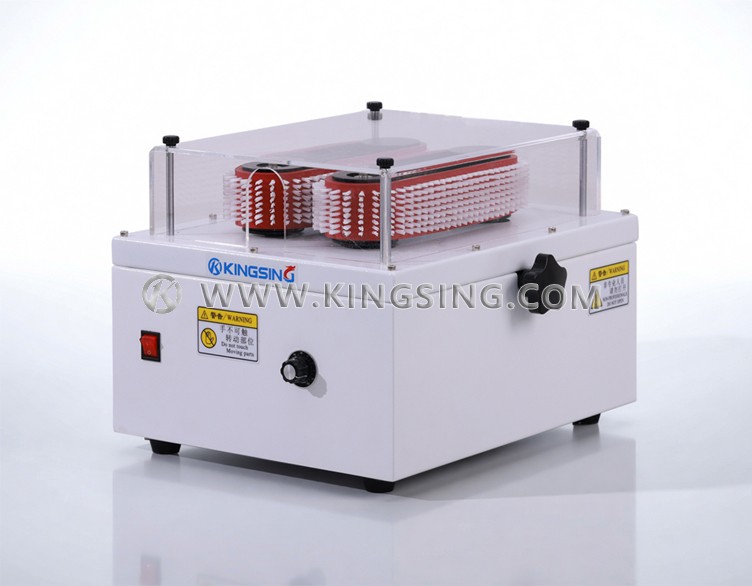

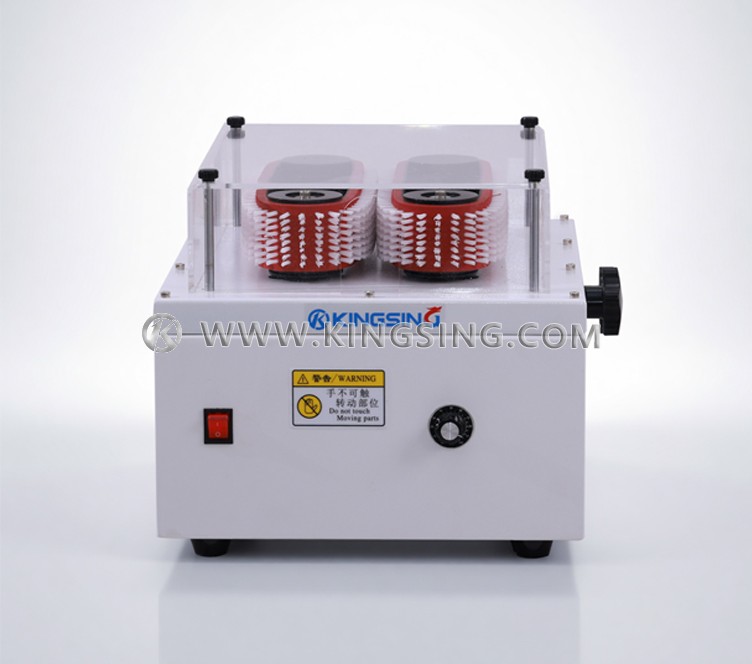

New Energy Wire Automatic Braiding Machine

  • Model:KS-W041
  • Net. Weight:
  • Dimension:
  • The shielding net can be brushed smoothly for later processing;

  • Hold the wire and slowly put the wire in from the front, while holding the wire and slowly turning it;

  • When brushing the shielding net, you should slowly open the shielding net from the front end and back (the principle of combing hair is the same)

  • You can pull the wire back and forth to increase friction and smooth the knotted areas.

  • Wires of different sizes can adjust the distance between track brush wheels.

  • When brushing a large square wire harness, you can peel off about 30% of the front section of the shielding net (to prevent the front section from being hidden in the wire core and knotting)

  • When brushing smoothly, the shielding net will not be shorter than the peeling opening.


For the safety and durability of the controller, please do not frequently directly switch between forward and reverse rotation while the motor is running, and do not start the motor when the speed regulator is in the high-speed position. Please adjust the speed regulator every time it is stopped, and re-accelerate it when it is started again. This will make the original controller very durable.

Motor speed0-1800 rpm (adjustable)
Motor power
Brush length5-200mm
Brush rangeOD 1-30mm
Power supply220V AC 50Hz
Net weight39Kg
