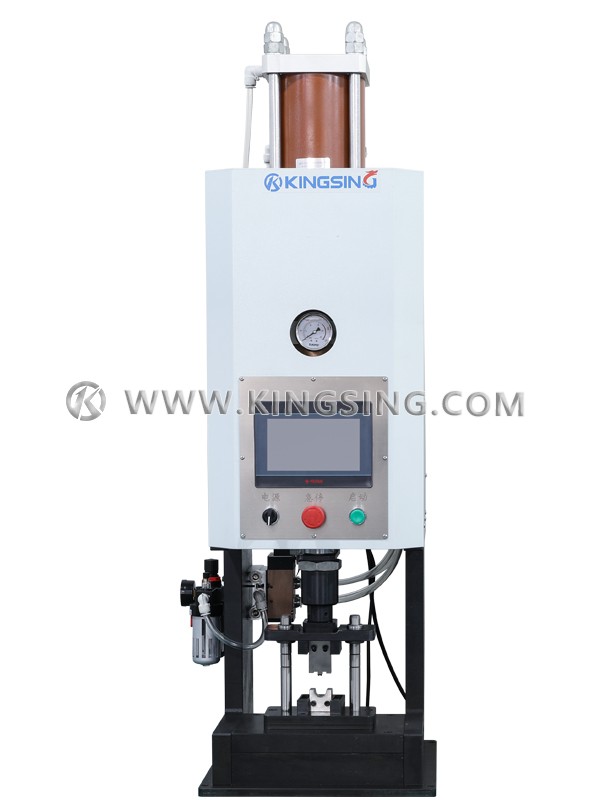

Touch Screen 20T Hydraulic Terminal Crimping Machine

  • Model：KS-T51
  • Net. Weight：
  • Dimension：
Online Inquiry

This is a pneumatic and hydraulic hybrid drive heavy-duty terminal crimping machine, it's suitable for crimping 2.5-180mm2 wires.

It combines the advantages of pneumatic and hydraulic pressure, and greatly improves the crimping speed compared with the traditional hydraulic termination machine.

The crimping height can be adjusted by the touch screen, it has the advantages of simple operation, balanced work, large output, low energy consumption, no pollution, and small occupied area.


Download: (1)

Available Wire Gauge : 2.5-180mm2

Crimping Force : 20Ton

Dimension: 500×600×1400mm

Stroke: 40mm

Power: 50W

Air Source：0.5~0.8Mpa


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
