Automatic Wire Stripping Tinning & Crimping Machine

  • Model:KS-T103AV
  • Net. Weight:
  • Dimension:

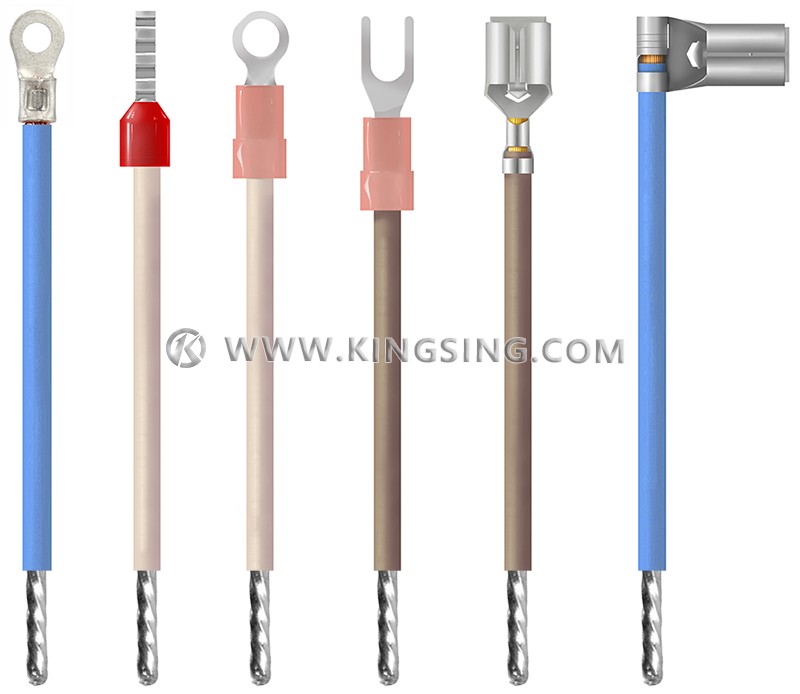

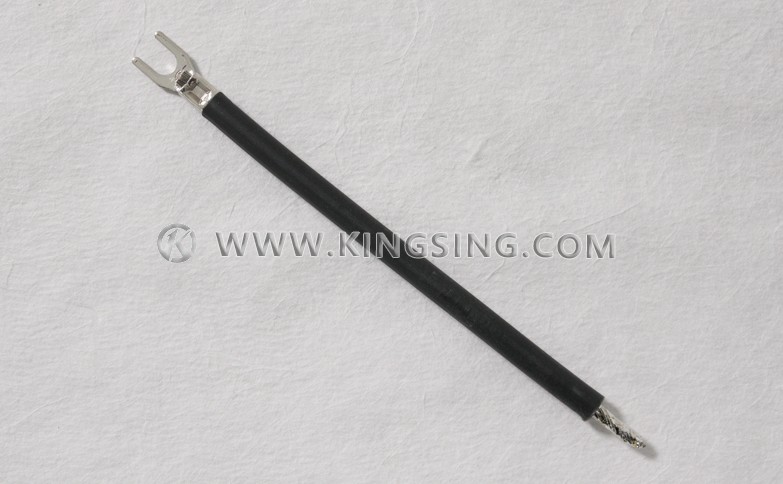

  1. This is a fully automatic wire twisting and tinning terminal machine, which can process wires up to 6mm2 in size. It integrates functions such as wire cutting, stripping, twisting, tinning, and crimping terminals. It can automatically cut the wire to a fixed length, strip the wire at both ends, twist and tin the wire at one end, and crimp the terminal at the other end. It is suitable for crimping all kinds of cross-feed terminals, direct-feed terminals, flag-shaped terminals, etc. Models suitable for bulk terminals and tubular insulated terminals can also be customized.

  2. It supports non-standard customization, and the vibrating plate can be used to automatically feed materials for bulk terminals. This machine is also suitable for crimping various bulk or reel-mounted pre-insulated terminals. It can be equipped with a twisting function and a 2-stage servo crimping machine, which can twist the copper wire and then pass it into the inner hole of the terminal to prevent reverse wire. The end of the terminal can also be equipped with the function of automatically wearing the insulating sheath or heat shrinkable tube.

  3. Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. For example, the tinning function can be turned off and used as an ordinary single-head automatic terminal machine. When replacing a terminal, only the corresponding crimping die needs to be replaced. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  4.  Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors, and the cutting blade adopts a positive and negative screw structure, with high stripping precision. The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop. In addition, a visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality. The standard terminal crimping machine is driven by a variable frequency motor, and a servo terminal crimping machine can also be selected.

  5. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Download: (1)

Applicable wire diameter: AWG28~10 (0.1~6mm2)

Cutting length: 45~3000mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Maximum pressure: 3T (can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: cross-feed terminals, direct-feed terminals, flag-shaped terminals, etc.

Production efficiency: 2500~3000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.8Mpa

Rated power: 1500W

Working voltage: 220V 50/60Hz (110V can be customized)

Dimensions: 970*840*1860mm

Optional:

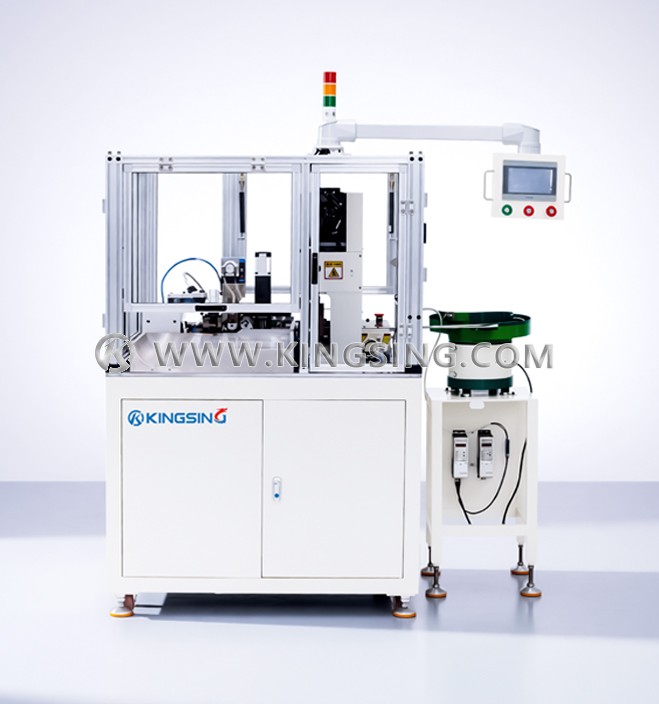

  1. Vibrating plate feeding: For bulk terminals, an automatic vibrating plate feeding system can be selected.

  2. Insert heat shrinkable tube or insulating sheath: The end of the crimp terminal can be equipped with automatic insertion of heat shrinkable tube or insulating sheath.

  3. Long wire conveyor belt: For wires with a total length of more than 800mm, it is recommended to choose a conveyor belt, which can put the processed wires straight and neatly into the receiving tray.

  4. Safety protective cover: All the parts of the transport can be covered, and when the safety door is opened, it will automatically alarm and stop to ensure safe operation.

  5. Pressure monitor: real-time monitor the change of pressure curve during each crimping process, and automatically alarm and stop when the error range is exceeded.

  6. Visual inspection system: inspect the appearance of the terminal after crimping, for example, when there are flying wires and abnormal depth of wrapping feet, it will automatically alarm and stop.

  7. Servo-type terminal machine: The terminal crimping machine adopts frequency conversion motor by default, and a servo-type terminal machine can be selected. The servo-type crimping machine has higher precision and supports 2-stage crimping function. For closed-end terminals, one-stage crimping positioning can be performed first. After the terminal is fixed, the copper wire is inserted into the inner hole of the terminal, and finally the second stage of crimping is carried out to crimp the terminal in place.

  8. Computer industrial control system: This machine adopts the touch screen operation interface by default, and can be equipped with a computer industrial control system, which supports network connection, and can be connected to the MES system through the local area network to realize remote reading and setting of parameters, remote delivery of production tasks and other functions.
