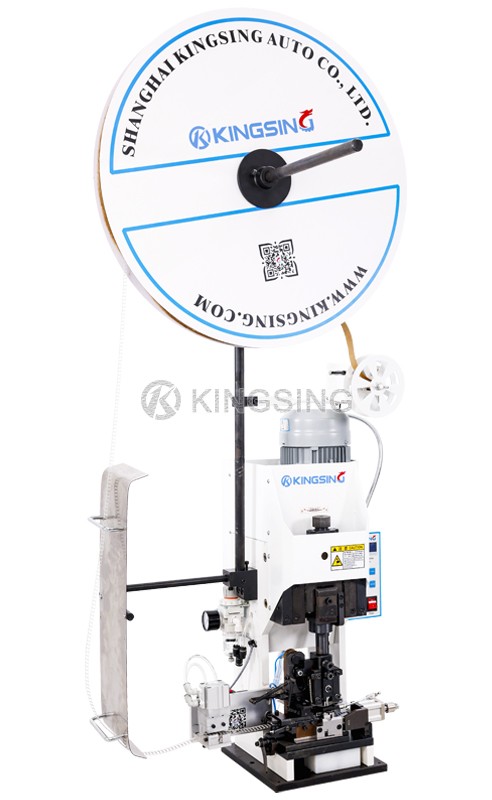

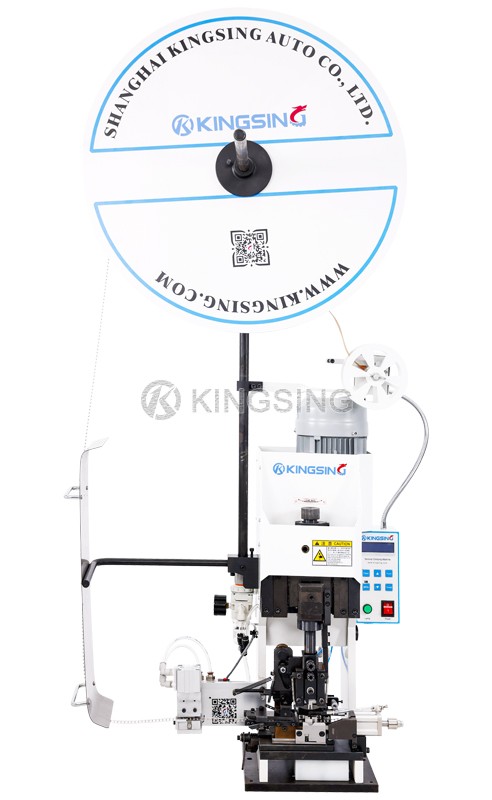

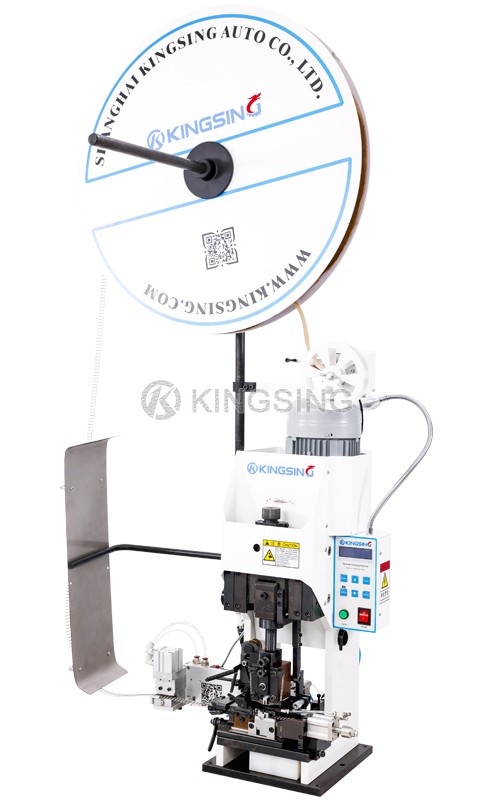

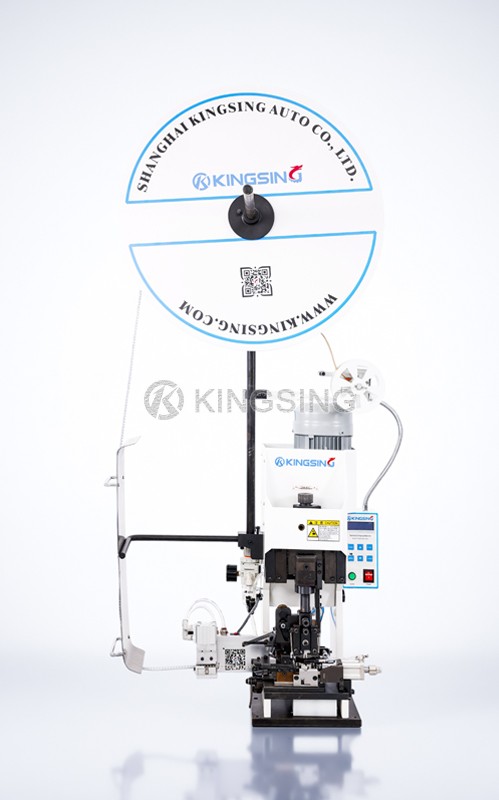

High Precision Wire Stripping and Crimping Machine

  • Model:KS-T1062S
  • Net. Weight:
  • Dimension:
  1. This is a high-precision wire stripping and crimping machine that integrates the functions of stripping and crimping terminals. The whole machine has precise workmanship, and the crimping accuracy can reach 0.03mm. The top is equipped with a knob for adjusting the stroke, which can be used for high-precision adjustment of the crimping stroke. The fuselage is made of solid materials and strong rigidity. It supports the optional high-precision crimping force monitor. The specially designed hanger is conducive to the installation of a high-sensitivity hanger-type crimping force sensor. It can automatically alarm when the crimping force is abnormal.

  2. High versatility, suitable for crimping various cross-feed terminals. The crimping applicator adopts standard OTP card products, which is easy to replace. When crimping different terminals, you only need to replace the corresponding crimping applicator. The default crimping stroke is 30mm, and a model with a stroke of 40mm can also be customized, and the use of European applicators and other special applicators is supported.

  3. Driven by a variable frequency motor, the motor only starts to work when crimping, the noise is smaller than the traditional crimping machine, and it saves power. There is a counter on the control panel, and the crimping speed and crimping force can also be set. The whole machine is compact in structure and beautiful in appearance, which can meet various high-quality crimping needs.

Download: (1)

Applicable wire diameter: AWG32~16

Stripping length: 0~10mm

Tolerance range: 0.05-0.1mm

Applicable terminal: cross feed terminal

Crimp capacity: 2T

Crimp stroke: 30mm

Crimp motor: variable frequency motor

Start mode: foot switch start

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Power supply: 200~240V 50/60HZ

Power rating: 750W

Net weight: 85Kg

Dimensions: 350*400*720mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
