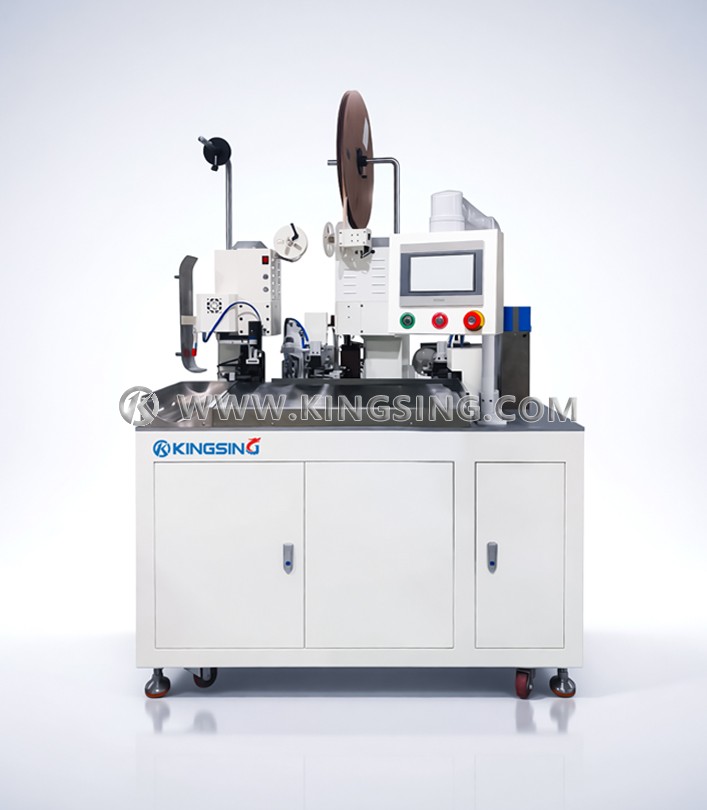

This is a fully automatic two-wire combination crimping machine with twisting and tinning functions. There are 2 sets of independent wire inlet mechanisms and 2 terminal crimping machines on the machine, which support simultaneous processing of 2 wires with different diameters and crimping 2 different terminals. After the wires are cut and stripped, one end of the two wires can be combined and crimped into one terminal, and the other two ends of the wires are twisted, tinned and crimped respectively.
Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. For example, one of the wires can be turned off and used as an ordinary twisting and tinning machine or a double-head automatic terminal machine. When replacing a terminal, only the corresponding crimping die needs to be replaced. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.
Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors, and the cutting blade adopts a positive and negative screw structure, with high stripping precision. The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop. In addition, a visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality. The standard terminal crimping machine is driven by a variable frequency motor, and a servo terminal crimping machine can also be selected.
Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.
Applicable wire diameter: AWG28~16 (0.1~1.5mm2)
Cutting length: 35~3000mm (can be customized)
Stripping length: ≤10mm (can be customized)
Cutting accuracy: ±(0.5+L*2‰) L=cutting length
Maximum pressure: 2T (3T models can be customized)
Crimping stroke: 30mm (40mm stroke model can be customized)
Applicable terminals: cross-feed terminals, direct-feed terminals, etc
Production efficiency: 1800~2000 pieces/hour
Operation interface: color touch screen
Air pressure: 0.5~0.8Mpa
Rated power: 2000W
Working voltage: 220V 50/60Hz (110V can be customized)
Net weight: 320kg
Optional configuration: long wire conveyor belt, safety shield, terminal pressure monitor, visual inspection system, servo terminal machine, computer industrial control system
