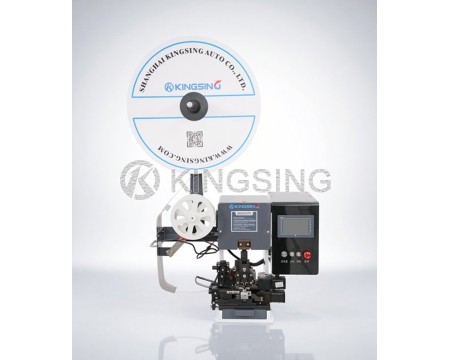

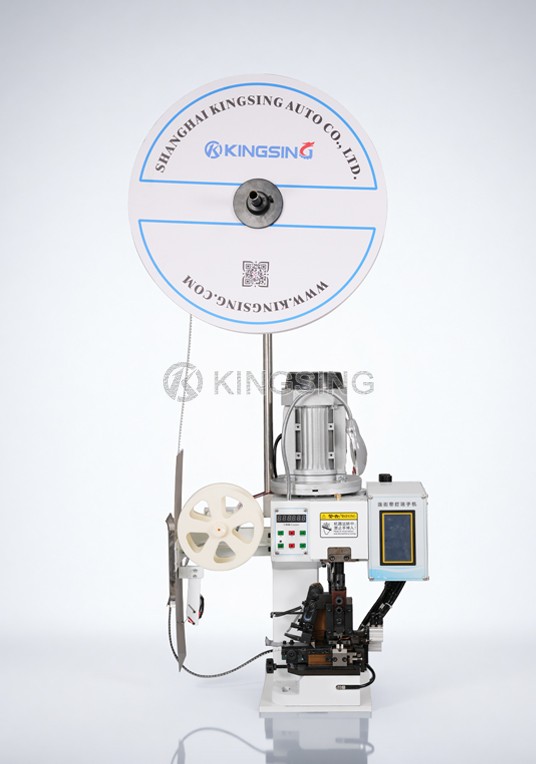

Cross-feed Terminal Stripping and Crimping Machine

  • Model:KS-T200H
  • Net. Weight:
  • Dimension:
  1. This is a stripping and crimping machine. The body is integrally formed of ductile iron, with strong rigidity and high precision. The biggest advantage of this machine is that it adopts the crimping die with OTP bayonet, which supports quick replacement. It is suitable for crimping various reel-mounted cross-feed terminals. It can also be customized for double-tape and special terminals with the tape in the middle or at the head. Dies, especially suitable for the occasions where one machine crimps many different terminals.

  2. This machine integrates the functions of wire stripping and crimping terminals. The operator only needs to put the wire end into the jig and lightly step on the foot switch to complete the action of stripping wires and crimping terminals, which reduces the process flow and can effectively save labor and improve product consistency.

  3. The crimping motor adopts frequency conversion motor for precision control, which has the characteristics of low noise, low power consumption, fast speed and high precision. The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically blown away by the blowing device, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG32~16

Stripping length: 0~10mm

Tolerance: 0.05-0.1mm

Applicable terminal: cross feed terminal

Crimp capacity: 2T

Crimp stroke: 30mm

Crimp motor: variable frequency motor

Start mode: foot switch start

Production efficiency: 1000~2000 pieces/hour

Air pressure requirement: 0.4~0.6Mpa

Working voltage: 200~240V 50/60HZ

Rated power: 750W

Net weight: 85Kg

Dimensions: 450*420*710mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
