This semi-automatic soldering machine is engineered for high-precision electronics manufacturing, ideal for mixed circuit boards, heat-sensitive components, and delicate devices requiring accurate post-SMT soldering. Designed to overcome the limitations of traditional reflow and wave soldering, it ensures reliable results in demanding assembly environments.
Supporting both point and drag soldering with multiple program storage slots, it adapts effortlessly to diverse product types. Its spring-damping micro-impact soldering iron minimizes pressure on PCBs, greatly reducing the risk of component damage during operation. Commonly used in PCB wire soldering, charger plug assembly, connector soldering, DC terminal tinning, and LED strip manufacturing.
Equipped with intelligent temperature control, rapid heating, and stable thermal performance, the system delivers consistent results across various production needs. Built on a durable all-aluminum die-cast frame and driven by a high-precision multi-axis linkage motion system with stepper motors, it achieves exceptional repeatability and high-speed operation.
Powered by an advanced control architecture, the machine ensures fast processing, instant response, and smooth motion control for complex tasks. An automatic tin-feeding system guarantees precise solder delivery, minimizing bridging, while the integrated hot-air cleaning system keeps iron tips residue-free—enhancing thermal stability and extending service life.
| Model | KS-S901A | KS-S901B | KS-S901C |
|---|---|---|---|
| Picture |
|
|
|

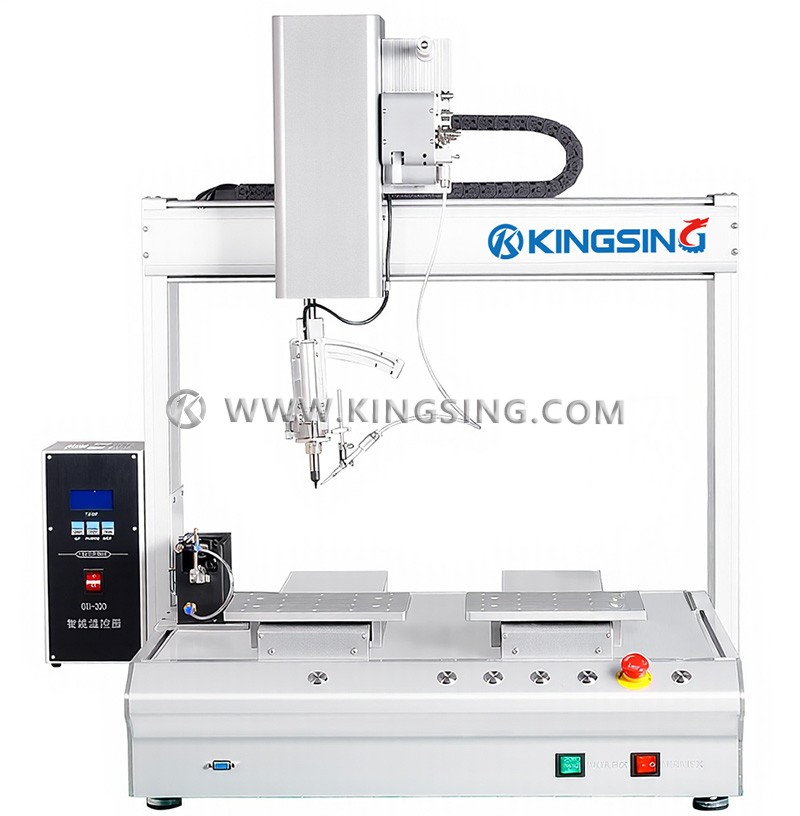

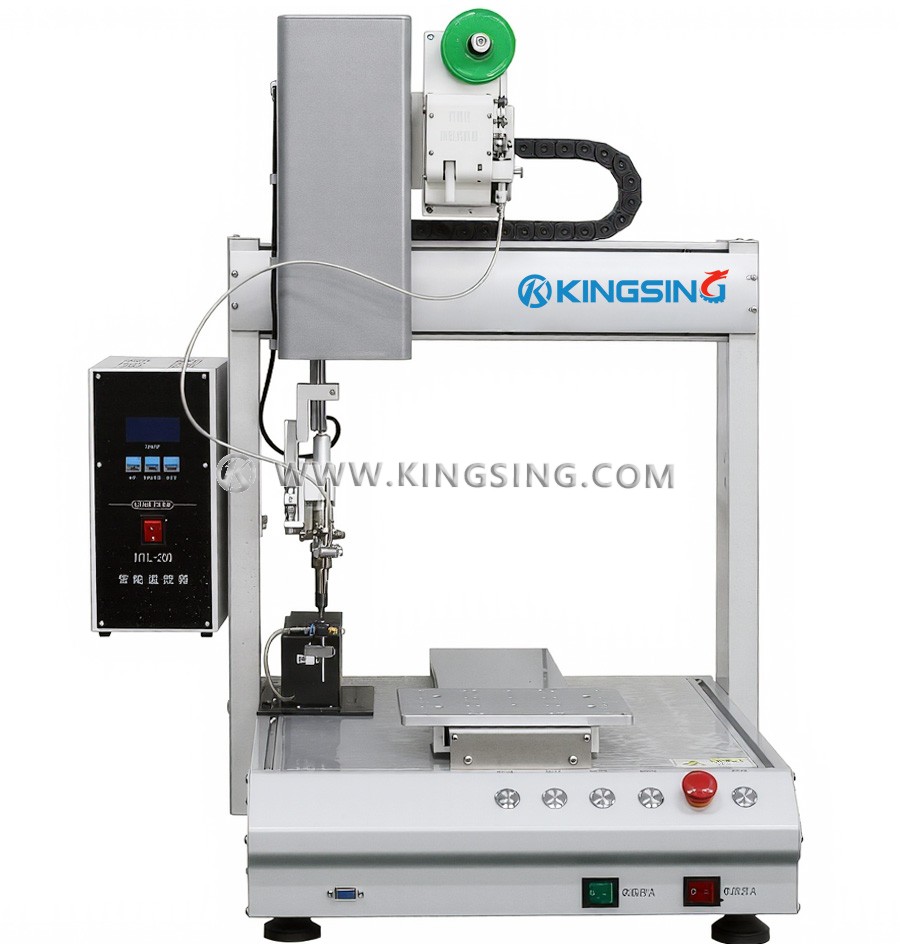

| Y-Axis Quantity | 1 (Single Station) | 2 (Dual Station) | |

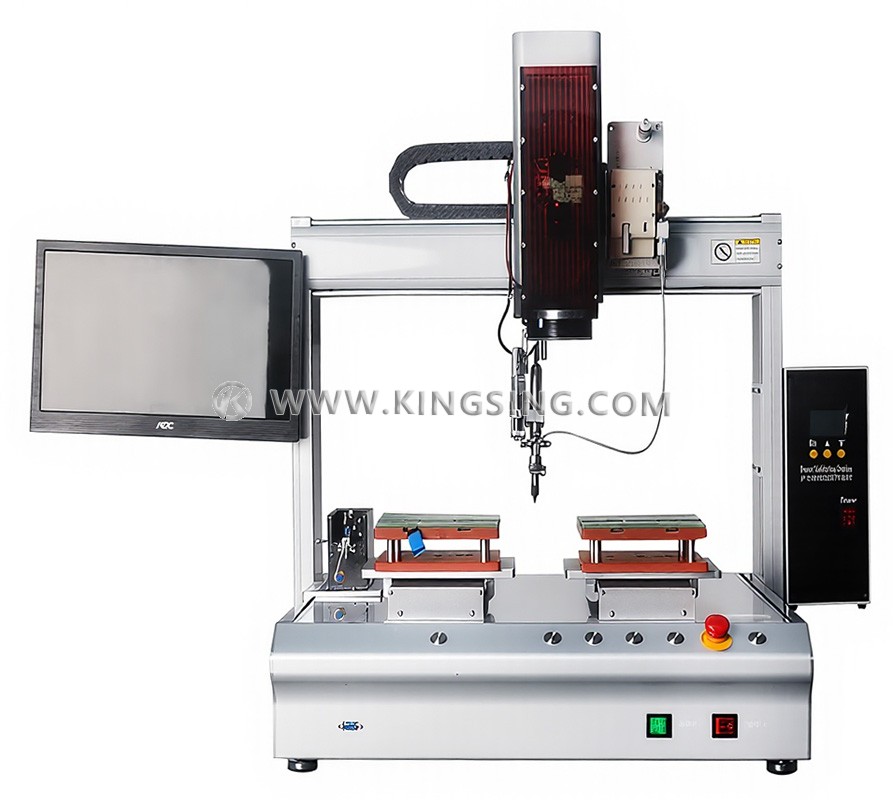

| CCD Vision System | None | None | Available |
| XYZ Axis Travel | 300×300×100 mm (customizable) | 500×300×100 mm (customizable) | |
| R-Axis Rotation | ±360° (optional) | ||
| XY Translation Speed | 0–800 mm/s | ||
| Repeat Positioning Accuracy | ±0.02 mm | ||
| Solder Wire Diameter | Ø0.3–1.0 mm | ||
| Temperature Tolerance | ±2 °C | ||
| Temperature Range | 50–500 °C | ||
| Max. Load | 10 kg | ||
| Program Storage | Max. 999 programs | ||
| Soldering Time | 1.2–2 seconds | ||
| Power Supply | AC 220V 50/60Hz (customizable) | ||
| Optional Configurations | Safety Guard Cover, Safety Light Curtain, Tooling Fixture, Fume Extraction and Purification Unit | ||
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
