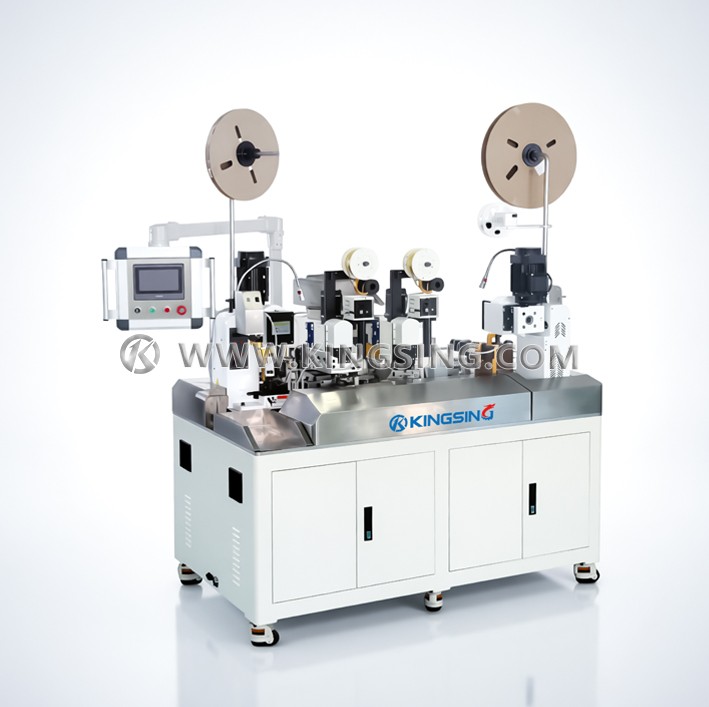

Fuse Automatic Copper Tape Splicing Machine

  • Model:KS-C220L
  • Net. Weight:
  • Dimension:
  1. This machine is mainly used for the connection of resistance wires, fuses and other horizontal electronic components and wires. It can feed 2 wires at the same time. Each wire has an independent wire feeding mechanism and wire cutting and stripping mechanism. The diameter of the two wires can be different , and the machine can cut the wire according to the specified length and strip the wire at both ends, and automatically complete the mutual riveting of the resistance wire pin and the wire, and the other end of the wire can be crimped. The machine contains 2 sets of terminal machine crimping stations, so Different terminals can be crimped on both sides.

  2. The resistance wire can be installed in a coil or in bulk. The bulk resistance wire can be automatically fed through the vibrating disc, and the resistance wire pin can be automatically cut to the required length. The pins on both sides of the resistance wire are spliced by two independent copper tape machines, and the splicing height can be set independently by the two copper tape machines.

  3. The copper tape splicing mechanism is driven by a high-precision servo motor, and the copper tape machine is integrally formed with ductile iron. The whole machine has strong rigidity and high crimping precision. In addition, a terminal pressure monitor can be selected to monitor the change of the pressure curve of each crimp in real time. When the pressure is abnormal, it can automatically alarm and stop to ensure product quality.

  4. Splicing wires with copper tapes is cheaper than traditional soldering or terminal crimping, economical and environmentally friendly. There is no waste in the splicing process of copper tapes. The copper tapes have been treated with special texture.The spliced product has strong pulling force and stable and reliable quality. With its excellent performance, this machine has become a sharp weapon in the resistance wire connecting wire industry.


Maximum pressure: 2T

Applicable wire: AWG28~16

Cutting length: ≥45mm

Peeling length: 0~16mm (can be customized)

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.5mm

Crimping accuracy: ±0.05mm

Production efficiency: 800~1000 pieces/hour of two-headed terminals, 1200~1500 pieces/hour of single-headed terminals

Operation interface: color touch screen

Detection function: wire knotting, lacking wire, presence or absence of terminals, air pressure, etc.

Optional functions: pressure monitor, safety shield, etc.

Air pressure requirement: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Rated power: 2500W

Net weight: 800kg

Dimensions: 1800*1700*1500mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
