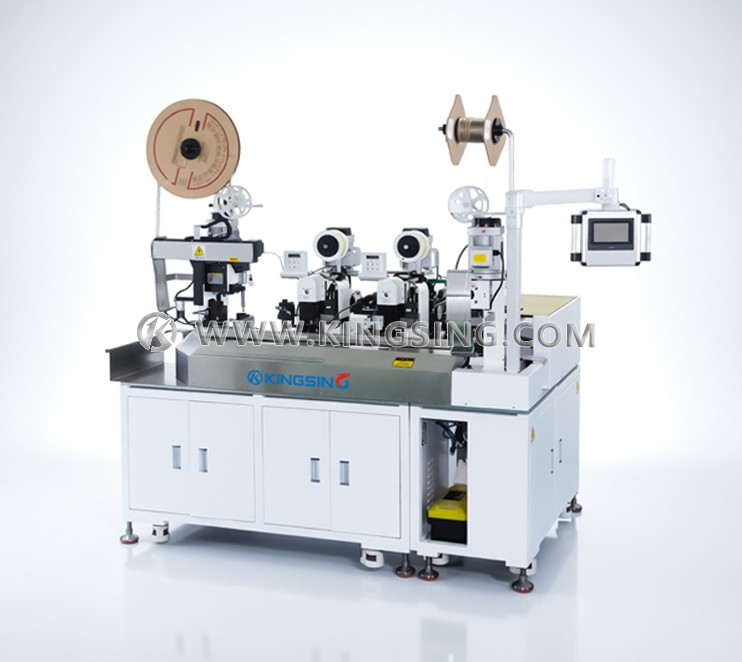

Automatic Double-head Splicing and Single-head Casing Copper Tape Machine

  • Model:KS-C221L
  • Net. Weight:
  • Dimension:
  1. This is a fully automatic copper tape splicing terminal machine, which is mainly used for connecting horizontal electronic components such as resistance wires and fuses with wires. It can feed 2 wires at the same time, and each wire has an independent wire feeding mechanism and wire cutting and stripping. mechanism. The wire is cut according to the specified length and stripped at both ends, and the mutual splicing of the resistance wire and the wire is completed automatically. The other end of the wire can be crimped with a terminal, and can automatically wear a sleeve on the wire, wear the sleeve and make a terminal. It can also be turned off in the program.

  2. The resistance wire can be installed in a coil or in bulk. The bulk resistance wire can be automatically fed through the vibrating disc, and the length of the resistance wire pin can be automatically cut according to the required size. The pins on both sides of the resistance wire are spliced by two independent copper tape machines, and the two wires are also processed by a separate feeding mechanism and stripping mechanism, so the diameters of the two wires can be different. Two servo-type The splicing height can be set individually for the copper tape machine.

  3. The copper tape splicing mechanism is driven by a high-precision servo motor, and the copper tape machine is integrally formed with ductile iron. The whole machine has strong rigidity and high crimping precision. In addition, a terminal pressure monitor can be selected to monitor the change of the pressure curve of each crimp in real time. When the pressure is abnormal, it can automatically alarm and stop to ensure product quality.

  4. Splicing wires with copper tapes is cheaper than traditional soldering or terminal crimping, economical and environmentally friendly. There is no waste in the splicing process of copper tapes. The copper tapes have been treated with special texture.The spliced product has strong pulling force and stable and reliable quality. With its excellent performance, this machine has become a sharp weapon in the resistance wire connecting wire industry.

KINGSING


Maximum pressure: 2T (3T models can be customized)

Applicable wire: AWG24~16

Cutting length: ≥45mm

Stripping length: 0~16mm (can be customized)

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Casing length: ≤100mm

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.5mm

Crimping accuracy: ±0.05mm

Production efficiency: 800~1000 pieces/hour

Operation interface: color touch screen

Detection function: wire knotting, missing wire, presence or absence of terminals, air pressure, etc.

Optional functions: pressure monitor, safety shield, etc.

Air pressure requirement: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Rated power: 2500W

Net weight: 850kg

Dimensions: 1800*1800*1500mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
