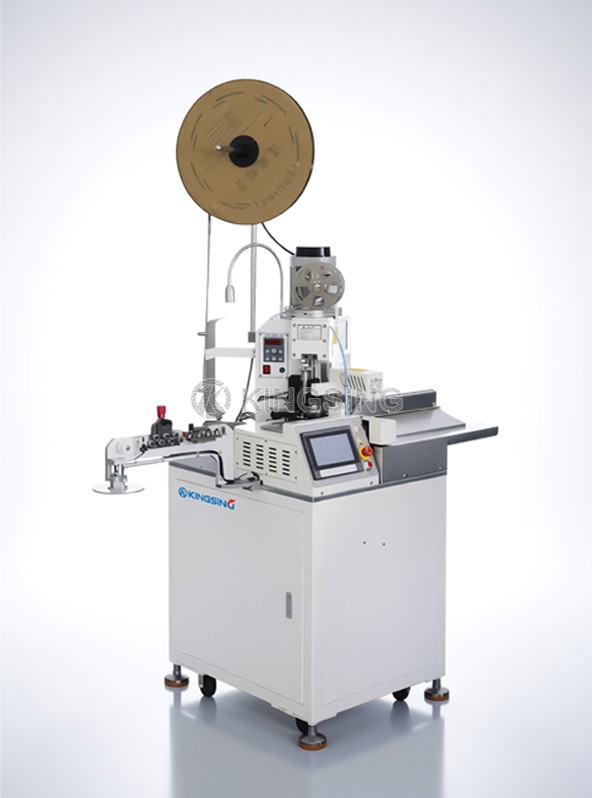

Automatic Wire Stripping Twisting & Terminating Machine

  • Model:KS-T556
  • Net. Weight:
  • Dimension:
  1. This is a high-precision single-sided automatic crimping machine, which can cut the wire to a fixed length, strip and twist the wire at one end, and crimp the terminal at the other end. The specially designed tool holder structure enables this machine to process ultra-short wires, the shortest of which can crimp terminals with a total length of 20mm. It is also suitable for processing long wires, and the maximum length of cutting wires can reach 10 meters.

  2. The cable inlet is equipped with 2 sets of straighteners to support quick opening and closing. The wire feeding mechanism adopts 4-wheel wire feeding, which can effectively prevent the wire from slipping and ensure the accuracy of wire feeding. The gap between the wire feeding wheels can be precisely adjusted by the handle. The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping size. The default crimping stroke is 30mm. The standard OTP bayonet applicator is adopted, and a model with a stroke of 40mm can also be customized, and various European applicators can be used. It can also be equipped with a crimping force monitor to monitor the crimping force curve changes of each crimping process in real time, and automatically alarm and stop when the crimping force is abnormal.

  3. One machine can process a variety of different products. When replacing wires and terminals, it is only necessary to replace the corresponding crimping applicators and wire inlet conduits. Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as cutting length, stripping length, twisting force, crimping position and other parameters can be set in the program. The program memory function can save the processing parameters of different products into different program numbers, and the corresponding crimping parameters can be called out with one key when switching products.

Download: (1)

Applicable wire diameter: AWG28~14 (0.1~2.0mm2)

Cutting length: 20~9999mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: cross-feed terminals, direct-feed terminals, etc.

Production efficiency: 4000~5000 pieces/hour

Air pressure: 0.5~0.8Mpa

Rated power: 1800W

Working voltage: 220V 50/60Hz (110V can be customized)

Net weight: 220kg

Dimensions: 700*600*1550mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
