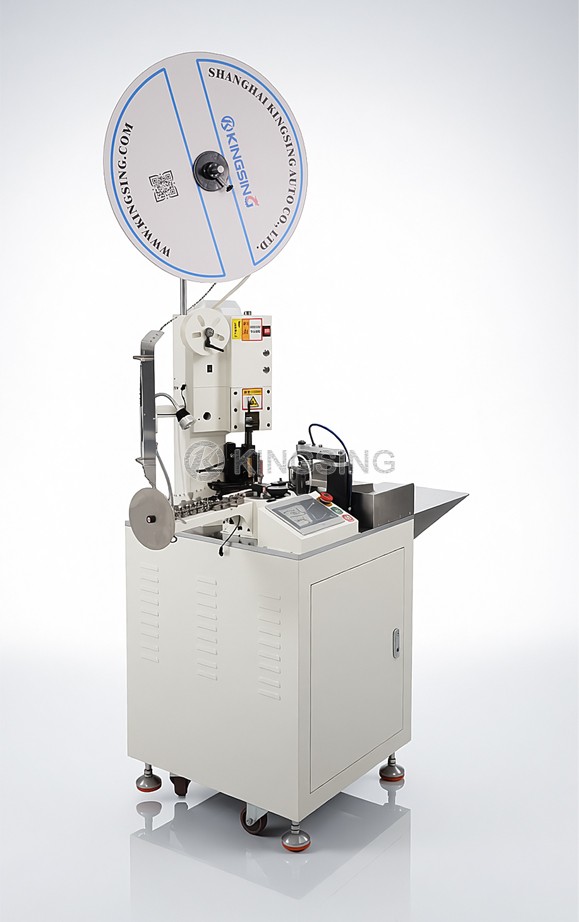

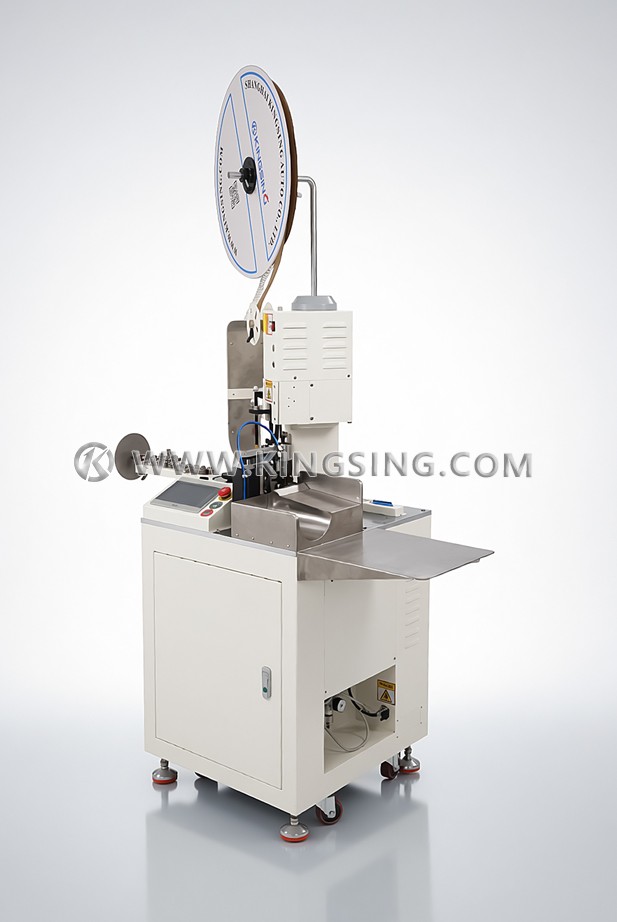

Automatic One-Sided Wire Cut Strip and Terminate Machine

  • Model:KS-T101
  • Net. Weight:
  • Dimension:

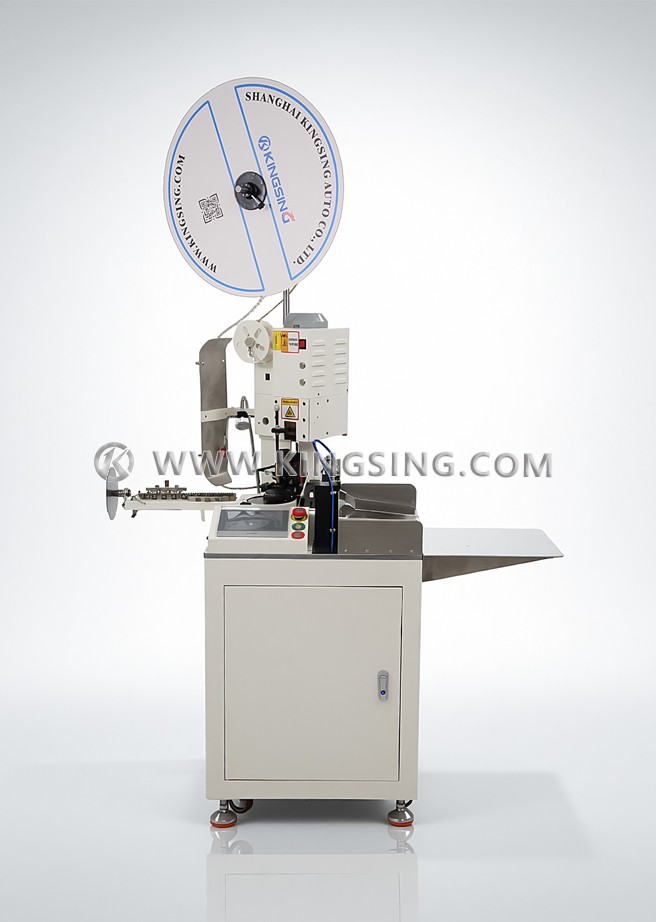

  1. This is a multi-functional 1-side automatic crimping machine, which can automatically cut the wire to a fixed length, strip the wire at one end, and crimp the terminal at the other end. This machine is not only suitable for crimping all kinds of horizontal feeding terminals and direct feeding terminals, but also suitable for crimping various bulk terminals. The bulk terminals can be automatically fed through the vibrating plate. The finished wire is taken out through the rotating clamp, and the conveyor belt can be selected when processing long wires, and the wire can be placed straight and neatly into the receiving tray. In addition, the function of automatically inserting the insulating sheath can also be selected. The insulating sheath can be automatically fed through the vibrating plate, and an insulating sheath is automatically inserted into the wire rod in advance, and the sheath is pushed onto the terminal after the crimping of the terminal is completed.

  2. The terminal machine is integrally formed of ductile iron, with strong rigidity and stable crimping dimensions. The crimping stroke of the terminal machine is 30mm by default, using a standard OTP bayonet mold, and a model with a stroke of 40mm can also be customized, and various European molds can be used. The standard configuration of the terminal machine is driven by a variable frequency motor, and a higher-precision servo crimping machine can also be selected. In addition, a terminal pressure monitor can also be selected to monitor the pressure curve change of each crimping process in real time. When the pressure is abnormal, it will automatically alarm and stop to ensure product quality.

  3. One machine can process a variety of different products. When replacing wires and terminals, it is only necessary to replace the corresponding crimping dies and wire inlet conduits. Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as cutting wire length, stripping length, crimping position can be set in the program. The program memory function can save the processing parameters of different products into different program numbers, and the corresponding crimping parameters can be called out with one key when switching products.

Download: (1) (2) (3)

Applicable wire diameter: AWG28~14 (0.1~2.0mm2)

Cutting length: 40~9999mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Maximum pressure: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: horizontal feed terminals, direct feed terminals, etc.

Production efficiency: 4000~4500 pieces/hour

Air pressure: 0.5~0.8Mpa

Rated power: 1800W

Working voltage: 220V 50/60Hz (110V can be customized)

Net weight: 260kg

Dimensions: 900*570*1650mm

Optional configuration: long wire conveyor belt, inserting insulating sheath, terminal pressure monitor, servo terminal machine


  • In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
