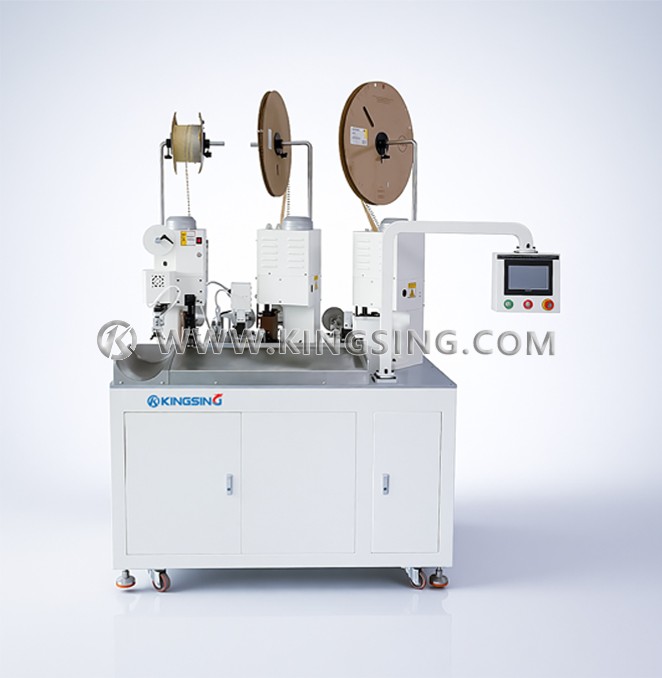

This is a fully automatic two-wire combined crimping terminal machine. There are 2 sets of independent wire entry mechanisms and 3 terminal crimping stations on the machine.Therefore, it supports the combination of two wires with different wire diameters to crimp three different terminals.After cutting and stripping the wires, one end of the two wires can be combined and crimped into one terminal, and the other two ends of the wires can also be crimped to different terminals. The machine has a built-in rotation mechanism, and the two wires can be rotated 90 degrees after they are combined, so they can be crimped side by side, or stacked up and down.
Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. For example, one of the wires can be turned off and used as an ordinary double-head automatic terminal machine. When replacing a terminal, only the corresponding crimping die needs to be replaced. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.
The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. For example, the function of inserting heat shrink tubing can be deactivated. When replacing wires and terminals, it is only necessary to replace the corresponding crimping die and the corresponding insertion jig. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.
Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.
|KS-T307||Two-wire combined crimping, the other 2 wire ends crimping 2 types of terminals|
|KS-T3071||Four-wire combination crimping, the other 4 wire ends crimping 2 types of terminals|
Applicable wire diameter: AWG28~16 (0.1~1.5mm2)
Cutting length: 65~3000mm (can be customized)
Stripping length: ≤10mm (can be customized)
Cutting accuracy: ±(0.5+L*2‰) L=cutting length
Maximum pressure: 2T (3T models can be customized)
Crimping stroke: 30mm (40mm stroke model can be customized)
Applicable terminals: cross-feed terminals, direct-feed terminals, flag-shaped terminals, etc.
Production efficiency: 2500~3000 pieces/hour
Operation interface: color touch screen
Air pressure: 0.5~0.8Mpa
Rated power: 2000W
Working voltage: 220V 50/60Hz (110V can be customized)
Net weight: 320kg
Optional configuration: long wire conveyor belt, safety shield, terminal pressure monitor, visual inspection system, servo terminal machine, computer industrial control system
In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
