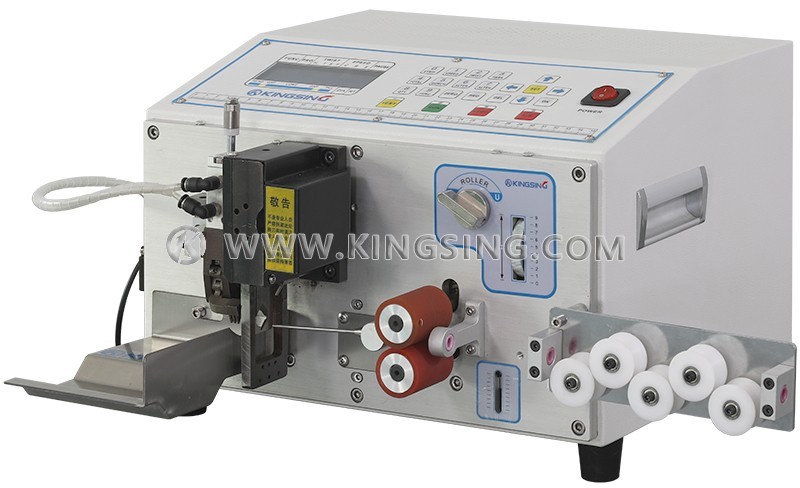

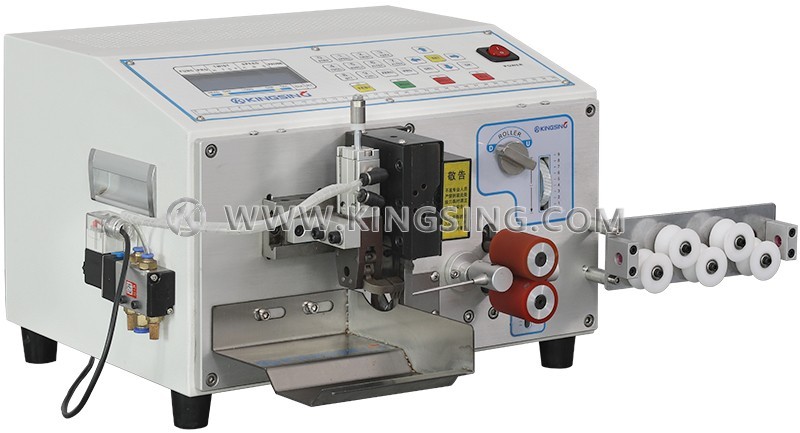

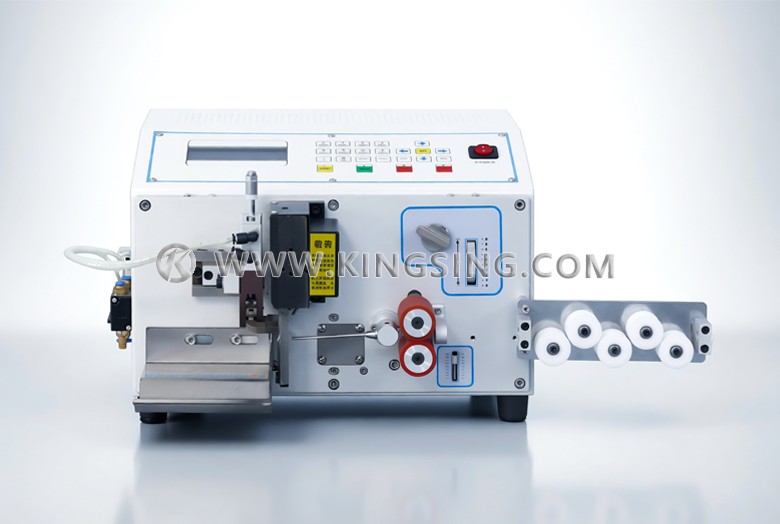

Ultra-short Wire Cutting and Stripping Machine

  • Model:KS-W604C
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This is a wire stripping machine designed for processing short wires, while also processing long wires. This machine adopts mechanical hand pulling material to replace the outlet wheel, which greatly shortens the distance between the blade and the wire clamp. The minimum length of glue remaining can reach 10mm, especially suitable for the processing of stripping both ends of short wires.

  2. The program is powerful and supports functions such as full stripping, half stripping, and middle stripping. With the program memory function, the processing parameters of different wires can be saved in different program numbers, and the corresponding processing parameters can be called out with one key when switching wires.

  3. The program interface is intuitive and easy to understand. Parameters such as cutting line length, stripping length, feed depth, retraction, and output can be freely set in the program. Functions such as long wire program, ultra-short wire program, middle stripping program, and sheath wire program can be switched at will, and one machine supports many different processing methods, which is very versatile.

  4. Support non-standard customization, our company has strong research and development capabilities, and can customize corresponding functions according to customer needs. For example, a spraying machine or a wire number hot stamping machine can be added to realize stripping while coding. It can also be equipped with a safety cover, which will automatically alarm and stop after opening the safety cover.

Download: (1)

Applicable core area: 0.1 ~ 4.0mm2(AWG28~11)

Maximum catheter diameter: Φ5.0mm

Cutting length range: 0~100m

Cutting length accuracy: ±0.002×L (L means cutting length)

Stripping length range: wire head 0~120mm, wire tail 0~20mm

Minimum glue length: 10mm

Program memory function: up to 100 groups of programs can be saved

Working voltage: 220V/50Hz

Rated power: 430W

Air pressure: 0.4~0.6Mpa

Net weight: 30kg

Dimensions: 400x410x280mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
