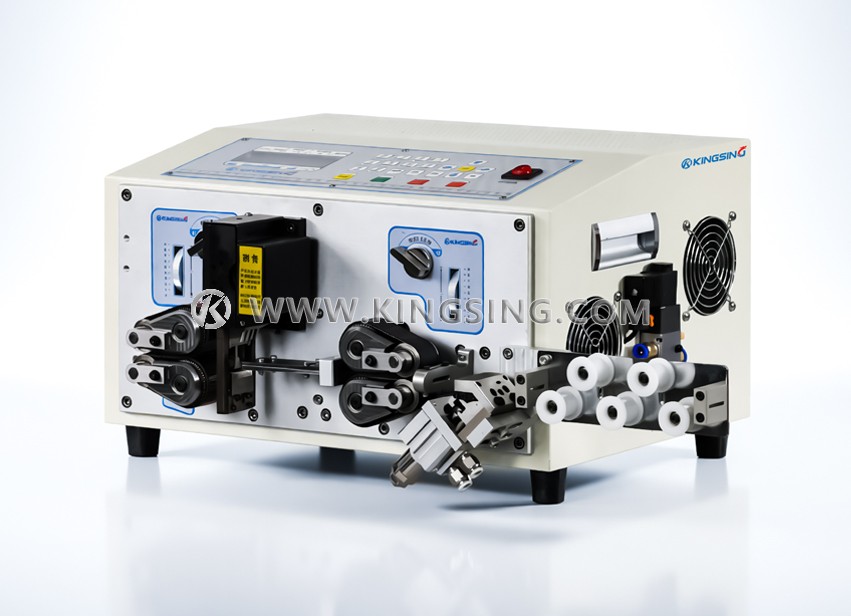

Ribbon Cable Cutting Slitting and Stripping Machine

  • Model：KS-W6093 Series
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

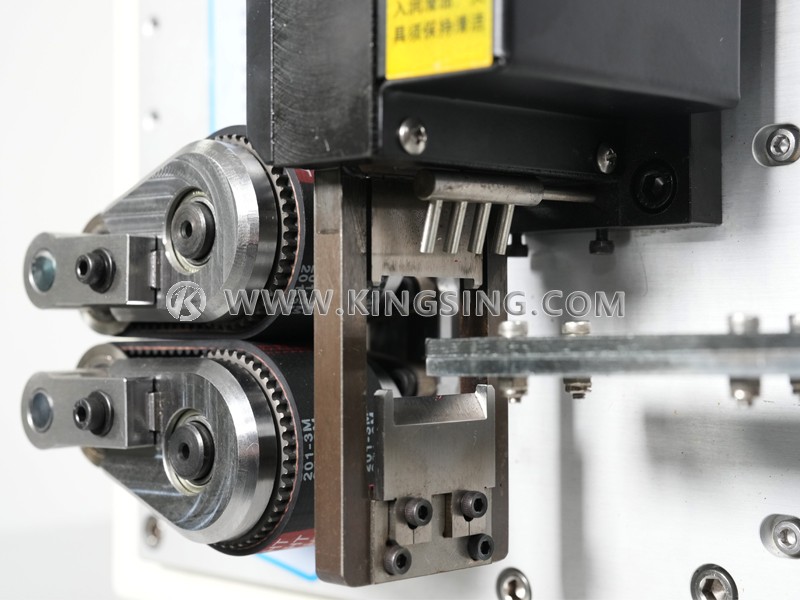

  1. This is a wire stripping machine specially designed for processing flat and double wires. The optional wire splitting mold can realize automatic cutting, stripping, splitting at both ends of the cable, and the wire splitting mold can choose punching type and marking type. This machine adopts the belt feeding method to greatly increase the contact area between the wire feeding wheel and the wire, which can prevent slippage during wire feeding and stripping, so this machine can process flat wire with more PIN numbers and wider width.

  2. The program is powerful, supporting functions such as full stripping, half stripping, and intermediate stripping. It has a program memory function, which can save the processing parameters of different wires in different program numbers. When switching wires, the corresponding processing parameters can be called out with one key.

  3. The program interface is intuitive and easy to understand. Parameters such as wire cutting length, wire stripping length, depth of feed, retraction, and output can be freely set in the program. Functions such as long wire program, ultra-short wire program, middle stripping program, and sheath wire program can be switched at will, and one machine supports many different processing methods, which is very versatile.

  4. Support non-standard customization, our company has strong research and development capabilities, and can customize corresponding functions according to customer needs. For example, spraying machines or wire number hot stamping machines can be added to realize stripping while coding; blades and conduits can be customized for processing special wires such as flat sheathed wires and double wires. It can also be equipped with a safety cover, which will automatically alarm and stop after opening the safety cover.

Download: (1)
ModelSplit wire mold typeThe main advantage
KS-W60931NoAffordable, no split wire function
KS-W60932Cylinder punchingSuitable for cables with a large number of PINs and webbed cables
KS-W60933Cylinder scribing The length of the splitted wires can be set freely, suitable for flat wires with a small number of pins
KS-W60934Electric punchingNo need for air source, use motor instead of cylinder punching and split wire

Flat wire maximum width: 25mm (maximum 20Pin)

Maximum stripping length: wire head 0~30mm, wire tail 0~30mm

Cutting length: 0~100m

Cutting length accuracy: ±0.002×L (L means cutting length)

Minimum glue length: 35mm

Program memory function: up to 100 groups of programs can be saved


Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
