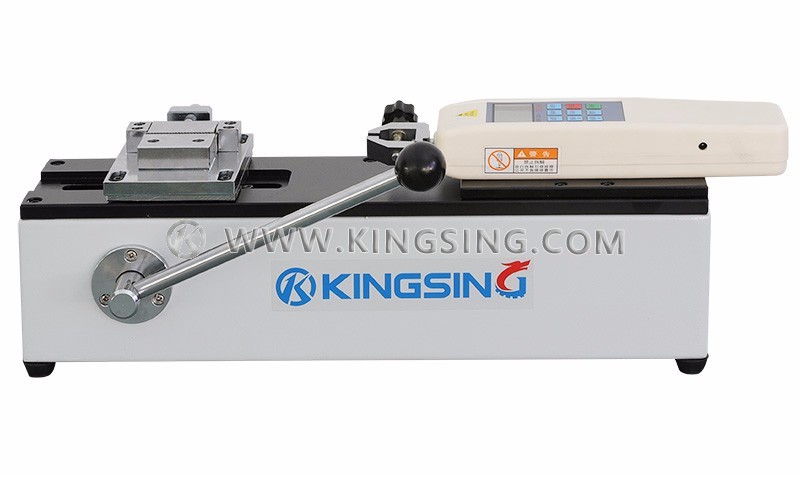

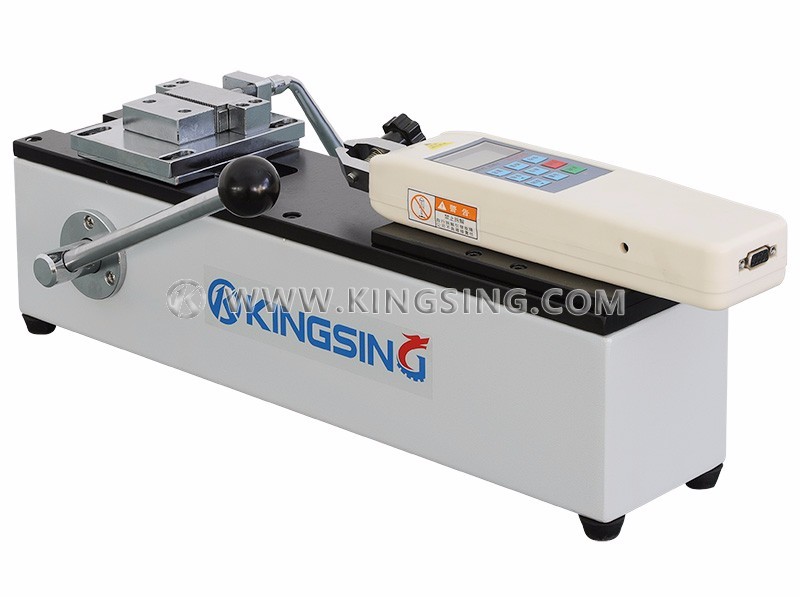

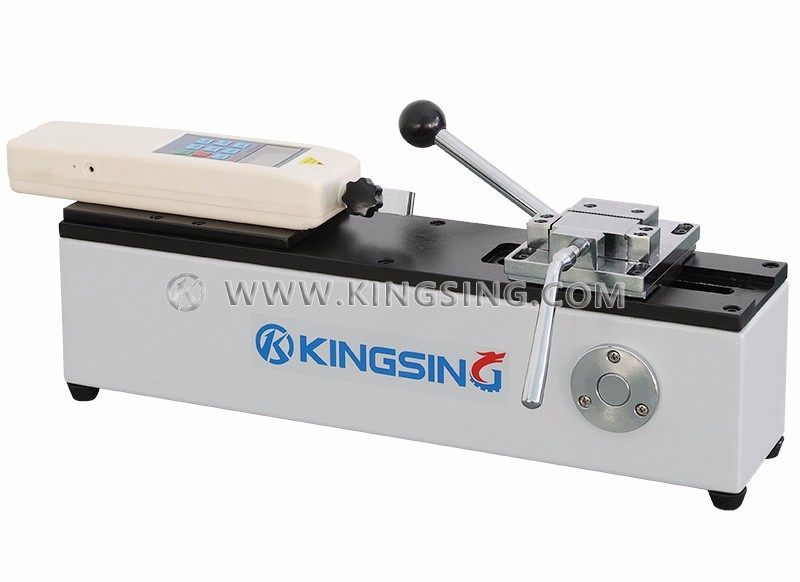

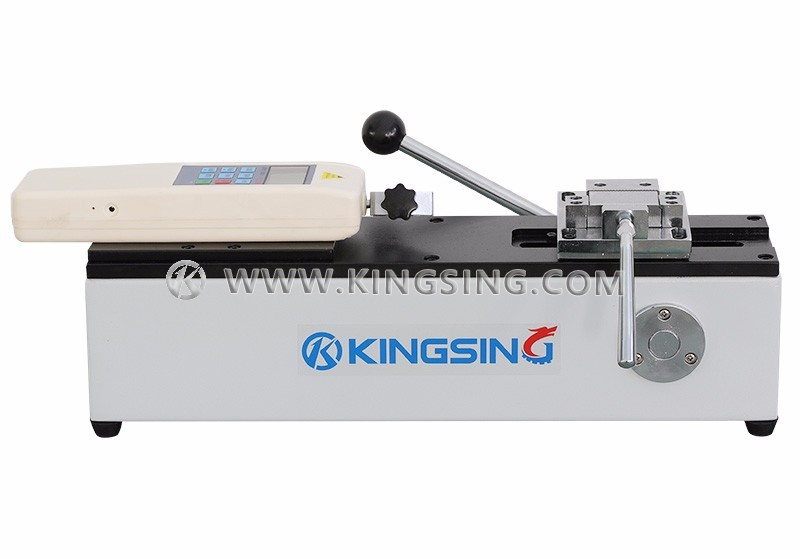

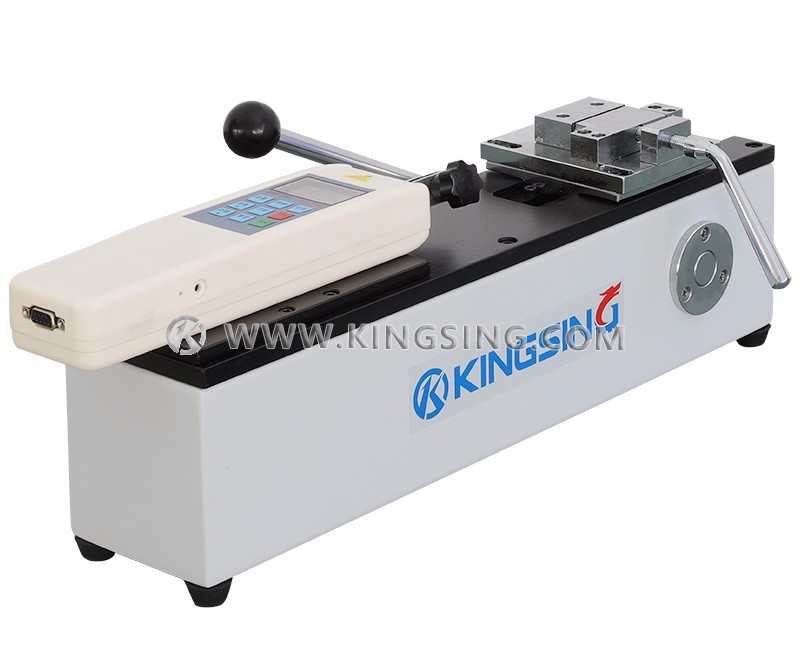

Manual Terminal Pull-off Force Tester

  • Model:KS-A510
  • Net. Weight:
  • Dimension:
  • High precision and high resolution.

  • There are three kinds of measuring unit: N (Newton), kg (kilogram) and Lb (Pound).

  • Max and Min comparison value can be set for statistical analysis. The buzzer will alarm if exceeded comparison value.

  • Data storage function. lt can store 896 groups testing value.

  • Data output function. The data can be input into computer through data line for various analyses.

  • Environmental protection. The device will automatically stop if no operation within 10 minutes.

  • Setting function of gravity acceleration----User can input the accurate value of gravity acceleration so as to make the testing and unit conversion become more accurate.

  • Peak hold function. Peak value can be kept in the machine. Peak automatic discharge function. ltmaintains peak 2 seconds and then discharge automatically.


Download: (1) (2)

Power Supply:Nickel cyanide battery(100V~220V, charging 4~6 hours)

Environment Humidity:30%~80%RH(no condensation at 40)

Sensor Structure:High accuracy sensor(built-in)

Pulling Force Range:500N

Resolution:0.01N

Accuracy:±0.5%

Unit:N,Kg,LB

Power Rating:5W

Allowable Overload:150%

Operation Temperature:0~40℃

Net Weight:9Kg

Dimension(L×W×H):450*100*140mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
