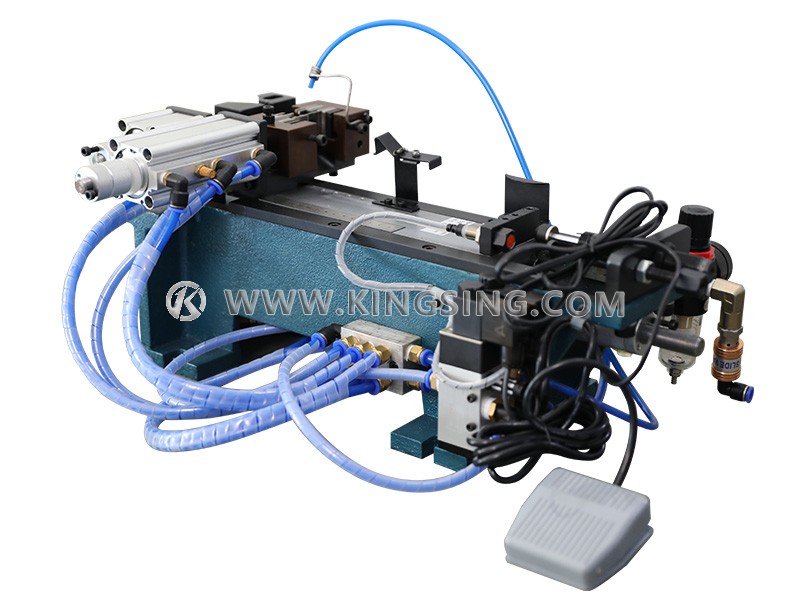

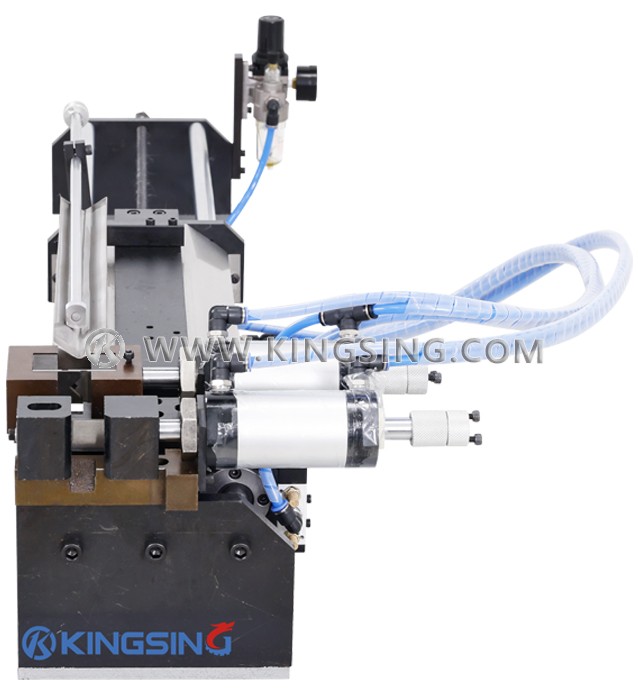

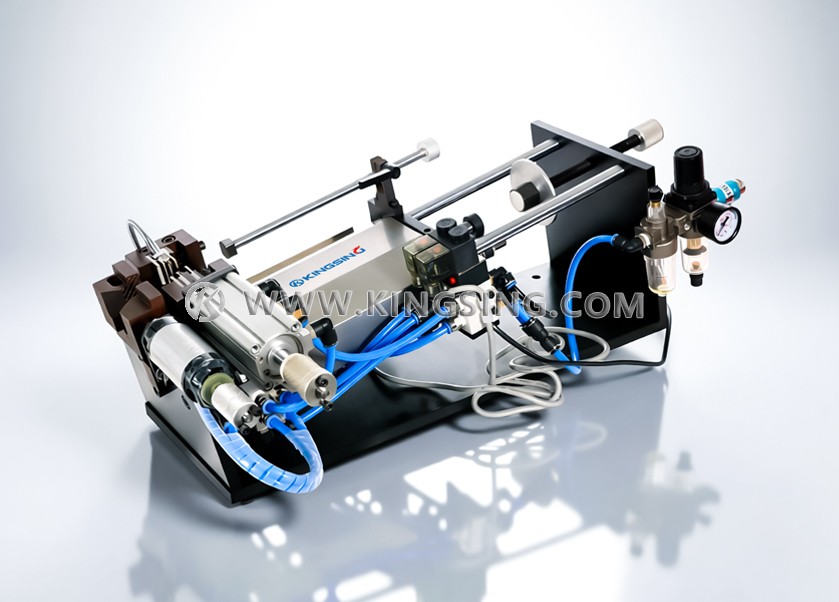

This series of pneumatic stripping machines is specially designed for processing multi-core sheathed wires, including 3 sub-models (see technical parameters for details). There are 3 sets of blades built in the machine, the round blade is used for stripping the outer sheath, the flat blade is used for stripping the core wire, and the cutter is used for trimming the core wire. The stripping of the outer sheath and the core wire is completed at one time, which greatly improves the work efficiency. The function of trimming the core wire can ensure good consistency and accurate stripping length. One machine can process a variety of wires with different diameters, just change the corresponding blades.
Model | KS-W4131 | KS-W4132 | KS-W4133 |
Applicable diameter of wire outer jacket | 3～5.5mm | 3～8.5mm | 3～13mm |
Applicable stripping length of outer jacket | 20～40mm | 20～50mm | 20～90mm |
Applicable diameter of core wire | Max.1.5mm² | Max.1.5mm² | Max.2mm² |
Applicable stripping length of core wire | 1.5～10mm | 1.5～10mm | 1.5～15mm |
Power rating | 150W | ||
Net weight | 21Kg | 25Kg | 49Kg |
Dimension(L×W×H) | 530×380×280mm | 660×395×350mm | 970×470×360mm |
Power supply | AC220V 50/60Hz | ||
Air pressure | 0.5～0.7MPa | ||
Operation temperature | 0～40℃ | ||
Environment humidity | 30%～80%RH (No condensation at 40℃) | ||
CE-Conformity: | |||
KS-W413 Series fully complies with all CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. | |||
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
