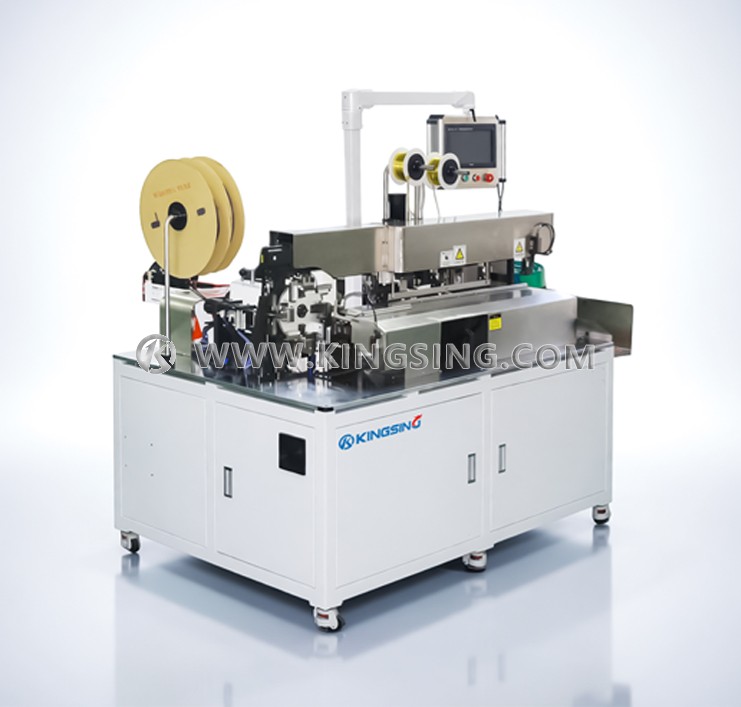

LED Light Automatic Copper Tape Splicing Machine

  • Model:KS-C302U
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for the mutual splicing of LED/neon lamps and resistor pins and wires. The LED/neon lamps are automatically fed through the vibrating plate, and the built-in diode detection mechanism can automatically distinguish the polarity. The pins are automatically formed, and the resistance wire pins can be Automatic cutting according to the required length, automatic cutting and stripping of wires, and automatic splicing of LED/neon lamps, resistance wires and wires. In addition, the function of automatic heat-shrinkable tube insertion is optional, and the heat-shrinkable tube will be heated and shrunk in place.

  2. The copper tape splicing mechanism is driven by a high-precision servo motor, and the copper tape machine is integrally formed with ductile iron. The whole machine has strong rigidity and high crimping precision. In addition, a terminal pressure monitor can be selected to monitor the change of the pressure curve of each crimp in real time. When the pressure is abnormal, it can automatically alarm and stop to ensure product quality.

  3. Splicing wires with copper tapes is cheaper than traditional soldering or terminal crimping methods, economical and environmentally friendly. No waste is generated during the splicing process of copper tapes. The copper tapes are treated with special texture, and the products after splicing are strong. The quality is stable and reliable. With its excellent performance, this machine has become a powerful tool in the LED/neon lamp splicing wire industry.

KINGSING

KINGSING

KINGSING

KINGSING

Maximum pressure: 2T

Applicable wire: AWG28~18

Cutting length: ≥45mm

Stripping length: 0~10mm

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.5mm

Crimping accuracy: ±0.05mm

Production efficiency: 800~1200 pieces/hour

Operation interface: color touch screen

Optional functions: wear heat shrinkable tube, pressure monitor, safety shield, etc.

Air pressure requirement: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Rated power: 3000W

Net weight: 1000kg

Dimensions: 1800*1100*1550mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
