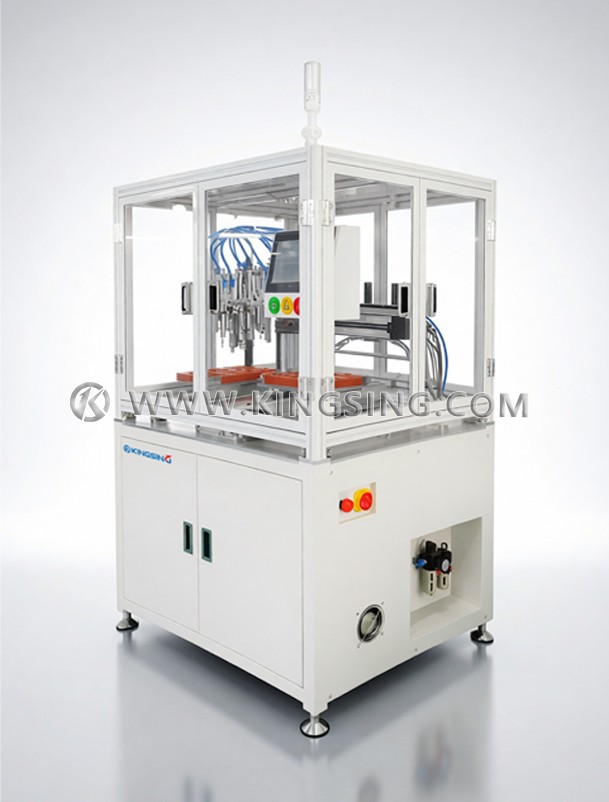

Automatic Wire Stripping Sealing and Crimping Machine

  • Model:KS-T305
  • Net. Weight:
  • Dimension:

This model is designed for

  • one side stripping and crimping,

  • another side stripping crimping plus automatic sleeve wearing function.

KS-T305 adopts high precision control system to guarantee stable and accurate performance.

With three sets of highly dynamic AC servo motor acts as the drive, the machine is strong enough to process the cross section range from 0.1mm² to 2.5mm² (AWG13 ~ AWG28), even 4mm² and 6mm² can be customized on the base of KS-T305.

The cutting striping blades are made of superior tungsten steel, and the feeding rollers are made of high flexible rubber, all the wearing parts have the feature of durable and gentle processing to the wires.

Side-feeding die and straight-feeding die are both available for processing.

If you have special die set, we can change the machine to fit your die (for example: JST, Molex, AMP and other brand die set are both customizable).

All setting and adjustment procedures can be controlled from the LCD touch screen.

All required processing parameters such as wire feeding speed, cutting length, stripping length and crimping depth can be set in and saved in the LCD touch screen.

AvailableWire Gauge: 0.08 ~ 2.5mm2 (AWG13 ~ AWG28)

CuttingLength: 70mm ~ 1500mm (longer than 800mm, suggest to install aconveyor belt

StrippingLength: Wire Head 10mm, Wire End 14mm

StrippingAccuracy± (0.002mm×Stripping Length)

CuttingAccuracy± (0.002mm× CuttingLength)

CrimpingForce: 2.0Ton

Stroke:30mm (40mm is customizable)

Display:5.7" Touch Screen

Speed:2000~3000 pcs/hour

AirPressure: 0.5MPa - 0.6MPa

PowerSupply: 220V/50Hz 110V/60Hz

PowerRating: 2200W

NetWeight: 240Kg

Dimension:1030 × 840 × 1980mm

Customized Function

1.  Designa vibration plate for loose terminals, automatic feed terminals to crimpingdie.

2.  Installa wire conveyor belt for processing long wire (such as 2 meters long wireprocessing).

3.  Add apressure monitor system to monitor each terminal's crimping force.

4.  Change themachine to fit other brand die set

5.  Developother function the customers require to implement.
