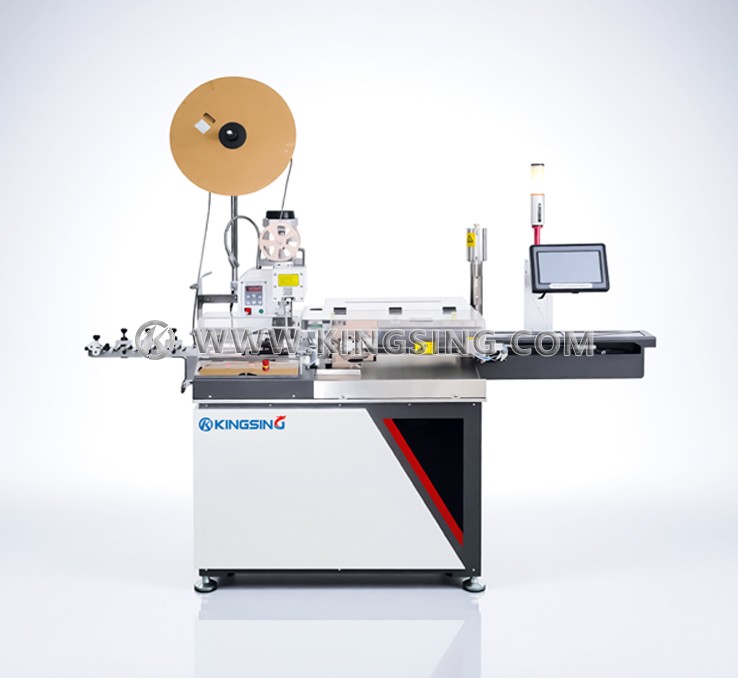

Automatic Wire Tinning Crimping & Pair Twisting Machine

  • Model:KS-W1145
  • Net. Weight:
  • Dimension:

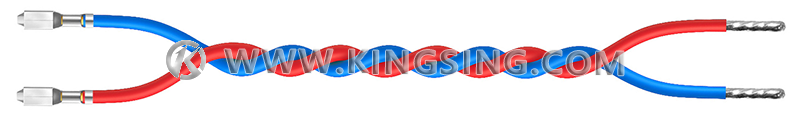

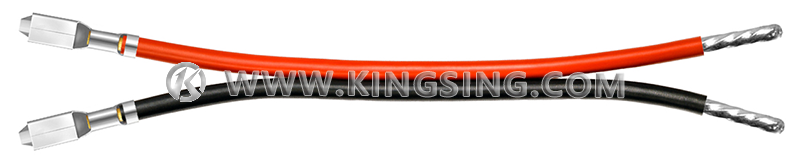

  1. This is a fully automatic wire twisting and tinning terminal machine with built-in automatic wire twisting function, which supports simultaneous processing of 4 wires, each 2 wires are automatically twisted into a group of twisted wires, and the twist distance can be set in the program. This machine integrates the functions of wire cutting, stripping, twisting, tinning, crimping terminals, twisting wires, etc. It can complete 2 sets of twisted pair products in a single cycle, and the production efficiency is high.

  2. All motors adopt high-precision servo motors, and the components are made with precision. The cutter adopts positive and negative screw structure, and the stripping precision is high. Flux and solder wire can be added automatically, and the tin depth is stable. There is an automatic smoking device next to the tin stove, which can exhaust the smoke through the pipe. The terminal machine is integrally formed of ductile iron, with strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop.

  3. Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. For example, you can turn off the twisted wire function and use it as an ordinary tinning terminal machine. When replacing a terminal, only the corresponding crimping die needs to be replaced. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  4. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Download: (1)

Applicable wire diameter: AWG32~18 (0.02~1mm2)

Cutting length: 50~600mm (can be customized)

Wire delivery method: pull wire clip

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Stripping length: ≤7mm (can be customized)

Soldering length: 0.5~7mm

Maximum pressure: 2T

Crimp stroke: 30mm (40mm can be customized)

Production efficiency: 2000~2500 pieces/hour (processing 2 groups at the same time)

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 480kg

Dimensions: 1210*770*1370mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
