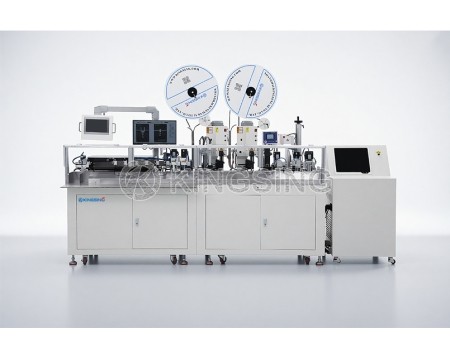

Automatic Wire Crimping & Tube Marking Inserting Machine

  • Model:KS-A212E
  • Net. Weight:
  • Dimension:

This economical double-head wire crimping and heat shrink tube insertion machine integrates comprehensive wire processing functions including wire cutting, stripping, dual-end terminal crimping, automated tube coding and insertion. The machine delivers powerful functionality at an affordable price point, making it ideal for manufacturers seeking cost-effective wire harness processing solutions.

The system features reel-mounted heat shrink tube capability that automatically cuts tubes to required lengths and applies coding through selectable methods including laser marking and ribbon printing. After wire cutting and stripping, the heat shrink tube is precisely inserted into the wire, followed by terminal crimping and automatic positioning of the tube to the designated location where it undergoes in-place heating and shrinking.

Built with modular flexible design concepts, this versatile machine easily processes various products with individually controllable functional modules. Each processing station can be activated or deactivated through programming, allowing functions like heat shrink tube insertion to be disabled when not required. Product changeovers require only replacement of corresponding crimping applicators and insertion jigs, ensuring maximum operational flexibility.

The intuitive color touch screen interface simplifies parameter setting and allows direct input of heat shrink tube coding content. Advanced program memory functionality stores processing parameters for different products in an integrated database, enabling one-touch parameter recall during product switches and significantly reducing setup time for enhanced productivity.

Download: (1)
Processing Wire Range#22~#14 AWG
Processing CapacityApprox. 2000 pcs/hour (wire length 80-100mm)
Approx. 1800 pcs/hour (ultra-fine soft wires)
Cutting AccuracyWire length<100mm: ±0.2mm + (wire length × 0.002)
Wire length ≥100mm: ±0.5mm + (wire length × 0.002)
Processing Length86mm~99999mm (middle glue retention)
Stripping LengthFront end: 0.5~8.0mm
Rear end: 0.1~10.0mm
Cutter Depth AdjustmentMaximum 5.50mm, resolution 0.01mm
Detection SystemsLow air pressure, wire presence, abnormal crimping, abnormal wire entry
Air Pressure Requirement0.5 MPa (clean and dry)
Power Supply220V 50/60Hz (customizable)
Net Weight500 kg
Dimensions (W×D×H)800×1400×1800 mm
Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
